Threshold IMT
REF HS730EU
0123
Respironics Respiratory Drug Delivery is OK) Ltd Chichester Business Park City Fields Way Tangmere. Chichester, P020 2FT UK
Tel: +1-724-387-4000Toll-Free +1-800-345-6443www.philips.com/respironics
Threshold IMT positive expiratory pressure device
Instructions for use only.
For single patient use only. Make sure there are no foreign objects in the mouthpiece or the device.

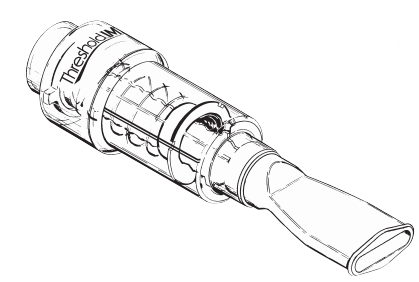

Contents: Threshold IMT inspiratory muscle trainer Instructions for a use Training diaryTurn the control knob (Fig. 1 A) to align the red edge of the pressure indicator (Fig. 1 B) to the setting prescribed by your physician. For additional leverage attach the mouthpiece and rotate to adjust. A higher number equals greater effort. Attach mouthpiece firmly.Put nose clip on and breathe through your mouth (Fig. 2).Seal lips around the mouthpiece, and inhale deeply (Fig. 3). When air flows through the device, the valve is open.Continue inhaling and exhaling without removing the device from your mouth.Initially limit your training time to 10 to 15 minutes a day (or as directed by your physician). Gradually increase training time to 20 to 30 minutes a day, or two 10 to 15- minute sessions a day. Try to train at the same time each day, a minimum of five days per week.Important
Training should be consistent and ongoing. Record readings in the Training Diary.
Cleaning instructions
Wash in warm soapy water after each use. Flush all parts with clear water. Shake out excess water and air dry.Indications for use
Threshold IMT is an inspiratory muscle trainer that will help you increase respiratory muscle strength and endurance through conditioning. ANY CHANGE IN THE SETTING IS DONE ONLY AS DIRECTED BY YOUR PHYSICIAN. IF YOU GET VERY TIRED DURING OR AFTER YOUR TRAINING DO NOT BOIL OR HEAT. SESSION, FEEL OUT OF BREATH, OR NOTICE YOUR PULSE RATE INCREASE DRAMATICALLY, STOP TRAINING AND NOTIFY YOUR PHYSICIAN.
Note to physicians and physiotherapistsThe pressure load for inspiratory muscle training should be based on the patient’s respiratory muscle strength, which is determined by measuring maximal inspiratory pressure (PIMAX) with a manometer. PI MAX is the largest negative pressure a patient can generate during inhalation. The recommended pressure load is 30% of the patient’s PIMAX. However, initiating training at a lower pressure load may be necessary in some patients. The pressure load should be increased as the patient’s inspiratory muscle strength improves.
Training diary
T Time of day you trainM Length of training in minutes
The threshold is a trademark of Koninklijke Philips N.V. and its affiliates. All rights reserved.© 2017 Koninklijke Philips N.V. All rights reserved.PN 1108746 R03
