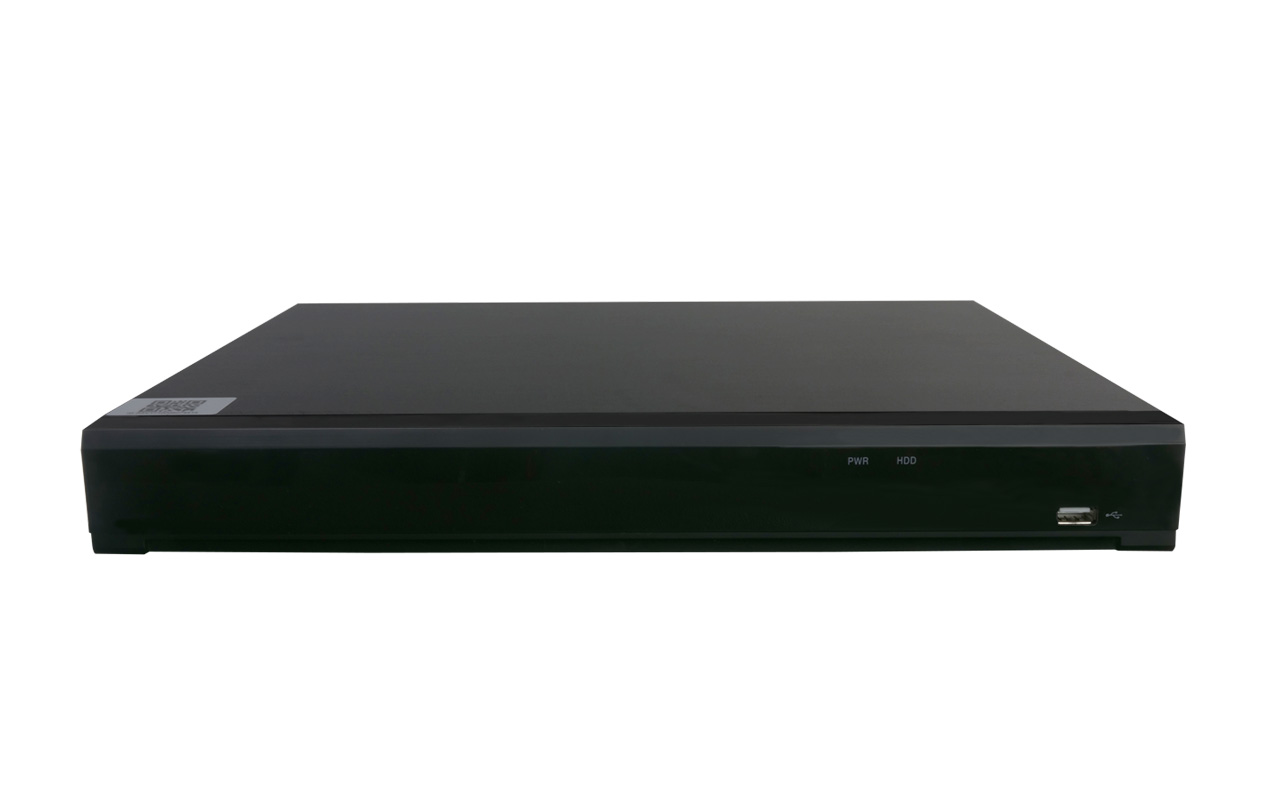

pimfg 24 Channel H.265 Hybrid DVR
KEY FEATURES
- Supports cameras up to 8MP (4K)
- H.265 compression
- 24 channels (16 analog + 8 IP)
- Up to 2 SATA drives
- Audio Inputs / Outputs
- Alarm terminals
SPECIFICATIONS
Video Compression H.265 / H.264Video System NTSC / PALOperating System Linux (embedded)Analog Video (I/O) 16CH inputs / VGA and HDMI outputDisplay Resolution Analog: 8MP (15fps) 5MP (20fps) 4MP / 3MP / 1080p / 720p / 960H (30fps) IP: 4MP / 3MP / 1080p / 720p
Display Features 1/4/6/8/9/10/13/14/16/S.E.Q.IP Recording Bandwidth 64MbpsMaximum Output Bandwidth 128MbpsRecording Speed Continuous / Manual / Motion DetectionNetwork Type LAN, DHCP, DDNSHDD Interface 2 SATA HDDsMultiplex Operation Live display, record, playback, backup and networkUSB 1 x USB 3.0, 1 x USB 2.0 (For mouse and backup / upgrade)Sensor & Alarm 16 inputs / 1 outputPTZ Control Yes (RS485)Mobile App iOS / AndroidVGA / HDMI 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 1680×1050, 1600×1200, 1900×1200, 2560×1440, 3840×2160Power Supply DC 12V / 5ADimensions (W x D x H) 14.88″ x 13.39″ x 1.97″ (378x340x50mm)Working Temperature -10°C~+55°C (14°F – 131°F)Working Humidity 10%~90%
