User Manual
13 ft. x13 ft. One Push Gazebo
Setting Up the Canopy

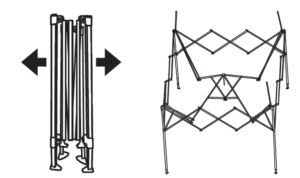

OPENING THE CANOPY FRAME
- With two persons on the diagonal ends ,lift and partially pullthe canopy frame apart.Note: At this step do not press the center up yet.

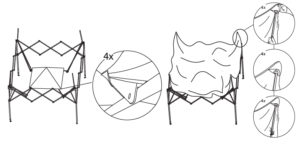

ATTACHING THE CANOPY
- Unfold the large canopy top and place it over the open frame.
Be sure the neckband of the large - Unfold the small canopy top and place it over the open frame.Attach the four canopy corners to the frame top.
- canopy is totally under the small canopy top.Attach the four canopy corners to the awning poles,
Be sure the neckband of the large
LO CKING THE FRAME
- Un der the canopy, place one hand on the upper frame and use the otherhand to push the central hub straight up until it clicks into the central pole.
- Finish attaching the canopy top inside the canopy frame using the Velcro loops.
hand to push the central hub straight up until it clicks into the central pole.
SECURING THE CANOPY IN PLACE

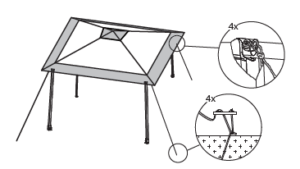

- Secure the ropes through the metal rings and havethe proper tension by adjusting the plastic adjusterson the ropes.
the proper tension by adjusting the plastic adjusterson the ropes.
SECURING THE CANOPY IN PLACE
- Secure the ropes through the metal rings and havethe proper tension by adjusting the plastic adjusterson the ropes.
the proper tension by adjusting the plastic adjusterson the ropes.Taking Down the Canopy
REMOVING THE STAKES AND RETRACTING THE LEGS
- Pull up all stakes from the ground.

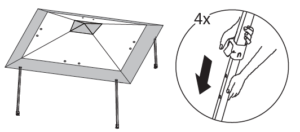

- Press the push button on each leg and retractthe legs to their original height.
UNLOCKING THE CANOPY

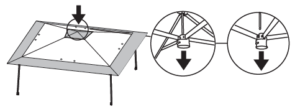

- Go under the canopy, press the Red lock button.Pull down the central hub until it is separatedfrom the central pole.
Pull down the central hub until it is separatedfrom the central pole.

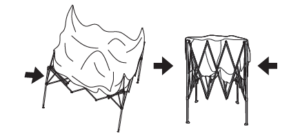

FOLDING THE FRAME
- Lift one leg of the frame until the two neighbouringlegs are raised off the ground. Push inward untilthe frame is fully closed.
legs are raised off the ground. Push inward untilthe frame is fully closed.PACKING THE CANOPY IN THE STORAGE BAG
- With the canopy feet facing the rollers, slidethe wheeled storage bag over the closedcanopy frame.
- Close the zipper on the wheeled storage bag..
the wheeled storage bag over the closedcanopy frame.Spare Parts
Note: Please refer to the Reference NO. and contact the aftersales service team if any part ofyour canopy needs to be replaced under warranty.
