Portable Laser Measure
Product Overview
Main Parameters
- Product type Portable laser measure
- Unit m/in/ft
- Operating temperature -5’C-40’C
- Storage temperature -20°C-60°C
- Endurance 180mAh/About 3,000 times
- Measuring range 0.03-40m
- Laser type Class 2. 620670nm,<lmw
- charging method DCSV <0.2A
Typical:
Refers to the strong reflection ability of the laser irradiation area (such as white painted walls), the background illumination is dark and the working temperature is 15 °C-35 °C. At this time, consider the influence of an error of plus or minus 0.05 mm/m.
Unfavorable conditions:
Refers to the weak reflection ability of the laser irradiation area (such as black cardboard, polished tiles), strong background illumination an -d operating temperature of -10 ° C to 45 ° C. At this time consider the influence of an error of plus or minus 0.15 mm/m.
Point of operation
- The range finder cannot be moved during measurement. should be placed on a fixed support surface.
- The laser reflection port and the receiving lens cannot be blocked during measurement
- Based on physical principles, errors can occur when measuring on specific surfaces of objects, such as tra -nspa rent surfaces , reflective surfaces, porous surfaces
Operation Method
On/Off:
Long press for about 1 seconds
Long press for about 5 seconds or 45 seconds without operation automatic shutdown
Measurement:
Single short-twist press. starts measuring again to get the measurement data
Switch starting point:
Long press for 3 seconds in the power on state
Continuous measurement:

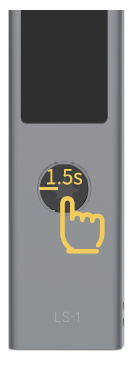

Press and hold the button for 1.5 seconds. Release the button to initiate continuous measurement.
Maximum/minimum
In continuous measurement mode, the system automatically displays.
Continuous measurement:
This mode system screen will display measurement data in real time.It is much like a real tape measure

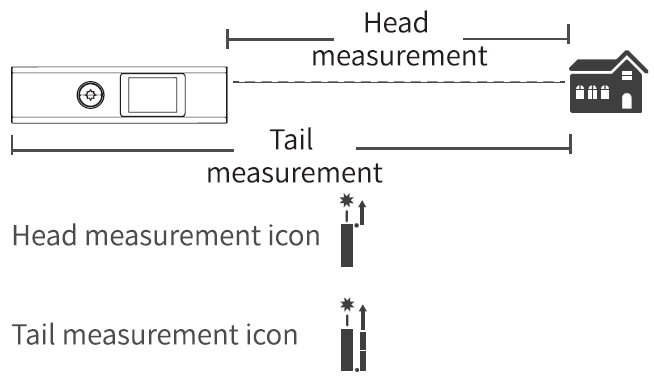

Supplementary explanations before and after the benchmark:
Pre/post reference: refers to whether the body length is calculated in the measurement data.
Screen Description
Setting Mode
In the setting mode, the meaning of the icon:
BOOT Set mode/status
CRL. Calibration
BP.ON/OFF Buzzer on/off
BL.ON/OFF Backlight on/off
m Meter (metric unit)
in Inch (imperial units)
ft Feet (imperial units)
The way to enter the setup mode: Turn on and keep pressing for 5 seconds
The basic operation logic: Single short, change setting data/mode longer short(l seconds),save the current settings and go to the next setting
Setup Page 1:
Calibrating the Laser Rangefinder On this page, the LSl can be calibrated within ±7mm
Switch LSl measurement unit
On this setup page, you can change the unit of measure.
Setup page 3: Turn the backlight on/off
you can set whether or not to display the LCD backlight.
Usage Notice
Please read all the terms and operating instructions in this manual crarefully before using this product. Failure to follow these safety guidelines and operating instructions may result in hazardous laser radiation damager person.al injury.
Do not attempt to alter the performance of the laser in anyway, which ran raise laser exposure to be dangerous. Turn on the laser on when using the instrument, aoo do not look directly at the laser. Please keep your instrument in a safe place to avoid the use of unrelated personnel.
- Do not intentionally use a laser to illuminate others or beam to objects on highly reflective surfaces.
- Please keep it out of the reach of children.
- Do not repair the instrument without authorization.
- Electromagnetic radiation may interfere with equipment and devices
(such as medical instruments such as pacemaker or hearing aids). Dispose of the discarded instrument in accordance with the laws of your location.
- Due to continuous improvement and continuous upgrading of products, the company reserves the right to modify this specification without further notice.
