ABOUT THE UNIT
Thank you for using our HP200 portable power bank. This device applies USB SV, DC 12V, and AC power to your appliance and portable electronics. For protecting your using device, it is a built-in safety lithium battery protection system and auto protection circuit. Before using this unit, please read the user manual carefully and properly keep it for reference.
Important security note!
- Please keep the device away from coins, jewelry, keys, or other metal object or there will be a short circuit hazard.
- Please don’t heat this device. Throw the device in the fire, water, and other liquid container is not allowed. Please keep the device away from the sun directly.
- Please keep the device away from high humidity and a dusty environment
- Please don’t crash the device, Open the device privately is not allowed
- Please don’t fall down and hard shock on this device. Put a heavy object on the device is not allowed.
- Please keep this device in the place where the hypothermia, children, and the person who is civil action competence can t be reached
- Please Do not cover the device with towels, clothing, and another item.
- The unit may become hot when charging. This is normal. Vse caution when handling.
- Please deal with scrap products in accordance with the regulations, do not treatment the built-in battery as household garbage, so as not to cause explosion and pollution.
PRODUCT PARAMETERS
| Capacity | 146Wh |
| (LWH)Dimension | 200x46x145mm |
| Weight | About 1.5KG |
| Built-in battery cell | 100% High-quality lithium battery cells |
| Charging power | DC15V/2A |
| Charging time | DC 15V:6-7 hours |
| USB output | USB1+USB2 SV-3.1A(Max),USB3+USB4 SV-3.1A(Max) |
| DC power | DC 9-12.6V/10A (Max) |
| AC output | AC110 V/60HzPure sine wave output( IMPORTANT! AC output is customized according to different countries, areas. Please refer to the actual product) |
| AC Power | AC Continuous Power Output 200W Peak Power Output:250W |
| Power indicator | LED indicator light |
| Working temperature | -20°C-60°C |
| Circle life | >500 times |
| Accessories | 1 x Portable power bank 1 x Home charger1 x Instruction manual |
There may be some differences in different spare parts. Please adhere to the actual product instead.

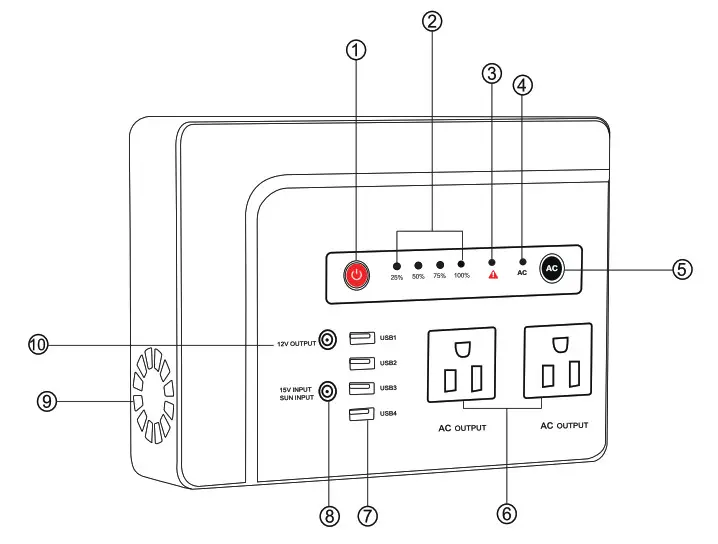

PRODUCT DESCRIPTION
| 1. Power indicator(1) ON/OFF
2. Error indicator 3. AC power indicator 4. AC power switch |
5. AC output
5. USB output © DC input 6. Fan 7. DC output |
PRODUCT INSTRUCTION
- How to provide power for DC 12V appliances(such as headlamp, fan) with this product?
- Press the power ON/OFF switch for short time, the battery indicator is light on. Then DC output is on.
Note: Because the battery is a chemical product, voltage drops with capacity, the DC output voltage of this product is in the range of 9-12.6V. the maximum output current is 10A. If the DC12V appliance you connect does not have the voltage stabilizing function when the DC voltage drops with the decline of battery voltage. it may cause the informal of the appliance. please stop using it.
How to provide power for AC appliances with this product?
- Press the power ON/OFF switch for short time, the battery indicator is light on. Then press the AC power switch for long time. The AC power indicator is light on. The product can work for AC appliances.* The AC output power is 21 0W. When the Appliowc power is over 2COW. plc.or stop to power the Appliance* The Ian will work Automatically for cooling when the working temperature is higher
Warning: Different countries, different voltage. Please read this manual carefully before using or there will be a dangerous hazard.
How to provide power for USB digital appliances with this product?
- Press the power ON/OFF switch for short time, the battery indicator is light on. The device can work for USB digital appliances.
How to recharge the product?
- Charge through AC Adapter.Connect the AC plug of the standard charging adapter for this product to the household AC socket, connect the DC plug of the standard charging adapter with the DC input interface of this product, then this product can be charged. At this time, the blue indicator light flashes when charging, When the product is full of power, the battery indicators will fully light, please remove the charger in time.
light indicator instruction
|
LED Condition |
Status instruction |
| Part of Blue LED grow light | Current remaining batteryindicator |
| The blue indicator light flashes | Charging |
| All Blue LED grow light | Charging completely |
| Red LED light on or twinkle | Error alarm |
| Green LED light on | AC power indicator |
- When the unit is charging, the blue LED will be light on and flashes
- Green LED is light on: AC output
- When the overcurrent protection works, the red LED light will twinkle twice, light off for 2 seconds. Over and over.
- When the overvoltage protection works, the red LED light will twinkle 3 times, light off for 2 seconds. Over and over.
- When the over-temperature protection works, the red LED light will twinkle 5 times, light off 2 seconds. Over and over.
- When the fan is stuck, the red light will be light on
- Output will be power off automatically when the power is used out. The 4 blue LED lights will be light off.
PRODUCT APPLICATION SKILLS
- This product is a built-in high-quality original lithium-ion battery, it has no memory effect but is high-capacity, and it is durable. However, we still recommend you to apply in the range of 10 t —30 r, so as to obtain the optimal charging capacity;
- When charging, in order to avoid interference, please stay away from TV, radio, and other equipment
- If the device has not been used for a long time, please disconnect the cable and store it
- Some portable devices may need to be set in charge mode to charge, see the corresponding equipment use manual for more information
- In order to extend the life of the product (lithium battery), it is best to charge within 3 months and charge at least once within 6 months.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.
Battery information
Your device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may damage the device.The battery can be charged and discharged over 500 times, but it will eventually wear out.
After service repair
- We provide 6 months after service if there is any defective part or You could ask for repairing or refund with purchase receipt within the after service valued time.
- Open and repair this device privately is not allowed
- After service range: Defective performance when normal use. The damage from the external force is out of the after-service.
- We aren’t responsible for the loss during the device repairing
- For human damage of this device within after service time, there will be charged of detecting and components cost. If the after service time is expired, there will be charged of repair
Please take note the following damage are out of after service:
- When the device is defective or damage like defective appearance, dropped down, burned circuit, Compression deformation or object entrance by human damage
- When the device is damaged by fire, water, corrosive reason or
- When the device is damaged by over standard voltage load.
