PROAIM vibration Isolator Wire Mount for Camera Gimbals Instruction Manual

PROAIM vibration Isolator Wire Mount for Camera Gimbals

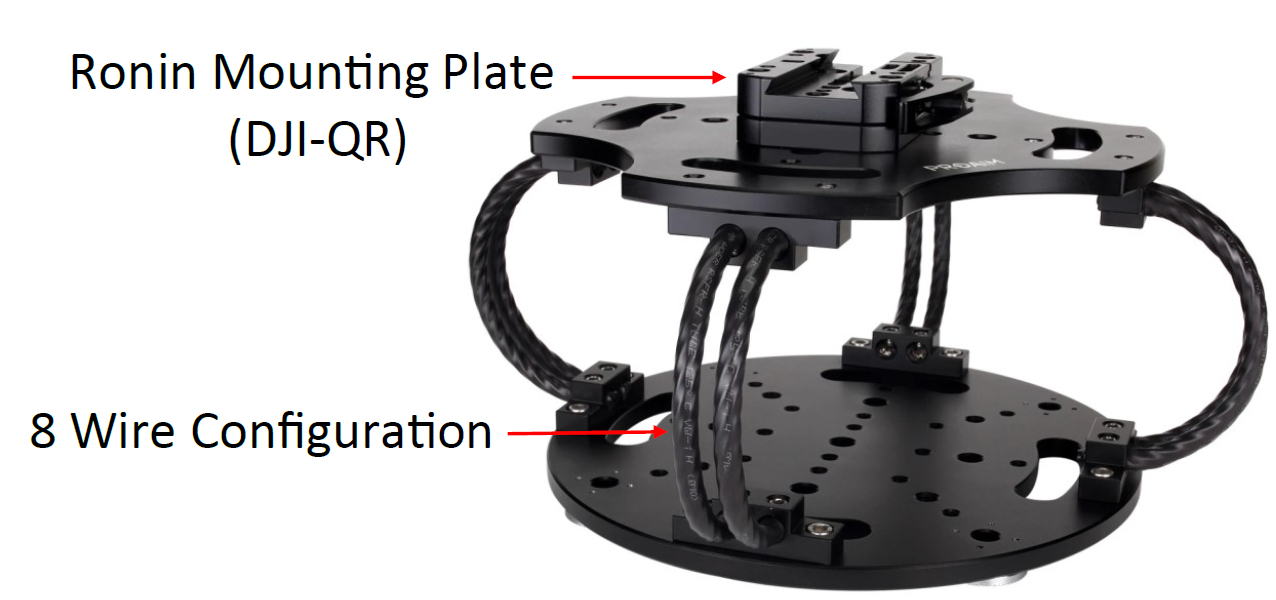

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

All rights reserved.No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

Wire Configuration from 8 Wire to 4 Wire Setup

• Loosen the Allen bolts of wire adapter with the help of 4mm Allen key. Follow the same process for the upper side of wire adapter and then remove the single wire from isolator.
• Follow the same process to remove the other wires. Now your isolator is of 4 wire configuration.

Gimbal Setup

• Before attach your gimbal pull up the Ronin mounting plate (DJI-QR) lever and then attach your gimbal by sliding into Ronin mounting plate (DJI-QR).Note: Mount it to any Camera gimbal Setup ranging from 5/16” thick wire cables (4kg to7kg), and it’ ll function precisely the way you need it.

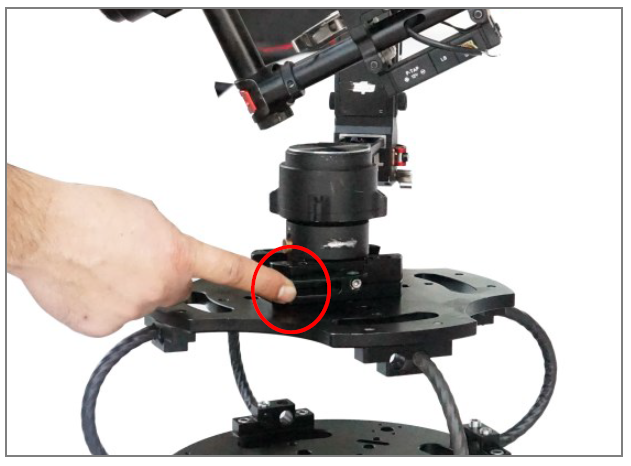

• Now pull down the Ronin mounting plate(DJI-QR) lever to secure your gimbal setup.
• Now you can mount your camera on gimbal.

YOUR PROAIM VIBRATION ISOLATOR WIRE MOUNT FOR CAMERA GIMBALS STABILIZER ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
