QuchiQ W6User Manual
Thank you for choosing our product!To have a comprehensive understanding and using this device, to know all the features and simple operation method, please read this manual first.The functions on the user manual may be little different with physical, please make the final products as the standard.
The typing errors in this manual and discrepancies will be timely updated with the latest products. If we have updates, this manual will be subject to change without notice. Our company reserves the right of final interpretation.
Remark: The product supports waterproof with IP68 level, it is available to wear it while wash hands, swim, in raining, etc.
Warnings! Do not use it when have a hot shower/bath or sauna, the vapors will get into the host, scratch damage of peripheral components. All these are beyond the scope of the warranty.
Operation Guide
Turn On/Off Button：Long press for switch ON/OFF the watch; Short press for return to standby. Hold for 10 seconds reboot the device.
Touch instructions: Tap or/and slide right enter a menu, slip right to return.
Watch faces switch: Long press the watch face and slide right or left to select different watch faces.
Touch instructions: Tap or/and slide right enter a menu, slip right to return.
Watch faces switch: Long press the watch face and slide right or left to select different watch faces.
Watch band change: There is a switch button to take the band off to change at the back-case connector with the band. It is 22mm standard watch band.
Charging instruction: This product adopts magnetic force charging. Put the charging point connect to the back of the device charging pins, it will charge automatically. It usually takes 2 hours to full charging. Support PC USB or standars 5V charger.
Caution: Do not make the magnetic charging cable any 2 pins connect with conducting material at same time, it may cause short circuit.

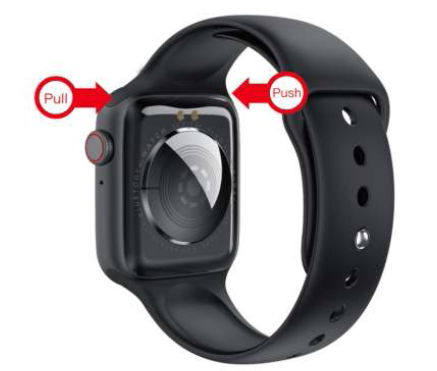

Watch strap change: pull forward with one hand, push forward with the other hand at the same time, watch strap can be easily taken apart.
Watch connects to Phone, download the App “M Active2” in the Phone at first.
Android Phone: search and download “M Active2” app from Google Play;
iOS phone: search and download “M Active2” app from Apps Store;
After installation, turn on cellphone Bluetooth and M Active2 App, confirm the notification enable, tap “More” at right bottom corner, enter add device, search “Watch6_LE” device and tap connect, then you are succeeding connected the Bluetooth 4.0; Next go to watch side Bluetooth-searching Bluetooth-select turn on Bluetooth-tap your cellphone name in the list-confirm the connection at your cellphone end. Then you are succeeding connected Bluetooth 3.0; Only when Bluetooth 3.0 & 4.0 both connected the watch can be abled full performance, slidedown the watch you will see the Bluetooth icon, green color at upper means Bluetooth 3.0 is connected, Blue color at bottom means Bluetooth 4.0 is connected. How to setting notification: into phone’s Settings-App Management, find “M Active2”- permissions Management, turn on all allow.
Into Notifications- find “M Active2”, Turn all on allow. Into “M Active2”- “Application push”, select all allow. Into Notifications- find “M Active2”, Turn all on allow. Into “M Active2”- “Application push”, select all allow. As the Bluetooth protocol is different between all the mobile phone brands. Sometimes the Bluetooth connection will be instability between mobile phone and smart watch.
Please restart the Bluetooth, then try to connect again, or restore factory settings. If appear system halted, please long press power button about 10 seconds to restart watch.
Main functions
Calling Dial: Bluetooth call via cellphone, talk at the watch end.
Phonebook: Sync all the contacts in the cellphone, maximum is 400 contacts.
Call logs: Sync all the calls history in the cellphone.
SMS: Sync all the messages in the cellphone (Not support iOS phone yet).
Notifications: Slide right enter Notification menu; Synchronous all the phone notifications, such as Facebook, WhatsApp, SMS, Email etc., if you want to display the notifications with contents, need to setup to display the details of Facebook and WhatsApp notice function in the Apps in the phone. It will vibrate for incoming calls and messages.
Bluetooth: Search the device you want connect, or disconnect the devices.
Pedometer: Recording the steps you walked during the day, calories burn and distance. Everyday 0 o’clock all the data will be saved automatically and reset to 0. Slide up enter option; status, on and off; history, it can check 7 days local records; Goal, set a target for everyday steps; put into all your information, such as Gender, Height, Weight etc. for more accurate measure your steps data.
Sleep monitor: The device turns on sleep monitor automatically from 9p.m to 9a.m. It records your sleep duration and quality, help to build a better rest time, improve sleep quality. Slide up enter options; Status, On and Off; History, check out deep sleep and light sleep; instruction.
Heart rate monitor: wear the watch tightly with your wrist, best position would be upper of the hand-wrist, around 20 seconds it will shows the real time heart rate data, slide down menu into history, mode includes single measure and continuous measure; and instruction. Generally speaking, normal value is 60-90 times/min.
ECG: adopt optical heart rate and ECG combine technology, about 30 seconds can show the data, after test will appear To APP, means ECG data save to phone “M Active2”.
Sedentary: Set a long-time reminder of sit, remind you have a stand when time up. Anti-lost: click “find phone”, connected phone will be ringing warning, after find the phone, tap “End” of the phone to stop the alarm, it works both watch and Apps sides.
Alarm: Setting 5 alarms maximum, long press can cancel alarm.
Stopwatch: Single timing, tap the left icon to start timing, and tap to pause, tap again for cumulative time.
Setting: All the settings here for set as following;
Bluetooth Setting: Turn on/off the Bluetooth in watch.
Clock: clock type, there are couples standby watch faces to choose. Time will synced once connected with M Active2 App.
Wake up screen receives notification: You can set wake up the watch screen when messages received. Battery working time will reduce.
Display: Set the screen on time, and brightness adjustment.
Sound: you can select the caller profile, select Ringtones, select notification ringtones;
Unit: Set metric or British.
Reset: Recovery the device.
Data transmission: mobile phone to download M Active2 App, after the connection is successful, either steps data, heart rate data, the sleep quality, multiple sports can be transmitted to the mobile end.
Warranty
1. If it appears quality problems caused by manufacturing, materials, design within one year（since the day of purchase）, battery and cable within 6 months. we will offer free warranty. Premise is using normally and correctly.
2. About the fault caused by the user’s personal reasons, we don’t offer free warranty, as follows:
- Disassemble or refit the product.
- Caused by immodesty drop
- All artificial damage or misuse (such as: make water into the host, the external forceshatter, scratch damage of peripheral components, etc.), all these are beyond the scope of the warranty.
3. When ask for free warranty, you must provide a warranty card with the seal of purchase place and purchase date.
4. If you met problems during use, please contact the shop customer service which you boughtfrom.
5. Please make the final products as the standard.Date of purchase:IMEI code:Buy store:
