Instructions for Radioddity G90-H1 Cooling Bracket
Radioddity G90-H1 cooling bracket is an external air-cooled bracket applicable to Xiegu G90. With the functions of the head-up bracket, this item is able to effectively reduce the shell temperature of G90 in use.After the cooling bracket is connected to the power supply, the fan on it starts to rotate at a low speed and provides a relatively low air volume. When the sensor detects that the shell temperature is above 60℃, the fan will automatically raise the speed, increase the air supply volume, and speed up the cooling process.
Bracket supply voltage: 12~14.5V DCBracket current consumption: Max 150mA @ 12V
Usage:
- Loosen the grounding nut at the tail of G90 first, place the radio host on the bracket, position it accurately, and then tighten the grounding nut.

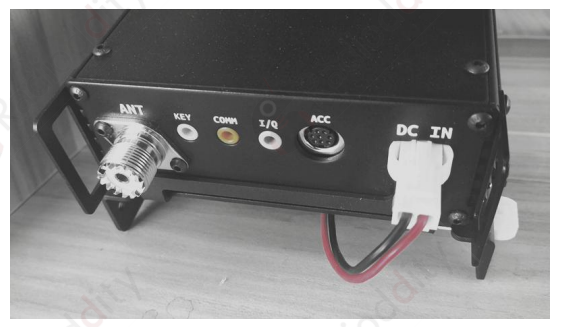

- Plug the power plug on the cooling bracket into the DC IN socket of G90.
- Plug the power cord of G90 into the associated interface on the cooling bracket.Precautions:♦ In order to improve the temperature detection accuracy of the sensor, please fasten the buckle of the bracket to make the body close to the sensor.♦ Note that the two external power interfaces on the left side of the bracket have the same function and both can supply power to the radio.♦ Please prepare the external Anderson power cord by yourself.
Precautions:♦ In order to improve the temperature detection accuracy of the sensor, please fasten the buckle of the bracket to make the body close to the sensor.♦ Note that the two external power interfaces on the left side of the bracket have the same function and both can supply power to the radio.♦ Please prepare the external Anderson power cord by yourself.Radioddity G90-H1 Cooling Bracket Instruction Manual – Radioddity G90-H1 Cooling Bracket Instruction Manual –
