RAPIDFLEX Strutted Exterior Heavy-Duty High Speed Fabric Door Instructions

Table of Contents

RAPIDFLEX Strutted Exterior Heavy-Duty High Speed Fabric Door Instructions

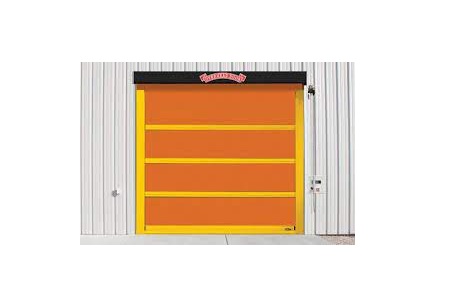

Product Overview

PERFECT FOR MANUFACTURING, PARKING GARAGES, AUTO/TRANSIT, FOOD AND BEVERAGE, WAREHOUSE AND DISTRIBUTION FACILITIES

Excellent wind load protection
- Patent-pending roller windlocks on struts
- Bottom windlocks for pressure protection
Patent-pending breakaway tabs
- Impact protection while raising door
Engineered for high cycles
- Springless design for minimal maintenance
- Special fasteners keep hood flat and flush for a finished appearance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Rugged 3-ply fabric curtain construction
Low maintenance
- Push button self-repair
- Plug and play wiring
Programmable LED lighting system
Standard hood
- Blocks moisture and debris from impeding door operation

Standard features at a glance

Maximum height	20′
Maximum width	20′
Maximum opening speed	Up to 65″/sec
Maximum closing speed	Up to 40″/sec
Bottom bar break-away	Yes
Wind load*	Up to 19.5 psf
Wind struts	Metal struts with roller windlocks.
Curtain material	3 layers of PVC-coated polyester with 2 layers of polyester weave.
Header braces	Multiple braces across entire width strengthen and combat sagging.
Operation	Direct drive motor and gearbox system with a door stop device
Hood	Protection from debris and moisture.
Control panel	Variable frequency drive NEMA 4X cULus listed;Onboard self diagnostic and service reminder;Built-in padlockable fused disconnect.
Obstruction safety detection	Infrared sensors mounted in-plane to the door curtain at 18″ and 50″ – 54″ from floor Reversing safety edge Wireless reversing edge.
Available supply voltages	208-245V AC 3PH/60Hz;440-480V AC 3PH/60Hz;575V AC 3PH/60Hz (requires transformer).
Warranty	5-Year Limited.

Options

Actuation options – Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control
Signaling device options – Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting.
Sloped hood and non-drive end cover – protection from debris and moisture.
20″ high windows – spaced evenly across width of door.

Curtain color options

Orange
Red
Gray
Blue

Standard color for guides, wind strut and bottom bar is yellow. Approximately 200 optional RAL powder coat colors are also available. Actual colors may vary from brochure due to fluctuation in the printing process. Always request a color sample from your Overhead Door™ Distributor for accurate color matching.
