User Manual

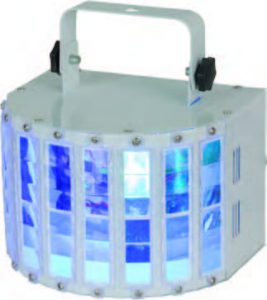

Rave LED Move DMX Flash Light
Box Contents
- 1 x LED Move DMX Flash Light
- 1 x Power Supply
- 1 x Remote Control
Function control
Function buttons
MENU: Press to change and select from 1 of 10 available functions (including DMX function). UP/DOWN: Adjust each functions speed.
ENTER: Save the mode you prefer for start up. If not press ENTER to reset.

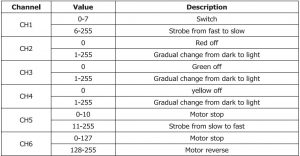

DMX 512 mode
Display will show A001 – A512:
This mode requires the unit to be connected to a DMX512 controller. After powering up, turn on the first channel of the DMX mode. The DMX mode has 7 channels which need to match up with the DMX controller.
Manual of remote controller
Technical Parameter
Feature Set
Attention
- Please read these operating instructions carefully to familiarise yourself with the basic operations of this unit BEFORE USE.
- Unless the instructions have already stated, please do not freely modified the unit.
Safety Tips
- Before installation and maintenance, please confirm the power is OFF. make sure that the ventilation around the unit is good.
- The lighting is designed for indoor demonstration, please do not use this product in a wet environment for long-term.
- The use and maintenance of this unit should avoid contact with water, when using it outdoor, please take waterproofing measures.
- Personnel, who undertake the installation, operation and maintenance, must be familiar with the lighting performance. Damage may result from misuse.
- Do not face up to the luminous unit for a long time, so as not to cause discomfort to your eyes.
- To keep clean, wipe the unit with a clean cloth.
Distributed by: TechBrands by Electus Distribution Pry. Ltd.
NSW 2116 Australia
Ph: 1300 738 555 Int’l: +61 2 8832 3200
Fax: 1300 738 500 www.techbrands.com
