raycop Handheld UV Allergen Vacuum Instruction Manual

raycop Handheld UV Allergen
Vacuum Instruction Manual

  • Please refer to the ‘Safety Precautions’ before use for details on how to stay safe and prevent damage.
  • This RAY COP is specifically designed for the US market. The use of this RAY COP outside of US is not recommended.
  • The exterior and specifications of this product a re subject to change without prior notice.
  • Keep this instruction manual for future reference.

Design for Safety

UV Lamp Safety Sensor• A safety feature that automatically turns off the UV lamp when your device is moved away from the surf ace. The UV lamp is automatically turned back on when your device is moved close to the surf ace again.

Run Time Control System• After 29 minutes, an a I arm begins to sound and the power button lamp flashes to warn you that RA YCOP will automatically switch OFF after30 minutes.

HEPA Filter Replacement Alert• RAYCOP will alert you when it is time to replace the HEPA filter. You will hear 5 alert chimes, and the red light on the power button (start flashing). This alert typically occurs after every 60 hours of use.

Motor Overheat Protection Operation• If your device is continuously used for 30 minutes, the motor over- heating prevention device automatically stops suction to preventoverheating the motor. This may occur if the fabric filter of the dust box is clogged with dust.

UV (Ultraviolet) Light Blocking Feature· Minimizes UV emitted to areas other than the area being cleaned.

Safety Precautions

All RAYCOP products are designed with the highest safety standards, IM PORT ANT SAFETY INSTRUCT IONS. Read a II instructions before using

WARNING: To reduce the risk of fire, electric shock, or injury:

USE
  • Do not leave appliance when plugged in. Un plug from outlet when not in use and before servicing.
  • Do not use outdoors or on wet surfaces
  • Do not allow to be used as a toy. Pay close attention when used by or near children.
  • Use only as described in this manual. Use only manufacturer’s recommended attachments.
  • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
  • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not runappliance over cord. Keep cord away from heated surfaces.
  • Do not unplug by pulling on cord. To unplug, grasp the plug and pull, not the cord.
  • Do not handle plug or appliance with wet hands.
  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduceairflow.
  • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Turnoff all controls before unplugging.
  • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
  • Always turn off this appliance before connecting or disconnecting motorized nozzle.
  • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Do not use without dust box and/or filters in place.
SAVE THESE INSTRUCTIONS

• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in anyway.

UV Lamp Caution
  • Direct exposure to ultraviolet radiation can cause serious burns to the skin and eyes.
  • Do not touch the UV lamp during or immediately after use.
  • Do not directly emit the ultraviolet light from the UV lamp towards the eyes or skin of humans and/or animals.
  • UV-C bulbs contain mercury, which is considered hazardous waste and is subject to federal and/or state hazardous waste regulations.
    • In rare instances, (similar to standard florescent light bulbs) mercury leakage could occur if the bulb breaks and could cause birth or reproductive issues.
  • Please keep the UV lamp protective tube clean.
    • Inadequate and infrequent maintenance may lower the transmission of ultraviolet light.
Other Precautions
  • Do not use or store heating appliances such as stoves or heaters, nor flammable substances such as combustible sprays near this product.
  • Do not vacuum knives, thumbtacks, burning ash, toner powder or other inappropriate materials.
  • If you notice any abnormal noise, odors, or smoke emanating from this product, immediately remove the power plug.
  • Please visit raycop.com/faq for specific instructions on proper cleaning and maintenance practices.
    • This product is intended primarily for household use on mattresses, bed covers, bedding, pillows, cushions, sofas, and other upholstery products.
  • Do not use for outdoor purposes or on metal, leather, wood, liquids or other non fabric surfaces.

Use and Maintenance

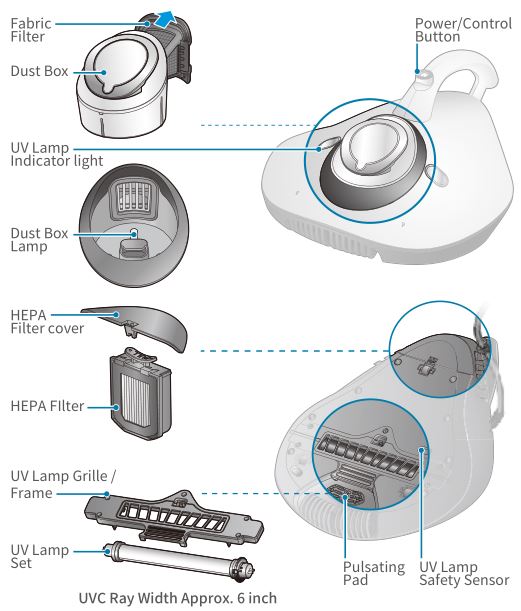

Getting to know RAYCOP LITE

REMINDER:When it’s time to replace your parts, please use genuine RAVCOP parts.To order please visit www.raycop.com or contact us at [email protected]

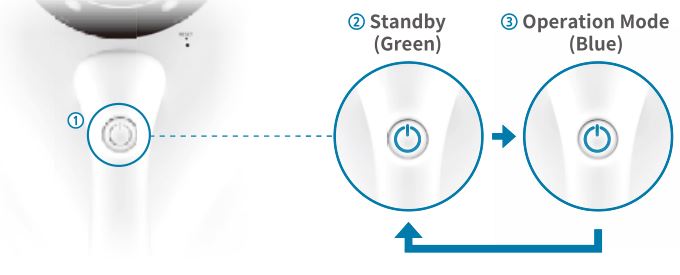

How to start

  1. Power Button
  2. Standby (green light)Plug the power plug into the outlet and green color indicator appears on the Power Button.
  3. Operation Mode (blue tight)Push the power button and the vacuum will start to operate with the button turning blue.

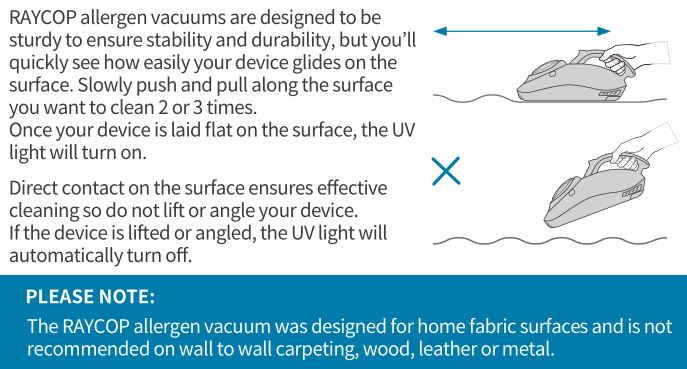

How to Use

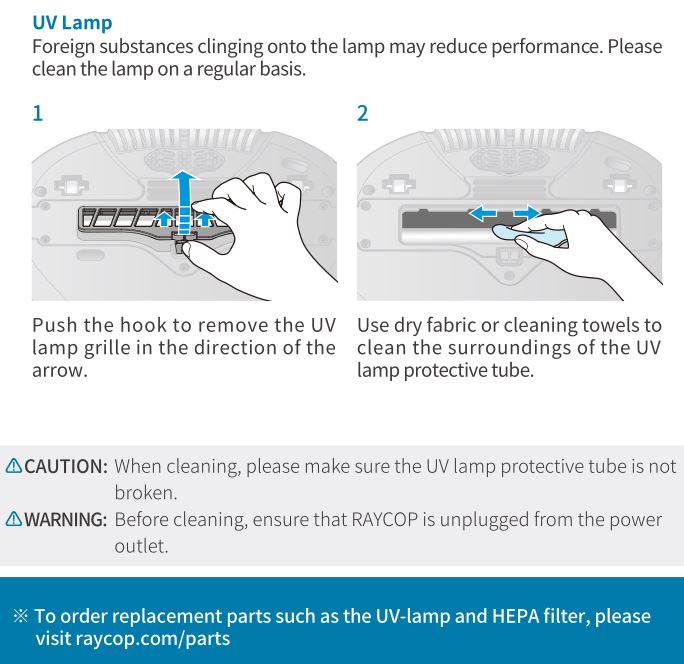

Maintenance

raycop.com/parts

COMMITMENT TO QUALITY

Technical Specifications

Serial Number :Warranty Period : 1 year from the date of purchase {parts and additional products are not included)Size (mm) : 11 x 14 x 61n (300 x352 x 150.5mm)Weight : Approximately 41 bs (1.95kg)Power Consumption : 330WUV-C Lamp : 6W (253.7nm)Pulsating Pad : 3,300 RPMSuction Mode : 1 ModeAir Filtration : Dust Box Filter+ HEPA FilterUV Light Safety Mechanism : Two built-in Sensors for Surface DetectionMotor Safety : Heat Detection with Automatic Cutoff Switch

RAYCOP North America Inc.[email protected]12667 Alcosta Boulevard,San Ramon, CA 94583866.872.9267http://www.raycop.com

RAYCOP Limited One-Year Warranty

  • The warranty period is valid one year from the date of original purchase .
  • Follow the instructions below.
    1. Locate original sales receipt and make note of your model and serial number.
    2. Call RAYCOP at 866.8RAYCOP or 866.872.92 67 or email us at [email protected].
    3. You will be asked to provide your name, address, date of purchase, model and serial number.
    4. RAYCOP will arrange shipping boxes to be sent to your home to recover the product. Simply follow the instructions inside the box on how to send the device back to RAYCOP.
  • RAYCOP warrants its product to be free from defects in material and workmanship for a period of one year from the date of the original purchase from RA YCOP or an authorized RAYCOP distributor. Proof of purchase is required for all warranty claims.

We thank you for being a customer of RAYCOP .

  • This warranty does not cover damage, defects or failure caused by or resulting from ace ident, external destruct ion, a Iteration, modification, abuse, misuse or misapplication of this product.
  • Please read all the documentations carefully to ensure RAYCOP was used as intended.
