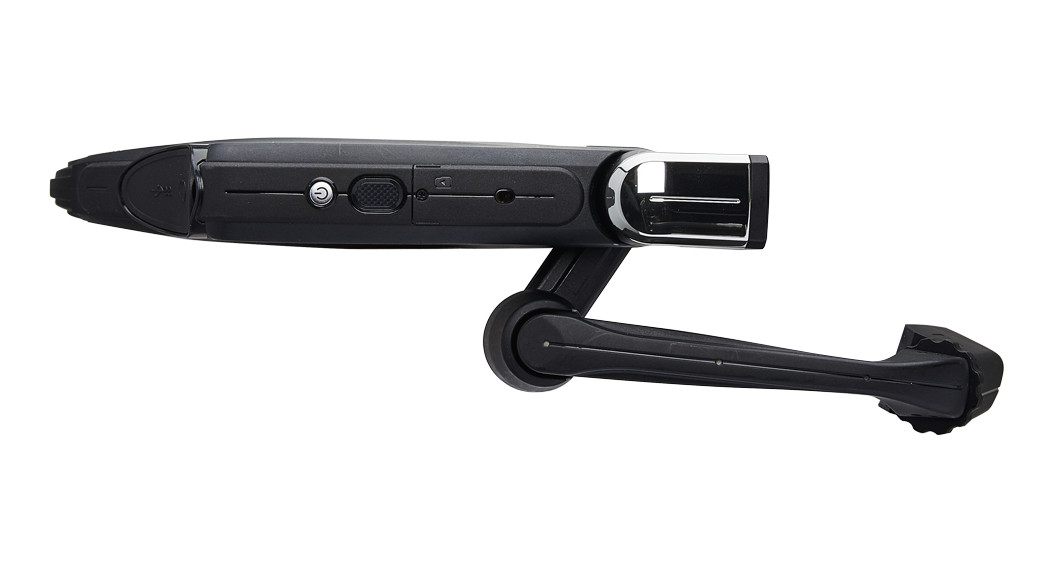

Safer. Faster. Smarter.The RealWear HMT-1 provides the foundation for Connected Worker programs. Use it in wet, dusty, hot, dangerous, and loud industrial environments. A fully rugged head-mounted device, it optionally snaps into safety helmets or attaches to bump caps and can be used with safety glasses or corrective eyewear.The high-resolution microdisplay fits just below your line of sight and views like a 7″ tablet. It’s an industrial dashboard: there when you need it and out of your way when you don’t.The HMT-1 works with powerful software applications from our solution partners in four core categories, each optimized for completely hands-free voice control. That means no scrolling, swiping, or tapping just simple voice commands. Use it for remote mentor video calling, document navigation, guided workflow, mobile forms, and industrial IoT data visualization.
100% Hands-freeVoice-based operating system with local speech recognition in loud areas.
Unmatched noise cancellationThe HMT-1 uses four microphones and advanced algorithms to perform noise cancellation prior to voice recognition.
Powerful audioIntegrated speaker and 3.5mm audio jack for use with hearing protection.
PPE compatibleDesigned to work with standard hard helmets, bump caps, and safety glasses.
Full shift internal batteryField swappable for continuous use.
Outdoor displayViewable in bright sunlight.For ATEX Zone 1/FMC1/D1 Intrinsically Safe model contact RealWear at
Water resistantIP66Protected against heavy seas or powerful jets of water.
Dust tightIP66Complete protection against the ingress of micro particles.
Shock ResistantResistant to 2-meter drops onto concrete from any angle.
Built ruggedFully operational from -20° C to +50° C.
HMT-1
product specifications
Core platform & functions Operating System Chipset Memory Included Applications Languages Supported Connectivity & sensors Bluetooth Wi-Fi GPS and Location IMUAndroid 10.0 (AOSP) + WearHFTM hands-free interface 2.0 GHz 8-core Qualcomm® SnapdragonTM 626 with Adreno 506 GPU – OpenGL ES 3.1 & OpenGL 2.0 32 GB Internal Storage / 3 GB RAM / MicroSD slot (max card supported 256 GB) Document Navigator, Camera with Barcode Reader, Video Recorder, Media Player English, Spanish, French, German, Italian, Portuguese, Russian, Mandarin Chinese, Japanese, Korean, Thai, Polish, Traditional Chinese
Connectivity & sensors Bluetooth Wi-Fi GPS and Location IMUBluetooth Low Energy 4.1 802.11 a/b/g/n/ac – 2.4GHz and 5GHz GPS, GLONASS, A-GPS 9-DOF (3-axis accelerometer, magnetometer, and gyroscope), software enhanced stabilization
Battery – Capacity Battery Life – 3250 mAh/12.025 wH Li-Ion, rechargeable and field swappable Full shift (9-10 hrs) with typical use
Physical characteristics – Weight Ruggedization Dedicated keys Ports Boom arm – 380 g 2-meter drop, IP66, MIL-STD-810G Power key, application specific action key 3.5mm audio, 1 USB Type-C Adjusts six ways for all head sizes, left or right eye compatible, display flips out of the way when not in use
Display – Type Resolution – 20º field-of-view, 1-meter fixed focus, 24-bit color LCD, 0.33 inch diagonal, outdoor visible WVGA (854×480)Audio- Microphones Speaker – 4 digital microphones with active noise cancellation Accurate voice recognition even in 95 dBA of typical industrial noiseMultimedia – Camera Video- 6 MP 4-axis optical image stabilization, PDAF with LED Flashlight p to 1080p @30fps. Codecs: VP8, VP9, and hardware encoding support for H.264, H.265 HEVCAccessories – Included Optional- Work and, Battery wall charger, USB Type-C charging cable Spare battery, 6 battery multi-charger, hard hat clips, bump cap, and tri-band strap, earbud hearing protection headphone rated at 33dB noise reduction rating (NRR), soft pouch carrying case, semi-rigidcarrying case, replacement overhead straps, and rear pads.For more information contact:[email protected]
