REDARC MANAGER30 BATTERY MANAGEMENT SYSTEMS User Guide
The REDARC Manager30 is a state-of-the-art battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs. It is ideal for RVs, overlanding vehicles and camper trailers with battery banks.
Whether you’re using lead acid, gel, calcium, AGM or lithium iron phosphate (LiFePO4) batteries, the Manager30 represents a complete battery charging and maintenance solution.
If you’re charging one auxiliary battery or more, The Manager30 will ensure they’re always fully charged, providing peace of mind when using the comforts of home while travelling.
STAY IN CHARGE WITH THE MANAGER30 FROM REDARC
The Manager30 is a complete battery management system, charging auxiliary batteries used in automotive applications by incorporating AC, DC and solar inputs to achieve the best charge.
Developed with ease of installation in mind, The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators, features load sharing capabilities and green power priority
POWERFUL OUTPUT
The Manager30 has a 30 amp current output and is able to handle more power intensive loads and maintain larger battery banks. It can also charge all common automotive batteries including lithium (LiFePO4).
GREEN POWER PRIORITY
If 12 volt solar power is available, solar power will be used before topping up the output charging current from another source such as mains power or DC vehicle power when you’re on the move.
MPPT SOLAR REGULATOR
The built-in Maximum Power Point Tracking (MPPT) solar regulator allows The Manager30 to deliver the maximum amount of power from your solar panels, even during low light conditions.
MULTI-STAGE CHARGING PROCESS
Two different multi-stage DC-DC charging profiles fully charge auxiliary batteries. Sophisticated fault detection sensors monitor the battery conditions during all stages of charging, keeping you and your caravan/ camper safe.

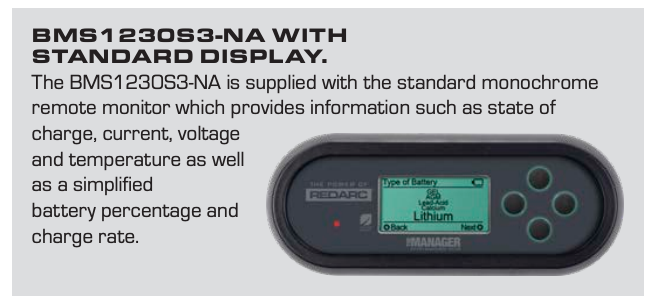

REMOTE BATTERY MONITOR OPTIONS
The Manager30 comes with a choice of displays designed to give you house battery information and charge status along with critical system information while charging is in progress.
Whichever display you choose this 30 amp battery management system gives you the best of both worlds.

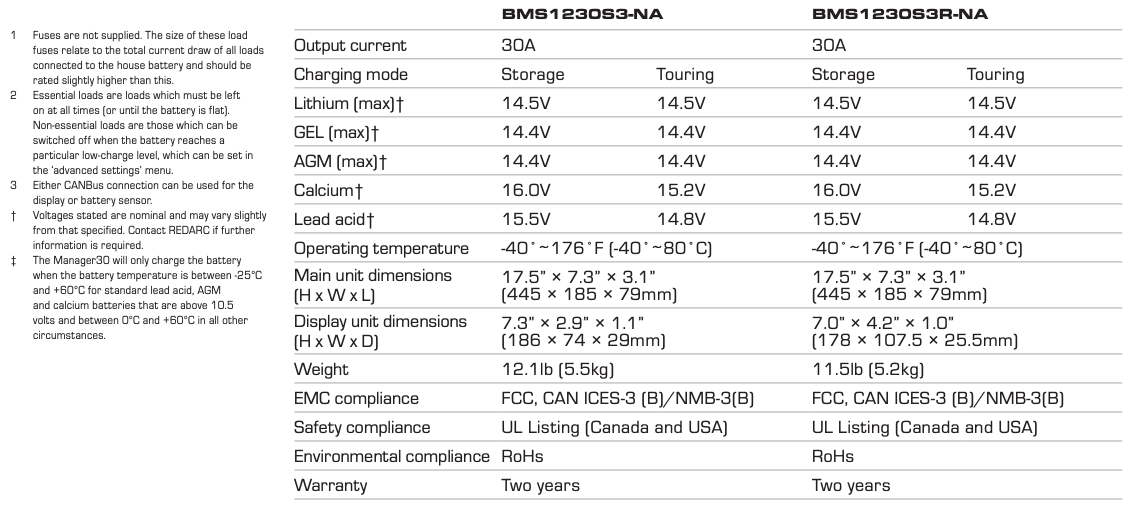

THE MANAGER STANDARD INSTALLATION (12 OR 24 VOLT)
REDARCELECTRONICS.COM
For free product support contact REDARC Tech Support on the numbers below or send an email to [email protected]. A complete list of distributors can be found at redarcelectronics.com/distributors.
Local calling numbersUSA +1 (704) 247-5150Canada +1 (604) 260 5512Mexico +52 (558) 526 2898
International head office23 Brodie Road North, LonsdaleSouth Australia, Australia 5160Email [email protected]
8am to 5.30pm Australian Central Standard Time Monday to Friday
© 2021 REDARC Corporation. All rights reserved. Details and specifications are subject to change without notice. 7050-210524
