ruarkaudio R1 MK4 Bluetooth Radio User Guide

ruarkaudio R1 MK4 Bluetooth Radio User Guide



Important information about the AC power adapter

Model DYS824-140150W-KInput 100-240V~50/60Hz, 0.7A MAXOutput 14.0VDC 1.5AClass II, Efficiency Level VI

  • This AC adapter is for audio & video equipment use only and complies with IEC 60065 safety standard.
  • The supplied 3-pin plug adapter complies with BS 1363-1 and the supplied 2-pin plug adapter complies  with EN 50075.
  • Before using the AC adapter, ensure the mains voltage is within the rated supply voltage range.
  • The output power taken from this AC adapter must not exceed its rated output power.
  • DO NOT disassemble or modify the AC adapter.
  • DO NOT drop or throw the AC adapter.
  • The external flexible cable cannot be replaced and if the cord is damaged, the AC adapter must be replaced.
  • DO NOT expose the AC adapter to dripping or splashing water, and do not place objects filled with liquids, such as vases, on or near the device.
  • DO NOT leave the AC adapter in a hot location, such as near fire or under strong sunlight.
  • Unplug the AC adapter during lightning storms or when unused for long periods of time to prevent damage.
  • Ensure that the AC adapter is readily accessible when plugged into the mains. If an abnormal condition occurs while using it, immediately turn off the connected device and disconnect the mains adapter from the mains.
  • DO NOT dispose this AC adapter as general household waste or unsorted municipal waste. Dispose of it according to local regulations.never cover ventilation openings on the device.







7. Setup wizardFollow the setup wizard to configure your R1. Rotate the CONTROL KNOB until your preferred choice is shown, then press the CONTROL KNOB to SELECT.

If you live in a region without DAB/DAB+, you can choose to disable DAB. To enable it again, simply reset the system and enable DAB during the setup wizard.

Need more help?For more information, seewww.ruarkaudio.com/support

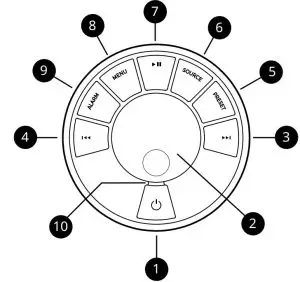

Controls

  1. – STANDBY
  2. CONTROL KNOB / SELECTRotate to adjust volume from a Now-playing screen.Rotate to browse menus or station lists.Press to SELECT.Press to SNOOZE a sounding alarm. Press it again to increase the snooze time, or press and hold to cancel.
  3.   – press to skip to next station or track, press and hold to fast forward. In standby, press to increase display brightness.
  4. – press to skip to previous station or track, press and hold to rewind. In standby, press to decrease display brightness.
  5. PRESET – press to recall a saved station or press and hold for two seconds to save a radio station.
  6. SOURCE – press to change audio source.
  7. – press to play/pause a track or mute audio inputs and radio.
  8. MENU – press to view the options menu, when in a menu, press to go back to previous screen.
  9. ALARM / SLEEP – press to set an alarm or press and hold to set sleep timer.
  10. LED – indicates radio is on and flashes when Bluetooth is ready to connect or pair.

TipsYou can also press or to browse menus, sources or station lists.

Currently saved settings are highlighted with solid angle brackets, eg Radio text .Press = tap or press and immediately release.Press and hold = press and release after two seconds.



Specifications

Amplifier and driver75mm Ruark NS+ driver9W Class AB amplifier

ConnectivityDAB, DAB+Multiregional FM Tuner with RDSBluetooth V4.2 SBC, AAC, BLE, A2DPLine input 3.5mm jack (1.4Vrms max)Headphone 3.5mm output jack (6Ω)USB C 2.0, (5V 1A) MP3, AAC up to 48kHz 320kbps,FLAC up to 24-bit 96kHz, WAV up to 24-bit 96kHz, WMA up to 44.1kHz 320kbps

FeaturesHigh-contrast OLED with auto dimmingReal time clock with internal battery backupKensington compatible security slot

Power adapter100-240VAC, 50-60Hz input, 14VDC 1.5A output

DimensionsH175 x W130 x D135mm (6.9 × 5.1 × 5.3in)1.4kg (3.1lbs)

Specification and design subject to modification without notice.



Troubleshooting

For help with your product, please refer to the FAQ (Frequently Asked Questions) page in the support area of our website www.ruarkaudio.com/support



Regulatory information

This device is labelled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment. This symbol indicates that the product or associated batteries should not be disposed of as general household waste. As with any electrical equipment, please dispose of it according to local regulations.

CE COMPLIANCE INFORMATIONThis product conforms to all EU Directive requirements as applicable by law. Hereby, Ruark Audio, declares that this device complies with the essential requirements and other relevant provisions of the European Radio Equipment Directive 2014/53/EU. You can download the full CE Declaration of Conformity at www.ruarkaudio.com/doc/R1mk4doc.pdf



Safety information

  • Read this user guide and follow all instructions, it will help you set up and operate your product properly.
  • Heed all warnings and keep this user guide for future reference.
  • Do not attempt to use a damaged device as this could result in a dangerous electric shock.
  • Do not open the unit or remove any panels to expose the electronics. No user serviceable parts inside.
  • Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as when any power cord, or power plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • This device is intended to be operated ONLY from the AC voltages listed on the back panel or included AC mains adapter. Operation from voltages other than those indicated may cause irreversible damage to the device and void the product warranty.
  • Ensure that the mains plug or mains connector into the unit is readily accessible in case disconnection from the mains is required.
  • The AC mains adapter, mains plug, or mains connector must be removed from the socket to completely disconnect the system from AC mains power.
  • Do not place any naked flame sources, such as lighted candles, on or near the device. Do not install near any heat sources such as radiators, stoves, or other devices that produce heat.
  • Avoid exposure to extreme heat or cold.
  • Only use attachments/accessories specified for this device. Make no modifications to the system or accessories. Unauthorised alterations may compromise safety, regulatory compliance, and system performance.
  • Only use the supplied aerial or an approved replacement.
  • To reduce the risk of fire or electrical shock, do not expose the device to rain or moisture.
  • Do not expose this device to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the device. As with any electronic products, use care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.
  • Disconnect this device from AC mains power during lightning storms or when unused for long periods of time to prevent damage to this device.
  • To prevent risk of fire or electric shock, avoid overloading AC mains power outlets or extension cords.
  • Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.
  • Do not install this device in a confined space. Always leave a space of at least 10cm around the device for ventilation and ensure that curtains or other objects never cover ventilation openings on the device.



Guarantee for UK sales

Register your product online to obtain a comprehensive three-year product guarantee, otherwise we guarantee this product to be free from defects for a period of two years from date of purchase.

This guarantee remains valid providing this product has been treated with due care and attention. Product failure through accidental damage, excessive wear and tear, negligence or unauthorised modification will void your guarantee.

Should this product develop a fault, please contact the retailer from which it was purchased, or you can contact us directly via our website: www.ruarkaudio.com/support

If returning this product, please ensure it is packed in its original packaging and a proof of purchase is included.



Guarantee for overseas sales

The distributor in the country of purchase guarantees products purchased outside the UK. For details, please contact your local Ruark distributor or outlet.

THIS GUARANTEE IN NO WAY VARIES OR REMOVESTHE PURCHASER’S STATUTORY RIGHTS. E&OE



General care

Clean with a soft, lint-free duster or slightly dampened cloth. Do not use wax sprays or other substances as these may damage the surface finish or impair performance.

Do not expose your unit to direct sunlight, high humidity, dust, excessive vibration or extreme temperatures, all of which can affect the finish, performance and reliability of the unit.

Recommended operating temp. range is 5°C to 40°C. Natural wood finishes will vary and lighten or darken with age, particularly when exposed to sunlight.



Copyright and trademarks

© 2020 Ruark Audio. All rights reserved. Ruark Audio, the Ruark Audio logo, and other Ruark Audio marks are owned by Ruark Audio and may be registered.

Ruark Audio assumes no responsibility for any errors that may appear in this manual and the information contained in it may change without notice.

Bluetooth® and associated logos are registered trademarks owned by Bluetooth SIG, Inc.All other trademarks are the property of their respective owners.



59 Tailors Court, Temple Farm Industrial Estate,Southend on Sea, Essex, SS2 5TH, UKwww.ruarkaudio.com
