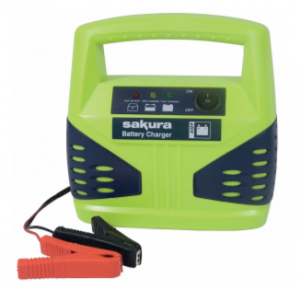

sakura 4 6 8 Amp Battery Charger User Manual

sakura 4 6 8 Amp Battery Charger User Manual

Read these Operating Instructions carefully before use. Keep these instructionsfor later reference. Always operate the charger according to these instructions

Operation

1. Consult the vehicle manufacturer owner’s manual to determine whether the battery must be disconnected from the vehicle electrical system. For standard batteries, loosen cell plugs and check electrolyte level. (The electrolyte must cover the plates in the individual cells. If it does not, top up with distilled water). Maintenance-free batteries should not be opened; this can be done only at an authorized repair facility  using special equipment. For maintenance-free batteries, discontinue charging once out-gassing voltage (14.4V) has been reached.
2.  Connect the red clamp to the positive terminal (+) of the battery, then the black clamp to the negative terminal (-). When charging a battery that has not been removed from the vehicle, first attach the charging clamp to the battery terminal that is not electrically connected to the vehicle chassis. Make the other connection to the chassis at a location away from the battery and fuel line. The charge status red LED will illuminate to show the battery is connected.
3. Plug the charger into the 240V mains socket and set the charger power switch to ON’; the charger will begin charging the battery. The charge status of the battery is displayed by the LED’s. When the battery is fully charged the corresponding ‘Full charge’ LED will illuminate.
4. Once charging is complete, remove the power plug from the 240V mains socket and set the charger power switch to ‘OFF’.

CAUTION: Always pull on the plug itself, never on the cord. Only then can terminal clamps be removed from the battery. If the battery has not been removed from thevehicle, first disconnect the clamp from the chassis then from the battery, in that order. Re-tighten the battery cell plugs if fitted.

Charger Characteristics

This unit contains a temperature-sensitive switch that automatically shuts the charger off in the event of power overload or excessively high temperatures. The unit will automaticallyswitch back on after a cooling period. Not suitable for continuous charging. DONOT use for trickle charging. Use this unit with caution on completely maintenance-free batteries; the charging operation must be monitored.

Warnings

• Be sure to turn off the power source before disconnecting clamps from the battery. Likewise, only turn on power once clamps have been fitted
• When not in use, store the charger in a dry area to avoid any possible moisture damage
• You should not attempt to open or attempt any maintenance on the battery charger
• Battery acid is corrosive and can cause burning. If skin comes into contact with any acid, rinse and seek immediate medical advice
• Whilst charging, it’s possible that the battery may emit gasses. Ensure that there is no potential of sparks or flames near the engine whilst in use
• Never use the charger if cables or the unit itself is damaged
• Never charge from a damaged or frozen battery
• Make sure that the cables and battery do not come into contact with water
• DO NOT place the charger on the battery whilst charging
• Always provide suitable ventilation when charging and do not cover the charger
• The charger may become slightly hot when in use which is normal
• DO NOT use in any areas which are accessible to children
• DO NOT leave the charger unattended for long periods
• DO NOT use the charger in rain or damp conditions
• DO NOT smoke, and avoid open flames or sparks
• DO NOT charge non-rechargeable batteries
• For indoor use only
• Wear protective gloves and safety glasses when working on the battery
• Provide good ventilation when charging. Ensure good air flow around the charger. Never block the charger’s ventilation slots

Safety features

• The Charger has a built in temperature protection mode, which it will enter automatically if the unit overheats. When the temperature has dropped to a normal level, the charger will restart normal charging automatically
• DO NOT charge the battery whilst the engine is turned on
• When charging a battery, do not close the bonnet, door or the cover to prevent any possible cause for a high current or short circuit

WARNING

Explosive gases. Prevent flames and sparks. Provide adequate ventilation

CAUTION: If you smell an unpleasant gas odour, there is a risk of explosion

• DO NOT switch off the charger
• DO NOT remove charging clamps
• IMMEDIATELY provide good ventilation of the area
• Disconnect power only after thorough ventilation
• Have the battery checked by a qualified automotive electrical technician

Technical Data

TMAP-1204K TMAP-1206K TMAP-1208KSS3629 | SS3630 | SS3631

Saxon

Everland Road, Hungerford,Berkshire, RG17 0DX, UK 01488 689 400www.saxon-brands.comSAKURA® is a registered trademark ofSaxon © 2021 by Saxon
