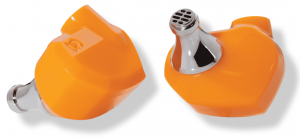

SATSUMA Campfire Audio

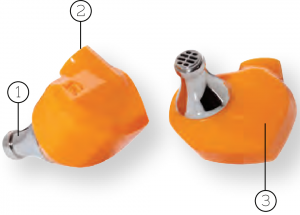

Overview
- Polished stainless steel spout
- Custom beryllium copper mmcx
- Molded ABS body in ‘orange fizz’
Use Instructions
We designed your new earphones to bring you years of musical enjoyment both on stage and in the studio. Below are a few guidelines that will help you get the most from your experience with them.Your earphones come with a removable cable that attaches via custom-made beryllium copper MMCX connectors. These increase the life of the connection and extend the usable life of the earphone. It also gives you the ability to select the perfect cable for each situation.
To remove your earphone’s cable
- Holding your earphone, pull the cable in the direction parallel to the connection, holding it close to the connector.
- Avoid pulling the cable at an angle; this can damage the cable and earphones’ mmcx connectors.
- Don’t worry if this takes a bit of force to remove; we designed it for a secure connection to give you peace of mind.
Specifications
Balanced Armature Earphone Design
Driver Unit:
Single full-range balanced armature + Tuned Acoustic Expansion Chamber™ (T.A.E.C.)
| SPL: | 94db @ 67 mVrms |
| Earphone Impedance | 46.40 ohm @ 1K Frequency |
| Response | 5 Hz – 18 kHz |
| Earphone Connector | Beryllium copper mmcx |
| Acoustic Chambers: | 3d printed Solid-Body |
Accessories
‘SMOKY LITE’ LITZ CABLE
Silver plated copper litz wire conductorsin smoky pvc jacket3.5mm stereo plug to custom beryllium copper mmcx
Campfire Audio Marshmallow tips (small, medium, large) Silicon Earphone Tips (small, medium, large) + bonus featured earphone tips (various sizes) Earphone Clearing Tool, Campfire Audio Pin Campfire Canvas Zipper Case – hand made in Portugal
Fit Guide
Insert Satsuma into your ear with the cable facing forward and logo upright. Our cables are marked with a dot on the mmcx over-mold; ‘blue’ for left and ‘Red’ for right. Wrap cable behind ear once earphone is positioned.
Designed and hand assembled in Portland, Oregon USA using globally sourced components
Care Instructions
To maintain the performance of the earphone to keep the openings clear of debris and wax.Use the clearing tool included with your earphones to remove any build-up that may occur.
Each Campfire Audio earphone holds a sensitive transducer. We have designed and built them to withstand a working performer’s demands. But do note sudden shocks or impact to the shell can cause damage or alter the earphone’s transducer’s performance.
Do your best to avoid excess moisture build-up on the surface and in the earphone body’s interior. Give the earphones time to air dry after performances to preserve their superior performance.
Note that extended listening periods at high listening levels can negatively impact your hearing over time. Please enjoy your earphones responsibly and be good to your ears.
Warranty
Satsuma includes a 2 year limited liability product warranty covering defects due to manufacturing and assembly.For more information visit us at www.campfireaudio.com/warranty
Please note; damage to the earphone transducers or other components are not covered by the earphone’s warranty protection and are subject to a reasonable repair fee. Opening or changing the earphone body will damage the shell’s seal and alter your earphone’s precision tuning. It will also void the warranty of your earphone. We’re happy to help you with your earphone, so feel free to reach out to us if you have any questions.
Questions or comments? Please contact us: [email protected]
Than You for purchasing satsuma nicely done.
Learn more – visit us atcampfireaudio.comcampfire audio® names and logos are protected by USA Copyright and trademark and other global copyright protections
