SCWT 4G-LTE GSM P21 Wireless Router User Manual

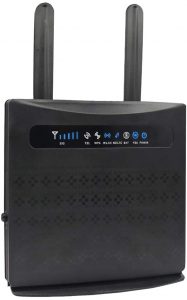

SCWT 4G-LTE GSM P21 Wireless Router

SCWT 4G-LTE GSM CELLULAR

The SCWT is indoor application only. The SCWT terminal will convert the 4G-LTE GSM network to VOLTE Analog output. Two analog RJ-11 ports are available. If the SCWT will be used other than Pach and Company products, we will not be responsible for compatibility issues.

To activate the SCWT, you must do the followings
  1. Obtain ACTIVATED AT&T Standard SIM card. A SIM card adapter must be used for Micro and Nano SIM card as below.
  2. Insert the SIM CARD into the SCWT SIM CARD slot.
  3. Use the included power supply 12Vdc 1A, press the Power switch to turn On.
  4. Connect a laptop to the LAN port with the ethernet cable provided, open the browser or connect via WIFI, SSID and WIFI KEY are on the back of the unit. Type the following IP to go to programming page.IP: 192.168.0.1Username: adminPassword: admin

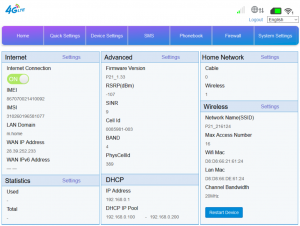

  5. Set Access Point Name (APN), Click Device Settings, see picture below

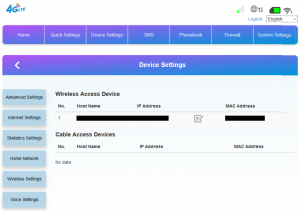

  6. Click on Internet Settings, see picture below
  7. Select Network Selection as Automatic. Then Click on APN, see picture below
  8. Type the service provider APN, case sensitiveAT&T APN: broadband, phone or NXTGENPHONE
  10. You may change the Profile Name per your preference, click Apply. If the SCWT did not capture your service provider network, Restart the Device or change the APN
