17 – REMOTE CONTROL OPERATION INSTRUCTIONS

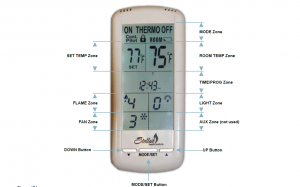

A.REMOTE ICON IDENTIFICATION
Remote:Skytech Premium Transmitter Model AF-4000TSS02 comes standard with the fireplace.Touch Screen LCDTakes four (4) AAA batteries (included)
B. REMOTE CONTROL INFORMATION
IMPORTANT ELECTRICAL WARNING AND INFORMATION
Electrical wiring must be installed by a licensed electrician.
- Do NOT wire 110V to wall switch.
- Uninterrupted or continuous power is required at all times in IPI systems EXCEPT when using battery back-up.
- Incorrect wiring will override IPI safety lockout and may cause an explosion.
- Disconnect 110V before servicing
A double receptacle box cover and (3) wire nuts are supplied in fireplace components packet to be used when hardwiring to electrical boxlocated under firebox on right side of fireplace.
IMPORTANT ELECTRICAL WARNING AND INFORMATION
THIS SYSTEM GOES THROUGH A CALIBRATION MODE WHEN SWITCHING FROM ‘ON’ TO ‘THERMO’ TO ‘OFF’ MODES, CREATING A HUMMING SOUND WHICH IS A NORMAL PART OF OPERATION.
17 – REMOTE CONTROL OPERATION
C. CONTINOUS PILOT – FOR VERY COLD CONDITIONS
The IPI gas control system has the option of a continuous (standing) pilot feature. This allows you to change from a spark-to-pilot system to a standingpilot system during cold weather conditions. By having the pilot on continuously, the firebox will remain warm and a draft is established in the vent,allowing the main burner to turn on with less air-flow disruption.When continuous pilot mode is activated, the pilot will spark and light. When fireplace is turned OFF, the pilot will remain lit when main burner has beenturned OFF.This pilot feature can be activated or de-activated by the hand held remote control transmitter or the switch on the module. Instructions on followingpage.
D. OPERATION USING BATTERY POWER
IMPORTANT NOTE
When operating fireplace in this capacity, the only function available is flame modulation.
- This fireplace has an optional battery operation if electrical power is lost (see Page 51, Figure 16B). Position battery pack with four “AA” sizebatteries installed between valve and front of fireplace. This is the coolest location under firebox, ensuring longer battery life.
- Next locate the fireplace’s control module (see Page 51, Figure 16A). The “Remote/Off” slide switch on the back side of the module must be slidinto the “Off” position to allow the battery pack to function.
- Once accomplished, the fireplace can be turned fully on or off using the On/Off Rocker Switch located on the front bracket of the valve assemblybelow.
NOTE: When in Battery Mode, the only functions available are turning the fireplace on or off.No flame adjustments are available nor will the remote control be available for the fan, ember lights, thermostat, etc.
E. MATCHING SECURITY CODES
Before matching security codes make sure 120V AC is connected and powered to fireplace, and hand held remote control is installedwith (4) AAA batteries. It may be necessary to program main control module to LEARN the security code of the hand held remote control upon initialuse, if batteries are replaced, or if a replacement remote control is purchased from your dealer
- When matching security codes, be sure slide button on maincontrol module is in REMOTE; the code will not “LEARN” if slideis in OFF.
- Program main control module to LEARN a new security code bypushing in LEARN button on main control module using a pencilpoint for 2 seconds and let go (you should hear a series of ‘beeps’letting you know module is ready to learn a new code).
- Immediately press MODE button on hand held remote control(you should hear four ‘beeps’ in rapid succession in main controlmodule, indicating remote control’s code has been programmedinto the main control module). When an existing main controlmodule is introduced to a new hand held remote control, the newsecurity code will overwrite the old one.
If it ever becomes necessary to clear the memory from the hand heldremote control, simply push and hold the LEARN button for 10 seconds(you should hear three long beeps in succession). You may now followsteps outlined above to ‘RE-LEARN’ security codes.
17 – REMOTE CONTROL OPERATION
F. INTITAL SET-UP
Plug Extension Module and AC Adaptor into receptacles.Install (4) AA batteries into battery compartment of Backup Battery Pack , making sure batteries are installed in proper direction. Position betweenvalve and front of stove. A Velcro strip has been attached to help secure in place.The Hand Held Remote operates on (4) AAA batteries. We recommend always using ALKALINE batteries to extend battery life and improveoperational performance.
G. GAS TYPE CONVERSION
Press and hold Learn Button on Main Control Module for 20 seconds. A beep will be heard letting you know the procedure has been completed.
- If converting from NAT to LP gas: (1) one second long beep
- If converting from LP to Nat gas: (3) three second long beepContinue with gas type conversion by following instructions included with gas conversion kit.H. CELSIUS/
H. CELSIUS/FAHRENHEIT CONVERSION
Press UP and DOWN keys simultaneously to choose Celsius or Fahrenheit.
I. IMPORTANT SAFETY FEATURE
This system has a maximum room temperature limit of 90° F (32° C) in both manual and thermostat modes. When room temperature is at or abovethis point the system will shut down and the hand held remote control will read OFF. If you turn the system ON when room temperature is still at orabove this temperature, the system will again shutdown after 2 minutes when room temperature is recalculated.
J. CONTINUOUS PILOT FEATURE
Activation of this optional feature is accomplished by pressing the MODE/SETbutton and ARROW UP buttons simultaneously for 5 seconds. The continuouspilot icon will appear on the LCD screen. Pressing both buttons again for 5seconds will de-activate this feature.This feature can also be activated via CONTINUOUS PILOT switch on MainControl Module.
K. CHILDPROOF FEATURE
Activation of this optional feature is accomplished by pushing MODE/SETbutton and ARROW DOWN buttons simultaneously for 5 seconds.Thechildproof icon will appear on the LCS screen. When a transmitter buttonis pressed the icon will flash on screen, but no signal will be transmitted.Pressing and holding these same two buttons again for more than 5seconds will de-activate this function.This feature controls only manual functions of the hand held remote,automatic functions (thermostat mode) will not be affected.
L. MANUAL MODE
This remote can be manually or thermostatically operated.Press MODE/SET button for manual ON. The flame icon will appear onthe LCD screen. Press MODE/SET button again to put the control intoTHERMO mode. Pressing MODE/SET again will turn fireplace OFF.
IMPORTANT NOTE
The MODE/SET button operates in a series that will cycle from ON toTHERMO to OFF.

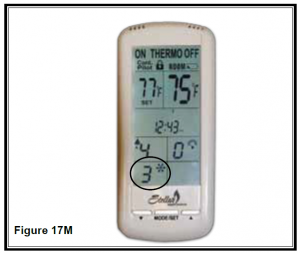

M. FAN MODE
This remote will operate the fan, allowing for (6) different speed levels.Press the MODE/SET button. The FAN icon (*) will light up. Press theFAN icon on the LCD screen, then the UP or DOWN ARROWS to selectthe desired fan speed level. Press the MODE/SET button to set or wait15 seconds and the control will automatically accept the new setting, exitfunction setting mode and LCD display will return to normal view.
IMPORTANT NOTE
Delayed ON/OFF – The fan will not turn on until fireplace has beenburning for 5 minutes and will not turn off for 12 minutes afterfireplace has been turned off.EXCEPTION: If fireplace is turned back on during 12 minute offdelaytime frame, the fan will remain on. This applies to MANUAL andTHERMO modes.

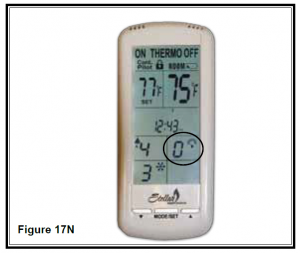

N. LIGHTING MODE
This remote will operate the lights, allowing for (6) different light levels.When LIGHT button is pressed, Press the MODE/SET button. The LIGHTicon will appear on the LCD screen. Press the LIGHT icon on the screen.Press UP or DOWN buttons to select desired light level. Press the MODE/Set button or wait 15 seconds and the control will automatically accept thenew setting, exit function setting mode and LCD display will return to normalview.
NOTE
The fireplace does not have to be burning to operate the lights.

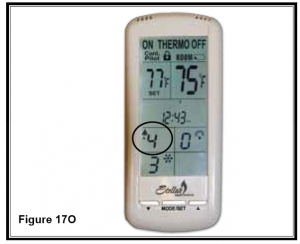

O. FLAME MODE
This remote will operate the flame, allowing for (6) different flame heightlevels. Press the MODE/SET button. The FLAME icon will appear on theLCD screen. Press the FLAME icon on then screen, then ress UP or DOWNbuttons to select desired flame level. Press the MODE/SET button to set orwait 15 seconds and the control will automatically accept the new setting,exit function setting mode and LCD display will return to normal view.
IMPORTANT NOTE
The fireplace will initially light at the highest level. After 5 seconds the flame will adjust to last chosen level before fireplace was turnedOFF. This applies to MANUAL and THERMO modes.
P. THERMO (THERMOSTATE) MODE
This remote feature allows you to thermostatically control the fireplace when hand heldremote is set to THERMO mode.Set Temperature Range: 45˚F (7˚C) to 90˚F (32˚C).Set remote to THERMO mode by pressing MODE/SET button twice. “ON THERMO”will appear on the LCD screen. Touch the SET TEMP ZONE on the screen, then pressthe UP or DOWN ARROW buttons to the desired temperature. Within 5 seconds fireplacewill operate to that set temperature.Set temperature will only appear when THERMOSTAT MODE is activated, but isimplemented in all MODES with the exception of MANUAL MODE.To exit THERMO mode, press the MODE/SET button. This also shuts the fireplace OFF.
IMPORTANT NOTE
The flame height can adjust up to (6) different height levels according to amount of heat required. This range however is dictated by theFlame Level setting (see previous page). When desired temperature is met, the fireplace will shut off until more heat is required.
IMPORTANT NOTE
When in THERMO mode the fireplace will not turn on until room temperature falls below SET TEMPERATURE.
Q. SET THE DAY AND TIME DISPLAY
The current day of the week and time of day will be continuously displayed in theTIME/PROG Zone (except during SET UP operations).The day of the week will be displayed as one of the following: S, M, T, W, T, F, S.The Time of day will be in 12-hour AM, 12-hour PM format with midnight beingdisplayed as 12:00am.DAY – Press and hold the MODE Zone or the MODE/SET button for 5 seconds.Press the UP or DOWN buttons to adjust to the desired day of the week.Press the MODE/SET button to set or wait 15 seconds and the control willautomatically accept the day, then enter the hour of day adjustment.HOUR: Press the UP or DOWN buttons to adjust the hour of the day. Thetime will advance in 1-hour increments; AM and PM will change when the houradvances to 12:00 midnight and 12:00 noon respectively. Once the desired timeof day is displayed, press the MODE/SET button to set or wait for 15 secondsand the control will automatically accept the hour, then enter minute of houradjustment.MINUTE(S): Press the UP or DOWN buttons to adjust the minute of the hour.The time will advance in 1-minute increments. Press the MODE/SET buttononce the desired minute is reached or wait 15 seconds and the control willautomatically accept the new time, and exit DAY/TIME Setup and return tonormal screen operation.

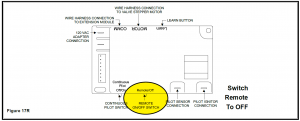

R. SYSTEM OPERATION WITHOUT HANDHELD REMOTE
This system is designed to operate with the hand held remote or a thermostat, but in the unlikely event that it is required to be operated without thehand held remote or a thermostat, follow this simple procedure.Slide REMOTE /OFF switch on main control module to OFF. The fireplace can now be lit and shut off by use of the ON/OFF rocker switch locatednext to the module.
IMPORTANT NOTE
When operating fireplace in this capacity, the only function available is burner operation on HI.
