SOLID STATE SCGSS01006 Commercial Gas Water Heaters Instructions
SANDBLASTER®
SELF-CLEANING COMMERCIAL GAS WATER HEATER — SBD MODELSSandblaster® is the original money-saving self-cleaning water heater. It provides outstanding performance and installation flexibility for new construction and replacement applications. The Sandblaster SBD series offers installer-friendly features, including compact low-profile design, multiple options for water connections and low installation clearances.
FACTORY-INSTALLED DRAFT DIVERTER AND AUTOMATIC FLUE DAMPER (SBD-120-400 MODELS)
- Low-profile draft diverter helps for installation in tight spaces
- Automatic motorized flue damper helps minimize standby heat loss
- SBD85-500 Model features induced draft design and no damper
THREE WATER CONNECTION OPTIONS FOR ADDED FLEXIBILITY
- Hot and cold water connections can be made through front, top or back of unit
- HYDRO CANNON™ system operates when cold water is connected through front
PERMAGLAS® ULTRA COAT™ GLASS LINING
- Exclusive process provides superior protection against corrosion
- CoreGard™ anode rods with stainless steel core provide additional corrosion protection
INTERMITTENT ELECTRONIC IGNITION
- Eliminates standing pilot, saves energy
- Includes power ON/OFF switch
- Provides flame failure response in less than one second
ACTORY- INSTALLED, CSA CERTIFIED AND ASME RATED T&P RELIEF VALVE
MAXIMUM HYDROSTATIC WORKING PRESSURE: 160 PSI
CODES AND STANDARDS
- Design-certified by UL (Underwriters Laboratories), according to ANSI Z.21.10.3 – CSA 4.3 standards governing storage-type water heaters
- Meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition of ASHRAE/IESNA 90.1
- Design-certified by Underwriters Laboratories Sanitation to NSF Standard 5 for 180°F (82°C) water
- Optional ASME tank construction available on select models
HYDRO CANNON™ SELFCLEANING SYSTEM
- Designed to significantly reduce or eliminate sediment build-up inside the tank
- Reduced sediment build-up maintains rated thermal efficiency and reduces water heating costs
- Self-cleaning system maximizes tank life
3-YEAR LIMITED TANK / 1-YEAR LIMITED PARTS WARRANTY
For complete warranty information, consult written warranty or statewaterheaters.com
OTHER SANDBLASTER® FEATURES
FULLY AUTOMATIC CONTROL SYSTEM
- Manual-reset gas shut-off device prevents excessive water temperature
- Adjustable thermostat with 120ºF — 180ºF range
- Gas pressure regulator and pilot filter
HANDHOLE CLEANOUT
- Allows easy access to tank interior for cleaning
PLUG KITS
- Pipe nipples and caps included to plug unused water connections SANDBLASTER® options:
MANIFOLD KITS FOR MULTIPLE HEATER INSTALLATIONS
- 2-unit kit, Part Number 100109228
- 3-unit kit, Part Number 100109229
- 4-unit kit, Part Number 100109230
OPTIONAL LEG KIT TO MEET NSF STANDARD 5
- For all SBD models, Part Number 100109227
MECHANICAL VENTING KITS
- For SBD71 120NE through SBD100 199NES, Part Number 100110445
- For SBD100 250NE through SBD100 390NE, Part Number 100109235
- For installation of approved power venter to operate in conjunction with water heater thermostat
- Field wiring should conform to latest version of the National Electric Code ANSI/NFPA No.70
- For more information, consult manual shipped with water heater or contact the State Technical Support Center at 1-800-365-0024
| Water Connections in Inches | ||||||
| Model Number | Inlet | Outlet | ||||
| Top | Front | Back | Top | Front | Back | |
| SBD71 120NE | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD81 154NE | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD76 180NE | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD100 199NET | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD81 199N | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD100 199NES(A) | 1-1/2 | 2 | 2 | 1-1/2 | 2 | 2 |
| SBD100 250NE(A) | 1-1/2 | 2 | 2 | 1-1/2 | 2 | 2 |
| SBD65 251NE(A) | N/A | 1-1/2 | 1-1/2 | N/A | 1-1/2 | 1-1/2 |
| SBD100 275NE(A) | 1-1/2 | 2 | 2 | 1-1/2 | 2 | 2 |
| SBD65 305NE(A) | N/A | 1-1/2 | 1-1/2 | N/A | 1-1/2 | 1-1/2 |
| SBD85 365NE | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
| SBD100 390NE(A) | 1-1/2 | 2 | 2 | 1-1/2 | 2 | 2 |
| SBD85 500NE(A) | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
When ordering LP gas, Change the “N” to “P” in the model number. exp. SBD71 120PE

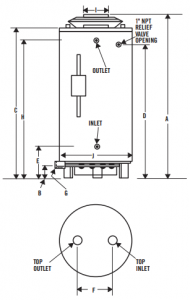

Dimensions
GAS CONNECTION MODELS SDB85 100-390
TOP VIEW MODEL SBD85 500
| Model Number | Inches or CM | Dimensions | Approx. Shipping Weight | ||||||||||
| A | B | C | D | E | F | G | H | I | J | Standard | ASME | ||
| SBD71 120NE* | Inches | 69-3/4″ | 4-1/4″ | 59-1/2″ | 50-7/8″ | 19-11/16″ | 19″ | 1/2″ | 51-7/8″ | 6″ | 27-3/4″ | 400 lbs. | – |
| CM | 177 | 11 | 151 | 129 | 50 | 48 | – | 132 | 15 | 71 | 182 Kg | – | |
| SBD81 154NE | Inches | 67-1/2″ | 4-1/2″ | 62″ | 53-1/2″ | 20-1/2″ | 21″ | 1/2″ | 54-5/8″ | 6″ | 27-3/4″ | 470 lbs. | – |
| CM | 171 | 12 | 157 | 136 | 52 | 53 | – | 139 | 15 | 71 | 213 Kg | – | |
| SBD76 180NE | Inches | 67-1/2″ | 4-1/2″ | 62″ | 53-1/2″ | 20-1/2″ | 21″ | 1/2″ | 54-5/8″ | 6″ | 27-3/4″ | 576 lbs. | – |
| CM | 171 | 12 | 157 | 136 | 52 | 53 | – | 139 | 15 | 71 | 261 Kg | – | |
| SBD100 199NET | Inches | 75″ | 4-1/2″ | 70 | 61-1/2″ | 20-1/2″ | 21″ | 1/2″ | 62-5/8″ | 6″ | 27-3/4″ | 603 lbs. | – |
| CM | 192 | 12 | 178 | 157 | 52 | 53 | – | 159 | 15 | 71 | 273 Kg | – | |
| SBD81 199N | Inches | 67-1/2″ | 4-1/2″ | 62 | 53-1/2″ | 20-1/2″ | 21″ | 1/2″ | 54-1/8″ | 6″ | 27-3/4″ | 470 lbs. | – |
| CM | 171 | 12 | 157 | 136 | 52 | 53 | – | 139 | 15 | 71 | 213 Kg | – | |
| SBD100 199NES(A) | Inches | 72″ | 4-1/2″ | 65-1/8″ | 55-7/8″ | 19-3/4″ | 23″ | 1/2″ | 56-3/8″ | 6″ | 30-1/4″ | 630 lbs. | 725 lbs. |
| CM | 183 | 12 | 165 | 142 | 50 | 58 | – | 143 | 20 | 77 | 286 Kg | 329 Kg | |
| SBD100 250NE(A) | Inches | 72″ | 4-1/2″ | 65-1/8″ | 55-7/8″ | 19-3/4″ | 23″ | 1/2″ | 56-3/8″ | 8″ | 30-1/4″ | 630 lbs. | 725 lbs. |
| CM | 183 | 12 | 165 | 142 | 50 | 58 | – | 143 | 20 | 77 | 286 Kg | 329 Kg | |
| SBD65 251NE(A) | Inches | 75″ | 4-1/2″ | 65-3/4″ | 57-1/4″ | 20″ | N/A | 1/2″ | 58-3/4″ | 8″ | 27-3/4″ | 750 lbs. | 862 lbs. |
| CM | 191 | 12 | 167 | 145 | 51 | N/A | – | 149 | 20 | 70 | 341 Kg | 391 Kg | |
| SBD100 275NE(A) | Inches | 72″ | 4-1/2″ | 65-1/8″ | 55-7/8″ | 19-3/4″ | 23″ | 1/2″ | 56-3/8″ | 8″ | 30-1/4″ | 630 lbs. | 725 lbs. |
| CM | 183 | 12 | 165 | 142 | 50 | 58 | – | 143 | 20 | 77 | 286 Kg | 329 Kg | |
| SBD65 305NE(A) | Inches | 75″ | 4-1/2″ | 65 – 3/4″ | 57-1/4″ | 20″ | N/A | 1/2″ | 58-3/4″ | 8″ | 27.75 | 750 lbs. | 862 lbs. |
| CM | 191 | 12 | 167 | 145 | 51 | N/A | – | 149 | 20 | 70 | 341 Kg | 391 Kg | |
| SBD85 365NE | Inches | 79-1/2″ | 4-1/2″ | 70-1/4″ | 62-1/2″ | 22-1/2′ | 23″ | 3/4″ | 63″ | 8″ | 27-3/4″ | 725 lbs. | 833 lbs. |
| CM | 202 | 12 | 178 | 159 | 57 | 58 | – | 160 | 20 | 71 | 329 Kg | 379 Kg | |
| SBD100 390NE(A) | Inches | 75-1/2″ | 4-1/2″ | 67-1/2″ | 58-1/4″ | 26-3/4″ | 23″ | 3/4″ | 59″ | 8″ | 30-1/4″ | 760 lbs. | 874 lbs. |
| CM | 192 | 12 | 171 | 148 | 68 | 58 | – | 150 | 20 | 77 | 345 Kg | 396 Kg | |
| SBD85 500NE(A) | Inches | 81-1/2″ | 17.5″ | 77-1/4″ | 67-1/2″ | 27-1/8″ | 21″ | 1″ | 67-1/2″ | 8″ | 27-3/4″ | 812 lbs. | 857 lbs. |
| CM | 209 | 44 | 196 | 171 | 69 | 53 | 3 | 171 | 20 | 70 | 368 Kg | 389 Kg |
When ordering LP gas, Change the “N” to “P” in the model number. exp. SBD71 120PE*Model SBD71 120NE is shipped with a 6” x 5” flue outlet adapter.**Models SBD100 250NE,SBD65 251NE, SBD100 275NE and SBD85 500NE are shipped with a 8” x 6” flue outlet adapter.Standard models certified for sea level to 2,000 ft. elevation. Order SMR S54 for elevations up to 8,000 ft. SBD85 500NE model features induced draft design and no damper. Back side water connections, Inlet and outlet, are represented by “E” and “H” respectively for height dimensions.
| Model Number | Input BTU/HR | Gallons or Liters | Tank Size | Liters | Recovery – Gallons or Liters Per Hour at Degree Rise | ||
| 40°F | 100°F | 140°F | |||||
| 22°C | 56°C | 78°C | |||||
| SBD71 120NE* | 120,000 | U.S. Gallons | 71 | GPH | 291 | 116 | 83 |
| Liters | 268 | LPH | 1102 | 439 | 314 | ||
| SBD81 154NE | 154,000 | U.S. Gallons | 81 | GPH | 373 | 149 | 107 |
| Liters | 307 | LPH | 1412 | 564 | 405 | ||
| SBD76 180NE | 180,000 | U.S. Gallons | 76 | GPH | 434 | 174 | 124 |
| Liters | 288 | LPH | 1643 | 659 | 469 | ||
| SBD100 199NET | 199,000 | U.S. Gallons | 100 | GPH | 482 | 193 | 132 |
| Liters | 379 | LPH | 1825 | 731 | 500 | ||
| SBD81 199NE | 199,000 | U.S. Gallons | 81 | GPH | 482 | 193 | 132 |
| Liters | 307 | LPH | 1825 | 731 | 500 | ||
| SBD100 199NES(A) | 199,000 | U.S. Gallons | 100 | GPH | 482 | 193 | 132 |
| Liters | 379 | LPH | 1825 | 731 | 500 | ||
| SBD100 250NE(A) | 250,000 | U.S. Gallons | 100 | GPH | 606 | 242 | 173 |
| Liters | 379 | LPH | 2294 | 918 | 655 | ||
| SBD65 251NE(A) | 251,000 | U.S. Gallons | 65 | GPH | 608 | 243 | 174 |
| Liters | 246 | LPH | 2303 | 921 | 658 | ||
| SBD100 275NE(A)** | 275,000 | U.S. Gallons | 100 | GPH | 667 | 267 | 190 |
| Liters | 379 | LPH | 2524 | 1009 | 721 | ||
| SBD65 305NE(A) | 305,000 | U.S. Gallons | 65 | GPH | 739 | 296 | 211 |
| Liters | 246 | LPH | 2799 | 1120 | 800 | ||
| SBD85 365NE(A) | 365,000 | U.S. Gallons | 85 | GPH | 885 | 354 | 253 |
| Liters | 322 | LPH | 3349 | 1340 | 957 | ||
| SBD100 390NE(A) | 390,000 | U.S. Gallons | 100 | GPH | 970 | 388 | 277 |
| Liters | 379 | LPH | 3671 | 1468 | 1049 | ||
| SBD85 500NE(A) | 500,000 | U.S. Gallons | 85 | GPH | 1212 | 485 | 346 |
| Liters | 322 | LPH | 4588 | 1835 | 1311 |
When ordering LP gas, Change the “N” to “P” in the model number. exp. SBD71 120PE*Model SBD71 120NE is shipped with a 6” x 5” flue outlet adapter.**Models SBD100 250NE,SBD65 251NE, SBD100 275NE and SBD85 500NE are shipped with a 8” x 6” flue outlet adapter. Standard models certified for sea level to 2,000 ft. elevation. Order SMR S54 for elevations up to 8,000 ft. SBD85 500NE model features induced draft design and no damper. Recovery based on 80% efficiency
SPECIFICATION
(Natural or Propane) gas water heater(s) shall be State SANDBLASTER® model # _____________ or equal, with a storage capacity of __________ gallons, an input rating of ___________________ BTUs per hour, a recovery rating of_________ gallons per hour (gph) at 100ºF rise and a maximum hydrostatic working pressure of 160 psi. Water heater(s) shall be protected against overheating caused by the buildup of scale, film and other sediment by a self-cleaning device, positioned inside the tank so that it directs the flow of inlet water to keep precipitated solids in suspension so that they are removed from the water heater on that or successive draws. Glass lined water heater(s) shall also be protected against electrolytic corrosion by multiple factory-installed anode rods. In addition, water heater(s) shall: 1) Be equipped with an integrated control system consisting of a 180ºF adjustable thermostat with upper and lower sensing bulbs. 2) Be equipped with intermittent electronic ignition, a manual reset gas shutoff device, a gas pressure regulator, factory-installed, CSA Certified and ASME Rated T&P relief valve and 2-3/4˝ x 3-3/4˝ tank inspection port. 3) Be design-certified by UL (Underwriters Laboratories) to current edition of ANSI Z.21.10.3 – CSA 4.3 standards governing storage-type water heaters. 4) Meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and Current Edition of ASHRAE/ IESNA 90.1. 5) Have a 3-year limited warranty against corrosion as outlined in the written warranty.
