SONNENKONIG 10200701 Wengen Air Cleaner User Manual

SONNENKONIG 10200701 Wengen Air Cleaner

Safety instructions

• Only use the air purifier as described in this manual.
• Before plugging in, ensure that the voltage is equal to that specified on the product data plate (AC220-240V/50Hz).
• The purifier must be positioned on a flat, stable surface. To avoid the risk of electric shock, short circuits, and fire, do not use the appliance if the power cord is damaged or if the electrical socket has worked loose.
• To disconnect the purifier, push the switch to OFF and remove the plug from the socket. When removing the plug, grasp the plug and not the cord. Do not use extensions.
• Do not damage the cord by winding it around sharp corners, twisting it, resting heavy objects on it, positioning it close to hot surfaces, or allowing it to hang from the edge of a table.
• Do not make changes to the purifier. If the purifier needs to be repaired or a damaged power cord requires replacement, contact an authorized service center.
• Before cleaning the purifier or removing the collector, turn the appliance off and unplug.
• Never touch the plug or purifier with wet hands.
• Do not operate the purifier in the presence of mosquito sprays.
• The purifier is not fitted with protection against humidity. As such, only use inside and away from showers, baths, and washbasin, or similar such places.
• Not suitable for outdoor use.
• Do not immerse in water or other liquids.
• Do not operate near a heater.
• Do not use near flammable gases such as natural gas or propane.
• Do not use near flames, kitchen appliances or heating appliances or, more generally, a hot surface.
• To avoid risk of accidents, keep the purifier away from children and the disabled.
• Do not put fingers and/or any objects in the air inlet/outlet grilles.
• Do not place objects on top of the appliance.
• When not in use for long periods, remove the plug from the socket.
• If rugs are present, the purifier must not be used on the floor. Optimal distance from the floor is 90 cm.
• Do not use the purifier with plugs other than that supplied with the purifier.

Overview

1. Handle
2. Air-Outlet
3. Control Panel
4. Air-Intake and Filter
5. Sensor
6. Remote control

(A) Quality indicator(B) Filter Control lamp(C) Timer(D) ON / OFF (Colour Indicator)(E) Air speed(F) Child-Lock

Operation

1. ON / OFFPress the on/off switch to switch the unit on and off. When the unit is switched on, it switches to automatic mode
2. TimerThe working time of the device can be set by the timer button. Set the time to 1 h, 2 h, 4 h or 8 h.
3. AirspeedPress the wind speed button to change the speed of the ventilation or to select the auto mode. In Auto Mode, the air speed is selected based on the surrounding air quality:1-100              Green         Good Quality                 1. Gear101-200          Yellow        Medium Quality              2. Gear201-500          Red            Bad Quality                     3. Gear
4. Child-LockWhen the parental control button is pressed, the key function of the device goes into a locked state and all keys cannot be operated. Long Press this button for 3 seconds to cancel the lock.
5. Filter / WIFI-ResetThis unit is equipped with a time-controlled filter change function which fl ashes until the request to change the filter after 1500 hours. Press and hold the button for 5 seconds to clear the filter display and reset the function.If you want to reset the WIFI setting of the device, switch the device to standby mode with the OFF button and press the reset button for 5 seconds. The WIFI indicator should now fl ash and you can set up the device again.

WIFI setup

Please proceed as follows to remotely control your device via WIFI.

1. Start the Play Store (Android) or App Store (Apple) on your smartphone and search for the «SMART REMOTE KING» from SONNENKÖNIG. Download the app.
2. The app will be installed on your smartphone.
3. Open the app and select «Register».
4. Enter your mobile phone number, the country code is already entered.
5. You will receive the so-called «confirmation code» by SMS. Enter the code and the password you have chosen within 60 seconds and select «Confi rm» to complete the registration.
6. Select «Add device»
7. From the alphabetical list, select the category: «Air purifier»
8. Enter the correct WIFI password.
9. Select «Close» when the connection has been successfully established. If no connection has been established, follow the instructions on the app.
10. The operation screen of the machine appears.
11. Select «…» at the top right of the operation screen and then select «Change device name» to give your device a logical name so that you know which device it is.Your device and smartphone are now set up for remote control via WIFI.

Cleaning

TURN OF THE DEVICE AND REMOVE IT FROM THE POWER SUPPLY BEFORE CLEANING / MAINTENANCE

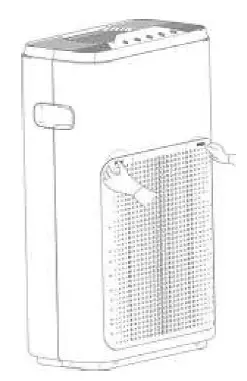

Remove the fi lter cover by pressing the two markers with the inscription: „PUSH“.After pushing it in, the cover should come towards you and you can now remove it.

Troubleshooting

Warranty / Disposal / Technical change

WarrantyThe Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

DisposalThe device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changesReserving technical changes in technology and designThis appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

CE Declaration of ConformityThis device complies with the following standards

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCTIn accordance with Article 26 of the Decree-Law of 31 March 2015 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2015/863/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L‘adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORSIn accordance with Legislative Decree 188 of 20 November, 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or inappropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg= Mercury, Cd= Cadmium, Pb= Lead.

CompanyArmin Schmid Olensbachstrasse 9-15 CH-9631 UlisbachTel. Int. +41 58 611 60 00Tel. Nat. 0848870850 www.sonnenkoenig.ch
