sorara Roma Double Vent User Manual

User Manual

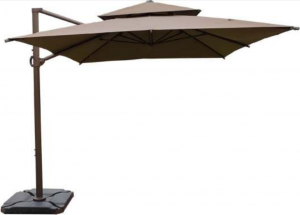

Roma Double VentProduct Code: R3-2.7×3.6-C

If you are satisfied with this product, please let us know. If you have questions, we’re always here to help! You know the strength of social media nowadays and we would appreciate a positive review on the website of your purchase. We appreciate the time you have taken and will actively use it to improve our products and service to you.

Please, visit our website www.sorara.eu for more information about our products and where you can purchase them.

[email protected]           www.sorara.eu

→ Triangle plastic base sell separately

Umbrella supplied is fully assembled. Please read instructions prior installation. Take all parts out of the box. If any parts are missing, please do not return to the place of purchase directly Please email us first [email protected]

NO	QTY	PHOTO
A	1PC
B	1PC
C	1PC
D	1PC
E	1PC
F	2PCS
G	6PCS
H	1PC
I	1PC
J	1PC
K	9PCS

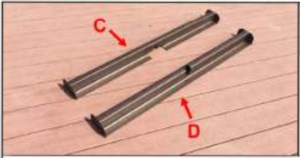

Step1. Place the ipper cross leg (C) over the lower cross leg (D) to form a”+”.

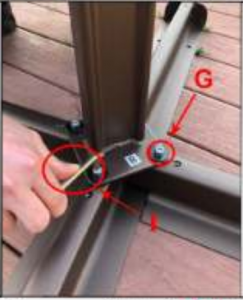

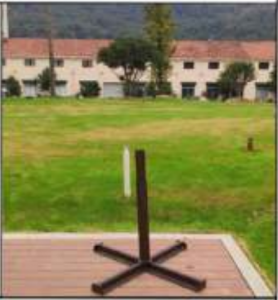

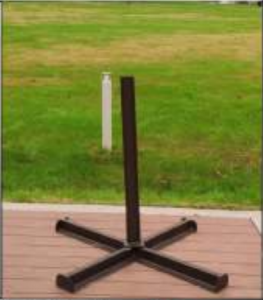

Step2. Place the tube (B) onto the cross with 4 bolts (G), tighten bolts with part (I).

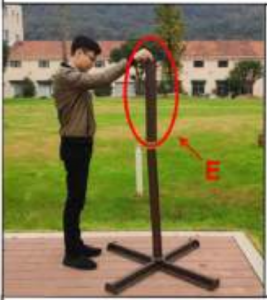

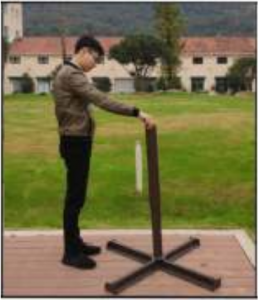

Step3. Insert the pole (E) onto the base pole (B). Pay attention to screw hole position.

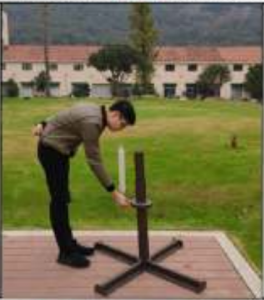

Step4. Place part (H) on the pole (E).

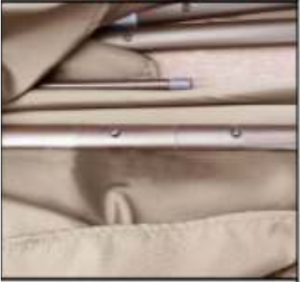

Step5. Connect each of the ribs to the four long ribs and tighten the screws.

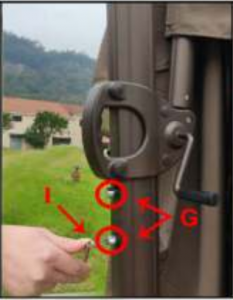

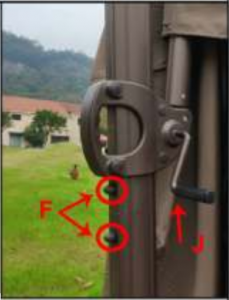

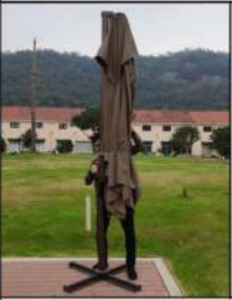

Step6. Insert the part (A) onto the assembled cross base. Then fix part (A) and part (B) with bolts (G). Cover caps (F) on those bolts.

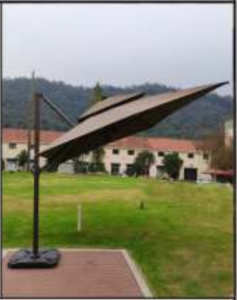

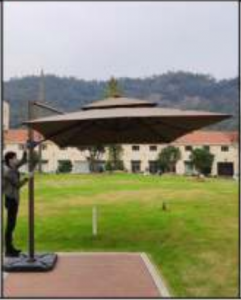

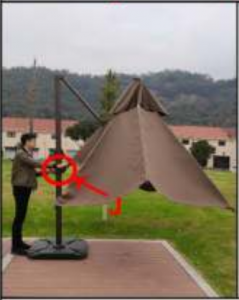

Step7. Insert the handle (J) into the handle hole on the slide sleeve to open umbrella.

Option: If the umbrella is used on the wooden deck, tighten the screws (K) with the base and the deck to keep the umbrella stable.

Caution: Please keep the base stable when open the umbrella. To keep your umbrella open with safety, we strongly suggest to purchase our ‘triangle plastic base’ together, and purchase hanging umbrella cover to protect your umbrella. Please search for “8719189103700” , “8719325290363“, “8719189100372” on amazon.
