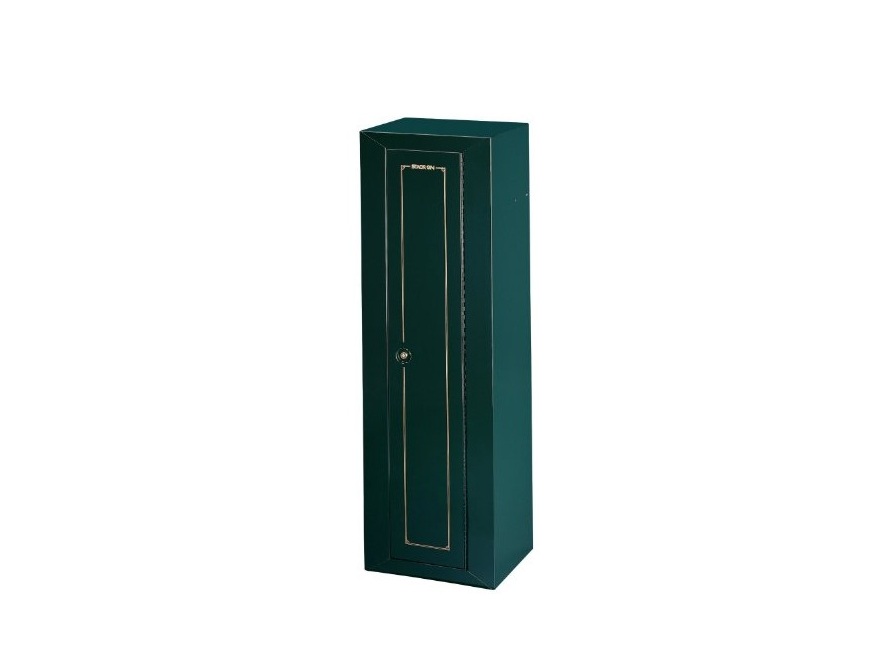

STACK-ON GC-910-5 Home Security Cabinet Installation Guide
IMPORTANT
Record the serial and key numbers from the back of the cabinet. You will need the serial number information in order to replace lost keys.
Do not store this document in your security cabinet. Keep keys in a secure place away from children.
NOTE: Assemble shelves before mounting the cabinet to a wall or floor. Exterior access is required for assembly. Review these instructions prior to installation.
Tools Required:
- Phillips screwdriver
- 7/16″ wrench
- Drill with 3/16″ bit
MODEL GC-910-5
INSTALLATION OF BARREL RESTS AND SHELF
Installation of Barrel Rests
Measure and mark the locations of the barrel rests on the innner sides of the cabinet using the dimension shown. (See figure 1)
To install the barrel rests to the cabinet, first remove the backing from the foam rests. For help in doing this, pinch the end of the foam to help secure the adhesive to the foam. Attach the barrel rests to the inner sides of the cabinet as shown.
Shelf Assembly
Assemble the shelf inside the cabinet with (4) 10-32 nuts and bolts as shown. (See figure 1) Place the bottom pad (A) in the bottom of the cabinet.
CABINET MOUNTING INSTRUCTIONS
Selecting a Location
Your Security Cabinet should be installed in an isolated, dry and secure area.
For greater security the cabinet must be fastened to a solid surface with a minimum space on either side. Ideally the cabinet would be installed on the side wall of a closet.(See figure 2)
The cabinet should be flat against the wall and floor. Remove the baseboard if necessary. (See figure 3)
Insert the plastic plugs in the cabinet’s top mounting holes if you are not installing the Pistol-Ammo cabinet on the top of the security cabinet.
Wall Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16″ centers of the wall studs. Drill new holes in the cabinet if necessary. (See figure 3)
Drill (4) 3/16″ pilot holes into the wall studs and secure the cabinet to the wall using (4 ea.) lag bolts and washers. (See figure 3)
Floor Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16″ centers of the wall studs. Drill new holes if necessary. (See figure 3)
Drill (2) 3/16″ pilot holes into the wall studs lining up with the top (2) mounting holes in the back of the cabinet. Secure the cabinet to the wall using (2) lag bolts and washers.
Drill (2) pilot holes and secure the cabinet bottom to the floor with (2) lag bolts and washers.
MODEL GC-500-5
PISTOL-AMMO CABINET ASSEMBLY
IMPORTANT: Install the shelf before mounting the cabinet to a wall. Install shelf with (4) 10-32 nuts and bolts. (See figure 4) Place foam pad in bottom of cabinet. Insert the plastic plugs in the cabinet’s top mounting holes.
INSTALLATION OF GC-500-5 PISTOL-AMMO CABINET ON TOP OF SECURITY CABINET
NOTE: We recommend that security cabinet be installed as described above.IMPORTANT: Install the shelf before mounting the cabinet to a wall. Remove the top hole plugs from the cabinet by pushing out from the inside of the cabinet. Place the GC-500-5 on top and assemble with (2) 1/4-20 nuts and bolts. Do not tighten bolts. (See figure 5)
Drill (4) 3/16″ pilot holes into the wall studs and secure the GC-500-5 cabinet to the wall using (2) lag bolts and washers. (See figure 5) Tighten the (2) bolts that connect the cabinets.
IMPORTANT
Keep keys away from children. Keep this record of your serial and key numbers in a secure place separate from your security cabinet. If you lose your keys you will need this information as a reference for obtaining new keys. To order a replacement key set, follow the instructions on the attached form.
