STEG Digital Signal Processor
PRODUCT BRIEF INTRODUCTION
PRODUCT DESCRIPTION-PRECAUTIONARY NOTES
The DSP is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters.It can connect to any factory system, even in vehicles featuring featuring an intergrated audio processor, since, thanks to the. De-equalization function, the DSP will send back a linear signal. It features selectable High and low level inputs as well as 3.5MM Aux and digital inputs that feed 8 completely variable output channels. Each output channel has a 31-band equalizer available.it also features a 66-freqency electronic crossover as well as . BUTTERWORTH or LINKWITZ filters with 6-24dB slopes and a digital time delay line. the user canselect adjustments. That allow him or her to interact with the DSP through a remote control device called DRC.WARNING: 1-a PC provided with Windows XP, Windows Vista or Windows 7 operating system,1.5GHz minimum. Processor speed ,1 GB RAM minimum memory and a graphics card with a minimum resolution. Of 1024×600 pixels are required to install the software and setup the DSP. 2-Before connecting you DSP, carefully read this manua .Improper connections may cause damage to The DSP or to the speakers in the car audio system.
PACKAGING CONTENTS
DSP AND DRC INSTALLATION

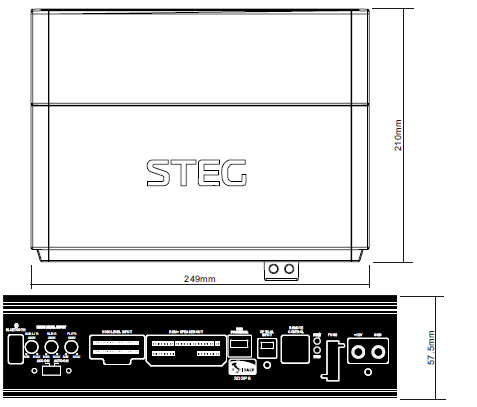

External dimensions
How to install
WARNING: do not use aggressive cleaning agents or abrasive cloth to clean the display.Simply use a soft cotton colth lightly damped with water

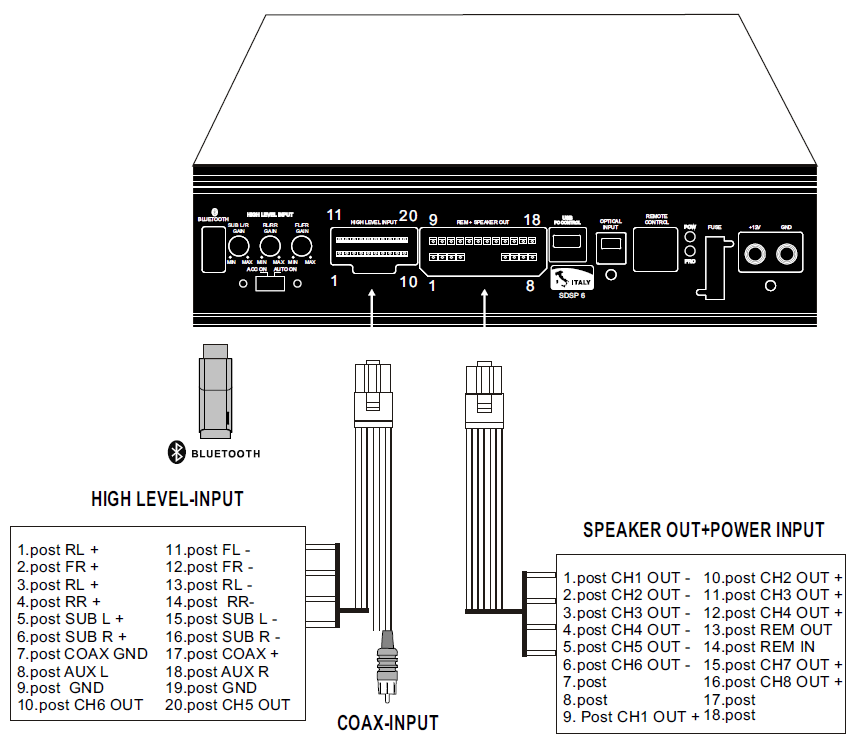

CONNECTION PANELS-DESCRIPTION
Input signals
INPUTS; FR-FL-RR-RL, SUB R-SUB L inputs(SPEAKERS)
The DSP comes with 6 HI-LEVEL signal inputs to connect amplified signal cables coming from the main Analog source. input sensitivity is adjustable from 2 to 15V RMS.
Remark: if a low-level output source (PRE OUT)with output signal equal or greater than 2 V RMS is available, you can Connect it to the high-level MASTER input(SPEAKERS). Sensitivity is increased by adjusting the IN LEVEL controls
USB signals
USB(type B)connection plug, to connect the processor to a PC and manage its functions through the DSP 3 Software. The connection standard is USB 1.1/2.0 compatible.
Input – remote control outputs and power supply
POWER SUPPLY
+12V: Positive connection terminal for car 12V power supply.GND: Power supply negative connection terminal(GND).WARNING: make sure the connection polarity is as indicated on the terminals. A misconnection.May result in damage to the DSP. After applying power, wait at least 10 secondsBefore turning the DSP on.
REMOTE IN-OUT
REM IN: input to turn on the processor remotely along with the audio signal remote Out.REM OUT: output to turn on other devices/amplifiers connected after the processor.From the REMOTE-IN signal, the processor only takes 1 second to supply the signal to the REM OUT output. The 130-mA output current capability can also drive an automotive relay (Making sure it does not exceed 130 mA).
CONNECTIONS
Power supply and remote turn on
WARNING: to power the device, use 1 mm (16 AWG) cables.
Remark: the DSP is internally protected by a Fuse-resistor soldered on its printed circuit board To replace it contact a service center. Using an External fuse is recommended, though it is not required.

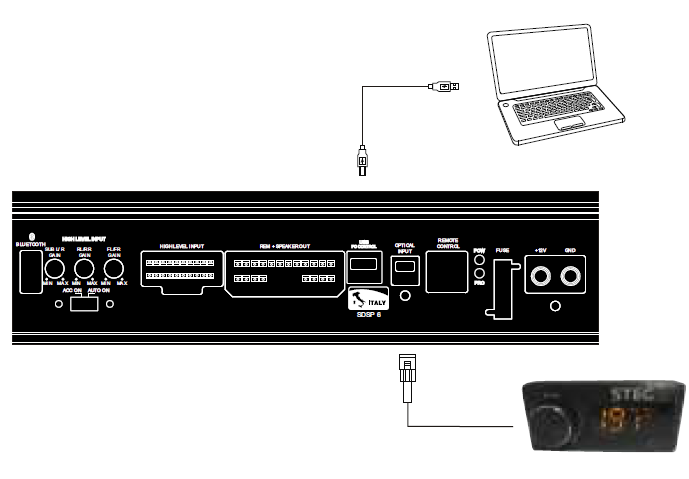

Personal computer and Digital Remote Control(DRC)

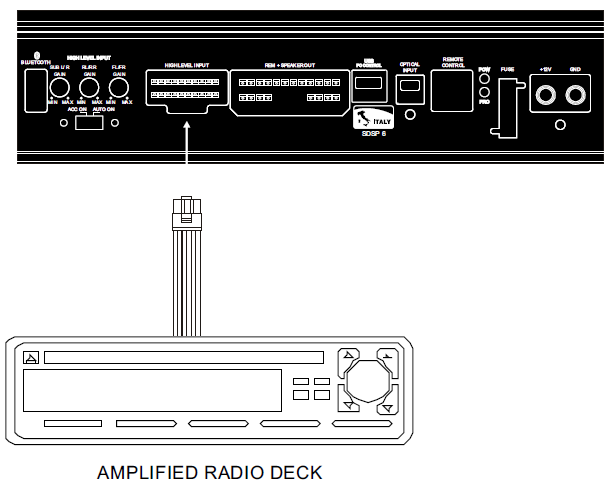

High-Level input signals
SPEAKERS IN HI-LEVEL STEREO FRONT+REAR+SUBWOOFER .

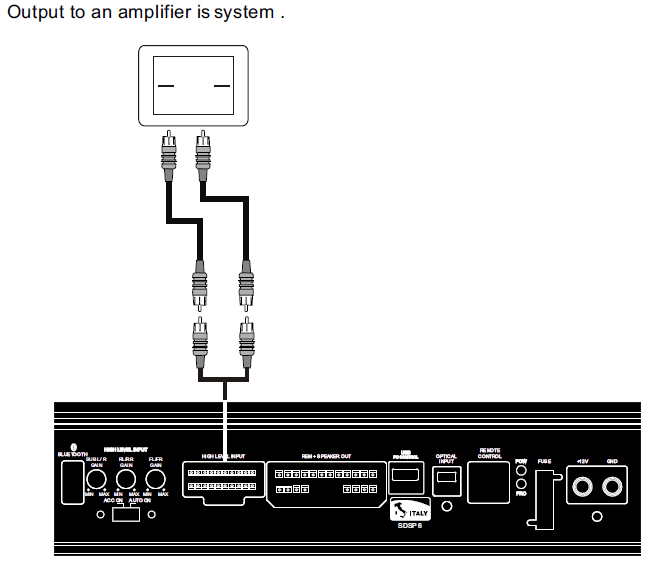

Output signals
Output to an amplifier is system

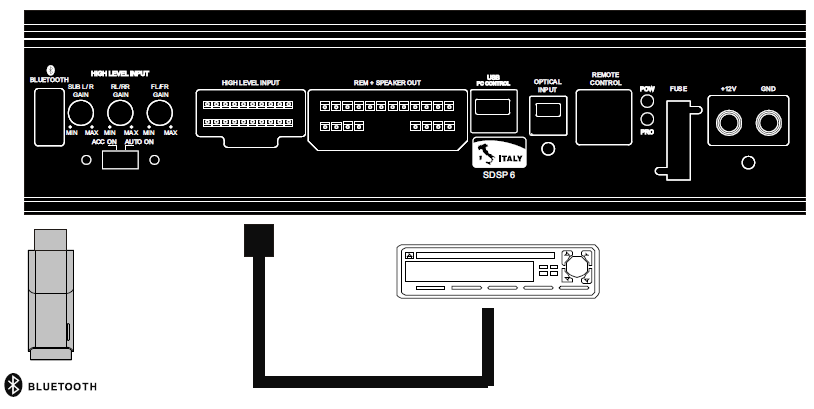

Low-Level ,BLUETOOCH input signals
Bluetooth IN :Insert the Bluetooth control module into the DSP . turn on your mobile phone and find the Bluetooth control mode. Click on the Bluetooth . When the control mode is automatically Paired successful . Then you can play the music.Output to an amplifier is system. DO NOT INSERT THE USB.
STAND INSTALLATION REFERENCE

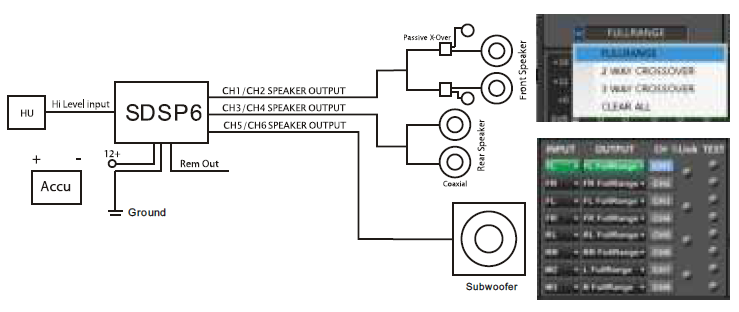

CHANNEL STAND ALONE TREBLE MODE
3 WAY CROSSOVER TREBLE MODE
REMOTE INTRODUCTION
- A. Main volume.B. When you press this button for a short time, It is in the MUTE state. And the close MUTE .C. When you press this button for a longer time(for a second) ,It will enter the menu mode . In the MODE or INPUT fishing. You can adjust the mode which you want.
- Main volume display window.
- DSP mode display window(1-8).
- Input display status.(CD.AUX.SPDIF.WIFI).

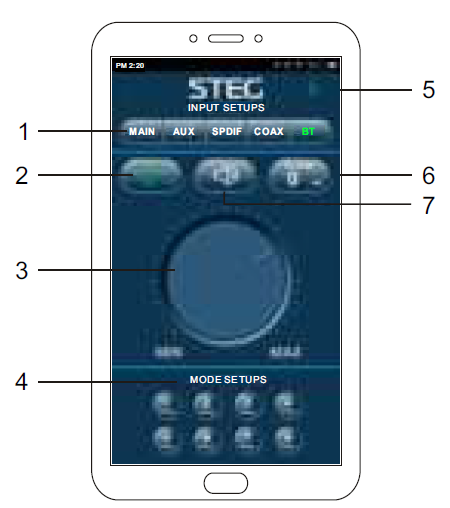

PHONE APP INTRODUCTION
Download DSP APP and install it on your phone
- Input ModeTo select different input devices MAIN.AUX.SPDIF.COAX.BLUETOOTH.
- Dsp Main volume display.
- Dsp Main volume control.
- MODE SETUPS (1-8POS) .
- Click on the Bluetooth. when the control mode is automatically paired successful. Then you can play the APP.
- Dsp subwoofer volume display.
- Speaker mute control.Remark: APP can not be joined to DSP when the computer is connected to DSP
