STELLIA B07NF1FRNH Circum-aural closed-back headphones User Manual

STELLIA B07NF1FRNH Circum-aural closed-back headphones

FOCAL JMLab, a stock company incorporated under the laws of France and registered with the trade and companies registered of Saint-Etienne under number 344 394 309 000 35, having its registered office at 108 rue de l’avenir, 42350 La Talaudière, France.

The speakers concerned by this manual use a pure Beryllium inverted dome tweeter system, capable to extend the bandwidth up to 40Khz.

Regarding the potential hazardousness of Beryllium, a raw material constituting the tweeter, some instructions (defined hereunder) must be respected by the user of these speakers in order to prevent any risk of absorption of said material.

Nevertheless, in solid form and based on the current state of knowledge at the date of printing of this precautionary manual, the risks are limited, being specified that the hazardousness of the Beryllium mainly results from its inhalation, ingestion or contact in vapour form or microparticles.

Characteristics of Beryllium

Carcinogenicity Category 1B H350 i: May cause cancer when inhaled
Acute toxicity – Category 2 H330: Fatal if inhaled
 Acute toxicity – Category 3 H301: Toxic if swallowed
Specific target organ toxicity, repeated exposure – Category 1 H372: Causes damage to organs through prolonged or repeated exposure
Serious eye damage / Eye irritation – Category 2 H319: Causes serious eye irritation
Specific target organ toxicity (single exposure) – Category 3 H335: May cause respiratory irritation
Skin corrosion / irritation – Category 2 H315: Causes skin irritation
Skin sensitivity – Category 1 H317: May cause an allergic skin reaction

Precautions of use

It is essential to scrupulously respect the following precautionary measures.

  1. Tweeters including a Beryllium dome should be handled with caution.As a consequence, the users of the speakers have in particular to strictly ensure that the protective grille and all protective means on the tweeter is well maintained and in no circumstance take the Beryllium from its original location. Generally, the speakers should be kept out of the reach of children, especially the access of the tweeters and the dome of Beryllium.
The Beryllium dome should never be in contact with abrasive material

Beryllium is a stable product at room temperature. Nevertheless, it reacts with the following acids: sulphuric, hydrochloric, and hydrofluoric (with hydrogen release).

Conditions to avoid: heat, sparks, open flame, or any other sources of ignition. Beryllium is incompatible with oxidizing agents, and also notably bromine pentafluoride and performic acids. It explodes when heated with magnesium.

In finely divided form, Beryllium is a moderately flammable product. In a contained space, dust cloud of the metal may explode in the presence of a source of ignition. In case of fire, Beryllium releases highly toxic smoke and vapour.

In case of fire, the recommended fire extinguishing agents are engineered powders for combustible metals or, failing that, other inert powders. It is also recommended to wear adequate personal protective equipment to prevent contact with the substance orits products of combustion  as well as full self-contained breathing apparatus.

  1. Generally, prevent skin or eye contact, ingestion or inhalation of all or part of the Beryllium dome. The manufacturer underlines the fact that its absorption by inhalation, dermal route or ingestion can cause severe physical afflictions.

In the event of damage to the dome

In the case that the Beryllium dome is damaged in whatever form, its whole surface should be covered over. In such case, it is recommended to contact your retailer in order to dismantle and replace the tweeter by the relevant department of the distributor.

If the dome is broken, particles of Beryllium must be carefully recovered and placed in a sealed plastic bag. It should be returned to the retailer at the same time as the speakers.

First aid

If inhaled: in case of inhalation of smoke or dust of Beryllium, bring the person outside or to a ventilated area and put the body into a half-sitting position so that the person can breathe comfortably. If not breathing, give artificial respiration. Take the person to the nearest medical emergency treatment centre or call a poison control centre.

In case of contact with eyes: flush immediately and bathe the eyes with water for 15 minutes or until removal  of the product. Remove contact lenses if present and if it is easy to remove them. It is recommended to see a doctor.

In case of contact with skin: immediately remove contaminated clothing and shoes. Throw away clothing and shoes. Wash the skin with soap and water for at least 15 minutes. Immediately and carefully clean the cuts and wounds. Any particles of Beryllium which stick under the skin must be removed. See a doctor

If swallowed: if victim is conscious and alert, rinse mouth with water and give some water to dilute. Seek immediate medical assistance. Never give any liquid if the victim is unconscious or convulsing. Vomiting should only be provoked by a doctor or poison control center’s order. See a doctor immediately.

End of life of the speakers

Your product Focal-JMLab was designed and made with materials and components of high quality susceptible to be recycled and reused.

This symbol means that any electric or electronic devices should be disposed of separately to household waste.

This device shall not be throw in the nature nor eliminated with household waste. This product should not be disposed of an where other than the municipal waste reception centre or to a centre of recycling

For further information about Beryllium, please contact us directly at: [email protected]

Type Circum-aural closed-back headphones
Impedance 35 Ohms
Sensitivity 106dB SPL / 1mW @ 1kHz
THD 0.1% @ 1kHz / 100 dB SPL
Frequency response 5Hz–40kHz
Loudspeaker 1.6″ pure Beryllium “M” shape dome
Weight 0.96lb
Cable provided
  • 1 x 4ft OFC 24 AWG cable with 1/8″ TRS Jack connector
  • 1 x 10ft OFC 24 AWG cable with 4-pin XLR connector
  • 1 x Jack adapter, 1/8″ female – 1/4″ male

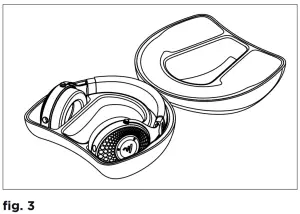

Carrying case provided 913/16″ x 97/16” x 43/4″

Correct elimination of this product.This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely

Focal-JMlab®– BP 374 – 108, rue de l’Avenir –42353 La Talaudière cedex – France – www.focal.comTel. (+33) 04 77 43 57 00 – Fax (+33) 04 77 43 57 04 –SCCG – 23/08/2021 – v4 – CODO1593
