Sunjoy Shed Instruction Manual

Sunjoy Shed Instruction Manual

WE HAVE YOU IN MIND, LET US SERVE YOU!

Important Safety Instructions

Warning!

To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo.Please check with your local governing authority/local municipal codes regarding installation of structures before assembly.

Caution!

Proper pla cement of youyour gazebo is essential.Do not place the product underneath electrical lines. Keep children away during assembly.This product contains small parts which can be swallowed by children.Keep fingers away from the places where they can be pinched or trapped. Do not attempt to assemble the gazebo if any parts are missing.

• This product is intended for domestic outdoor use only.
• The product should be placed on flat, horizontal ground.
• Ensure enough clearance around the product. Before assembling the product, find levelground not less than 6′ (1.8 m) away from any structures or obstructions, such asfences, garages, houses, overhanging branches, laundry lines, or electrical wires.
• This gazebo is not to be regarded as part of a building/house structure. The gazebo isto be anchored onto the ground for added safety. Do not assemble the gazebo ontosoil/earth ground. It is best advisable to have the gazebo built onto a wooden deck orconcrete ground for stability. If it is to be build onto a wooden deck/ground, doensure that the wooden deck/ground has a strong foundation. It is advisable to useappropriate floor plugs (not provided) to anchor the gazebo onto the wooden/concreteground.
• Some structures may require two or more people to install safely. Check forunderground utilities before digging or driving stakes into the ground.
• During installation, follow all safety warnings provided with your tools, and use safety glasses.
• In case you set up more than one gazebo, keep a minimum distance of 10′ (3 m)between the gazebos.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Keep children and pets away while setting up the gazebo.
• Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
• Repairing and replacing parts should be done by a qualified technician.
• This gazebo is intended for decorative and sunshade purposes only, and it is notdesigned to withstand harsh weather, including high winds, rain, and snow.
• Do not light any fires inside or near the product!
• Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo beforefiremen allow you to do so.
• Do not hang heavy weights on the roof frame.
• Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
• Retain the original packaging to store the gazebo.

IMPORTANT:

• Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list.
• When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood. See image illustration.
• Place all parts from the box in a cleared area and position them on the floor in front of you.
• Remove all packing materials and place them back into the box. Do not dispose of the packing materials until assembly is complete.
• Needed for assembly:（The following tools are not included）

EXPLODED DRAWING

Parts List

Parts List
Label	Part Number	Description	Qty	Part Image
08	P000200227	Post	4
10	P005000200	Arc Support 1	4
11	P005000201	Arc Support 2	4
27	P000400959	Inner Long Beam	4
06	P000400512	Inner Short Beam (Short Side)	4
21	P000400960	Inner Short Beam (Long Side)	4
25	P000400957	Out Side Left Beam(Short)	4
26	P000400958	Out Side Right Beam(Short)	4
A	P00610021602	Base Cover	4
B	P00010025802	Post Base	4
C	P00560042801	Decorative (Middle)	4
D	P00050025102	Lower Connector For Middle Beam	4
E	P00560042901	Decorative (Corner)	4
F	P00050024802	Lower Connector For Slanting Beam	4

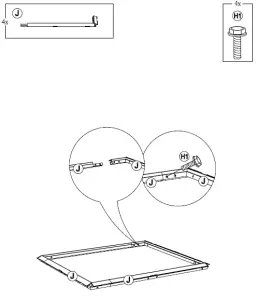

J	P00050157401	Big Roof Short Connector Tube	4

AY	P00060197201	Big Roof Sloping Beam	4
BA	P00060198401	Big Roof Middle Beam	4
BB	P00570027701	Mosquito Netting Rod(Left)	4
BC	P00570035101	Mosquito Netting Rod(Right)	4
N	P00060105901	Small Roof Oblique Beam	4
AU	P00050156501	Small Roof Connector	1
Q	P00060196201	Small Roff Top Beam(Short Side)	4
R	P005800001	Hook	1
S	P00070094501	Small Roof Panel	4
U	P00080019101	Small Roof Inclined Beam Cap	4
AV	P00090015401	Top Cover	1
BD	P00060203001	Big Roof Top Beam(Upper)	8
BE	P00060203101	Big Roof Left Panel Flashing	4
BF	P00060203201	Big Roof Right Panel Flashing	4

BG	P00070103201	Big Roof Middle Panel	4
BJ	P00070102001	Big Roof Big Panel	4
BK	P00070102501	Big Roof Big Panel(Right)	4
AR	P00070101002	Big Roof Left Small Panel	4
AS	P00070101202	Big Roof Right Small Panel	4
BL	P00080034501	Big Roof Inclined Beam Cap	4

Care and Maintenance

Sunjoy Group warrants to the original purchaser that this i tem is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any m anufacturing defect arise within this warranty period, Sunjoy Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and delivery costs, as well as payments to a third party for assembly or dis assembly of the item, remain the responsibility of the purchaser. A purchaser of an “open box,” previously previously-returned, or “clearance” item, as well as original purchasers outside of the warranty period, may obtain replacement parts from Sunjoy Group for prod ucts in current production, at nominal cost. Items.

Exclusions

Items used for commercial, contract, or other non non-residential purposes, or items damaged due to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is nonnon-transferable. Any replacement of warranted items will be in the original style and color, or a similar style and color if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you may als o have other rights, which vary from state to state.
