SUUNTO TANK POD User Guide

SUUNTO TANK POD User Guide

1. Safety

Types of safety precautions

WARNING: – is used in connection with a procedure or situation that may result in serious injury or death.

CAUTION: – is used in connection with a procedure or situation that will result in damage to the product.

NOTE: – is used to emphasize important information.

TIP: – is used for extra tips on how to utilize the features and functions of the device.

WARNING: All computers experience failures. It is possible that this device may suddenly fail to provide accurate information during your dive. Always use a backup dive device and only dive with a buddy. Only divers trained in proper use of diving equipment should use this dive device! YOU MUST READ the leaflet and user guide for your dive computer before use. Failure to do so may lead to improper use, serious injury or death.

NOTE: Make sure your Suunto dive computer always has the latest software with updates and improvements. Check before every dive trip from www.suunto.com/support, if Suunto has released a new software update to your device. When it is available, you must install it before diving. Updates are made available to improve your user experience and are part of Suunto´s philosophy of continuous product development and improvement.

Before you dive

Make sure that you fully understand the use, displays and limitations of your dive instruments. If you have any questions about this manual or dive instrument, contact your Suunto dealer before diving. Always remember that YOU ARE RESPONSIBLE FOR YOUR OWN SAFETY!

Before leaving on a dive trip, inspect your dive computer thoroughly to make sure everything is functioning properly.

At the dive site, perform your manual pre-checks on each device before entering the water.

Dive Computer Pre-checkEnsure that:

Suunto Tank POD is in the correct dive mode and the display is working as expected.
Altitude setting is correct.
Personal setting is correct.
Deep stops are set correctly.
Unit system is correct.
Compass is calibrated. Start the calibration manually in the menu under General » Compass » Calibrate to also confirm that the dive computer audible sounds are working. After successful calibration, you should hear a sound.
The battery is fully charged.
All primary and backup gauges for time, pressure and depth, both digital and mechanical, are showing correct, consistent readings.
If Suunto Tank PODs are in use, check that Suunto Tank POD is properly installed and the tank valve is open. Please see the Suunto Tank POD User Guide for detailed information and proper use.
If Suunto Tank PODs are in use, check that connections are working and gas selections are correct.

NOTE: For Suunto Tank POD related information please see the instructions provided with the product.

Safety precautions

WARNING: ONLY TRAINED DIVERS SHOULD USE A DIVE COMPUTER! Insufficient training for any kind of diving, including freediving, may cause a diver to commit errors, such as incorrect use of gas mixtures or improper decompression, that may lead to serious injury or death.

WARNING: You must read the printed quick guide and online user guide for your dive computer. Failure to do so may lead to improper use, serious injury or death.

WARNING: THERE IS ALWAYS A RISK OF DECOMPRESSION SICKNESS (DCS) FOR ANY DIVE PROFILE EVEN IF YOU FOLLOW THE DIVE PLAN PRESCRIBED BY DIVE TABLES OR A DIVE COMPUTER. NO PROCEDURE, DIVE COMPUTER OR DIVE TABLE WILL PREVENT THE POSSIBILITY OF DCS OR OXYGEN TOXICITY! An individual’s physiological makeup can vary from day to day. The dive computer cannot account for these variations. You are strongly advised to remain well within the exposure limits provided by the instrument to minimize the risk of DCS. As an added measure of safety, you should consult a physician regarding your fitness before diving.

WARNING: YOU ARE ADVISED TO AVOID FLYING ANY TIME THE COMPUTER COUNTS DOWN THE NO-FLY TIME. ALWAYS ACTIVATE THE COMPUTER TO CHECK THE REMAINING NO-FLY TIME PRIOR TO FLYING! Flying or traveling to a higher altitude within the no-fly time can greatly increase the risk of DCS. Review the recommendations given by Divers Alert Network (DAN). There can never be a flying-after-diving rule that is guaranteed to completely prevent decompression sickness!

WARNING: If you have a pacemaker, we recommend you do not scuba dive. Scuba diving creates physical stresses on the body which may not be suitable for pacemakers.

WARNING: If you have a pacemaker, consult a doctor before using this device. The inductive frequency used by the device may interfere with pacemakers.

WARNING: Allergic reactions or skin irritations may occur when product is in contact with skin, even though our products comply with industry standards. In such event, stop use immediately and consult a doctor.

WARNING: Not for professional use! Suunto dive computers are intended for recreational use only. The demands of commercial or professional diving may expose the diver to depths and conditions that tend to increase the risk of decompression sickness (DCS). Therefore, Suunto strongly recommends that the device not be used for any commercial or professional diving activities.

WARNING: USE BACKUP INSTRUMENTS! Ensure that you use backup instrumentation, including a depth gauge, submersible pressure gauge, timer or watch, and have access to decompression tables whenever diving with a dive computer.

WARNING: For safety reasons, you should never dive alone. Dive with a designated buddy. You should also stay with others for an extended time after a dive as the onset of possible DCS may be delayed or triggered by surface activities.

WARNING: PERFORM PRE-CHECKS! Always check that your dive computer is functioning properly and has the correct settings before diving. Check that the display is working, the battery level is OK, tank pressure is correct, and so forth.

WARNING: Check your dive computer regularly during a dive. If you believe or conclude that there is any problem with any computer function, abort the dive immediately and safely return to the surface. Call Suunto Customer Support and return your computer to an authorized Suunto Service Center for inspection.

WARNING: THE DIVE COMPUTER SHOULD NEVER BE TRADED OR SHARED BETWEEN USERS WHILE IT IS IN OPERATION! Its information will not apply to someone who has not been wearing it throughout a dive, or sequence of repetitive dives. Its dive profiles must match that of the user. If it is left on the surface during any dive, the dive computer will give inaccurate information for subsequent dives. No dive computer can take into account dives made without the computer. Thus, any diving activity up to four days prior to initial use of the computer may cause misleading information and must be avoided.

WARNING: DO NOT EXPOSE ANY PART OF YOUR DIVE COMPUTER TO ANY GAS MIX CONTAINING MORE THAN 40% OXYGEN! Enriched air with greater oxygen content presents a risk of fire or explosion and serious injury or death.WARNING: DO NOT DIVE WITH A GAS IF YOU HAVE NOT PERSONALLY VERIFIED ITS CONTENTS AND ENTERED THE ANALYZED VALUE INTO YOUR DIVE COMPUTER! Failure to verify tank contents and enter the appropriate gas values where applicable into your dive computer will result in incorrect dive planning information.

WARNING: Using a dive planner software such as in Suunto DM5 is not a substitute for proper dive training. Diving with mixed gases has dangers that are not familiar to divers diving with air. To dive with Triox, Heliox and Nitrox or all of them, divers must have specialized training for the type of diving they are doing.

WARNING: Do not use Suunto USB Cable in areas where flammable gases are present. Doing so may cause an explosion.

WARNING: Do not disassemble or remodel Suunto USB Cable in any way. Doing so may cause an electric shock or fire.

WARNING: Do not use Suunto USB cable if cable or parts are damaged. WARNING: You must only charge your device using USB adapters that comply with the IEC 60950-1 standard for limited power supply. Non-compliant adapters are a fire hazard and a risk to personal injury and might damage your Suunto device.

CAUTION: DO NOT allow the connector pins of the USB cable to touch any conductive surface. This may short circuit the cable, making it unusable.

Emergency ascents

In the unlikely event that the dive computer malfunctions during a dive, follow the emergency procedures provided by your certified dive training agency to immediately and safely ascend.

2. Important notices

For your safety, use the Suunto Tank POD with the provided Suunto Flow Restrictor. The restrictor should only be removed for cleaning or changing scuba gear. The restrictor must be re-installed before using Suunto Tank POD again.

Suunto recommends that the installation or removal of Suunto Tank POD is done by a Suunto authorized dealer or trained dive expert. Improper tool use and over tightening could damage scuba equipment.

Ensure there are no other people in close proximity when you pressurize scuba gear.

If Suunto Tank POD does not connect to your dive computer, you must uninstall the Tank POD. Do not leave a non-functioning Tank POD attached to your scuba gear. Bring the nonfunctioning unit to your nearest authorized Suunto dive dealer for inspection.

This product can be used together with Suunto EON Steel, EON Core, and D5 for wireless transmission of tank pressure to the dive computer. One or more Tank PODs can be paired with the dive computer for multi-gas diving.

Suunto Tank POD is intended for use with compressed air only. Do not use it with any other type of scuba diving. The compressed air supply must comply with EU standard EN12021:2014 requirements.

This product may only be installed to scuba gear that complies with the air supply requirements of standard EN12021 and the Personal Protective Equipment requirements of standard EN250.

3. Getting started

To set up your Suunto Tank POD, make sure you use the proper air restrictor, pair your Tank POD, aligning it with your dive computer and make the appropriate settings in your dive computer for using gases. Follow the instructions in this user guide for the best results.

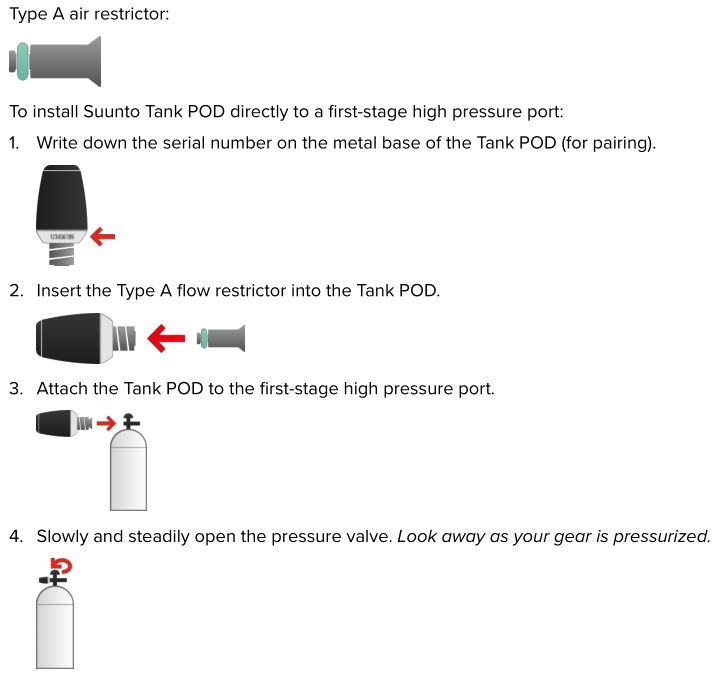

3.1. Installing Type A air restrictor

WARNING: The battery level indication shown when pairing the Tank POD is an approximation only. The POD battery may deplete faster than the indication suggests.

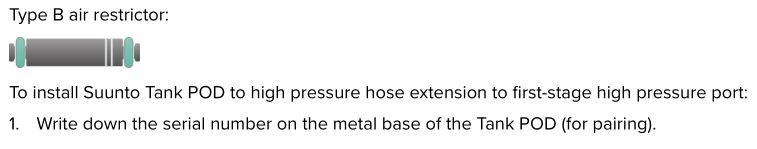

3.2. Installing Type B air restrictor

WARNING: The battery level indication shown when pairing the Tank POD is an approximation only. The POD battery may deplete faster than the indication suggests.

3.3. Tank POD alignment

When 3.4. pairing your Suunto Tank POD make sure you hold your dive computer and the Tank POD in one of the following ways to achieve best results:

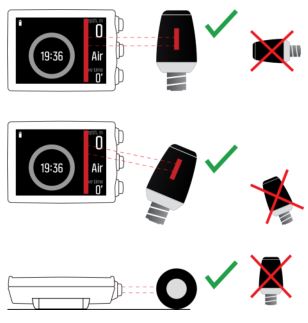

For EON Core and Steel

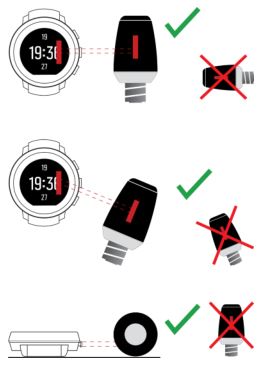

For D5

3.4. Pairing Suunto Tank POD

For EON Core and Steel

To pair a Suunto Tank POD:

After installing the Tank POD and opening the valve, wait for green LED on Tank POD to flash.
If your dive computer has a blank screen, press any key to activate it.
Use proximity pairing: Hold your dive computer close to the Tank POD. Make sure you follow the instructions in 3.3. Tank POD alignment.
After a few seconds, a menu pops up on the screen showing the Tank POD serial number, battery status and the tank pressure. From the menu, select the correct gas for that Tank POD. NOTE: The battery level indication shown when pairing the Tank POD is an approximation only.
Repeat the procedure above for additional Tank PODs and select different gases for each POD.

Alternatively you can pair the Suunto Tank POD(s) from the menu:

Select which Tank POD to use with each gas by selecting a Tank POD for the gas in question in the Gases menu.
Make sure the Tank POD has been activated by ensuring there is tank pressure reading on screen and Tank POD green led is blinking. In the menu, the Tank POD is identified by the serial number printed on the Tank POD.

In the dive main views, only one tank pressure is shown and corresponds to the active gas. When the gas is changed, the displayed tank pressure is also changed accordingly.

WARNING: If there are several divers using Tank PODs, always check before you dive that the POD number of your selected gas corresponds to the serial number on your POD. TIP: Remove pressure from the Tank POD when not diving to save battery life.

For D5To pair a Suunto Tank POD:

After installing the Tank POD and opening the valve, wait for green LED on Tank POD to flash.
If your dive computer has a blank screen, press any key to activate it.
Use proximity pairing: Hold your dive computer close to the Tank POD. Make sure you follow the instructions in 3.3. Tank POD alignment.
After a few seconds, a menu pops up on the screen showing the Tank POD serial number, battery status and the tank pressure. From the menu, select the correct gas for that Tank POD. NOTE: The battery level indication shown when pairing the Tank POD is an approximation only.
Repeat the procedure above for additional Tank PODs and select different gases for each POD.

Alternatively you can pair the Suunto Tank POD(s) from the menu:

Select which Tank POD to use with each gas by selecting a Tank POD for the gas in question in the Gases menu.
Make sure the Tank POD has been activated by ensuring there is tank pressure reading on screen and Tank POD green led is blinking. In the menu, the Tank POD is identified by the serial number printed on the Tank POD.

In the dive main views, only one tank pressure is shown and corresponds to the active gas. When the gas is changed, the displayed tank pressure is also changed accordingly.

WARNING: If there are several divers using Tank PODs, always check before you dive that the POD number of your selected gas corresponds to the serial number on your POD.

TIP: Remove pressure from the Tank POD when not diving to save battery life.

3.5. Unpairing Suunto Tank POD

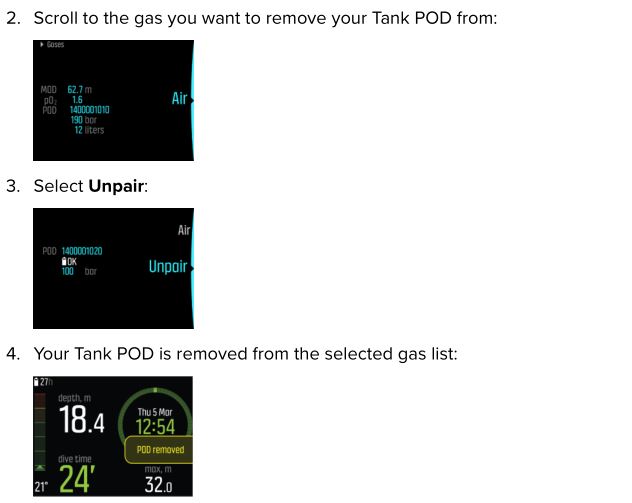

For EON Core and SteelTo unpair and remove your Tank POD from a specific gas using proximity:

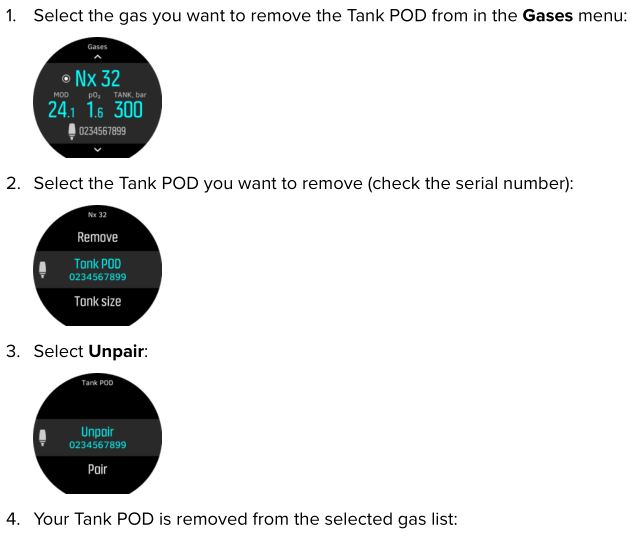

For D5To unpair and remove your Tank POD from a specific gas through the menu:

To unpair and remove your Tank POD from a specific gas using proximity:

3.6. Product compatibility

Suunto Tank POD has a 7/16″ – 20UNF thread connection to scuba gear. Check the full list of compatible dive products on suunto.com, call Suunto Contact Center or find your local authorized Suunto dealers.

Do not use this device with any accessories or equipment not authorized or officially supported by Suunto.

3.7. Pre-checks

Always check that your Suunto Tank POD is functioning properly before each dive. If the optional wireless tank pressure transmitter is used, check that:

The Tank POD is visually free from any damage or defects.
All primary and backup gauges for time, pressure and depth, both digital and mechanical, are showing correct, consistent readings.
The Tank POD connections are working and gas selections are correct on your dive computer.
Tank gas and O2 settings are correct.
The Tank POD is properly installed and the tank valve is open.
The Tank POD and the dive computer are paired.
The Tank POD is sending data (wireless transmission icon blinks, tank pressure is displayed).
There is no Tank POD low battery warning.
There is enough gas for your planned dive. Check the pressure reading against your back-up pressure gauge.

If you are not sure that the Tank POD is safe to use, contact Suunto Customer Support and return your Tank POD to an authorized Suunto Service Center for inspection.

4. Care and support

4.1. Handling guidelines

Handle Suunto Tank POD with care. The sensitive internal electronic components may be damaged if the device is dropped or otherwise mishandled.

When travelling with the Tank POD, ensure that it is packed securely in check-in or carry-on luggage. It should be placed in a bag or other container where it cannot move around, get bumped or easily hit.

Do not try to open or repair the Tank POD by yourself. If you are experiencing problems with the device, please contact your nearest authorized Suunto Service Center.

WARNING: ENSURE THE WATER RESISTANCE OF THE DEVICE! Moisture inside the device may seriously damage the unit. Only an authorized Suunto Service Center should do service activities.

NOTE: Thoroughly rinse the device with fresh water, mild soap and carefully clean the housing with moist soft cloth or chamois after diving, especially after salt-water dives.

TIP: Remember to register your Suunto Tank POD at www.suunto.com/support to get personalized support.

4.2. Getting support

To get additional support, visit www.suunto.com/support/dive-computers-and-instrumentssupport/suunto-tank-pod/ .

Our online support provides a comprehensive range of support materials, including the user guide, frequently asked questions, how-to videos, service and repair options, our dive service center locator, warranty terms and conditions as well as contact details for our customer support.

If you could not find answers to your questions on our online support, please contact our customer support. We are happy to assist you.

4.3. Disposal and recycling

Please dispose of the device in accordance with local laws and regulations for electronic waste and batteries. Do not throw the device away with normal household garbage. If you wish, you may return the device to your nearest Suunto dealer.

The symbol below indicates that within the European Union, this device must be disposed of according to the directive for Waste Electrical & Electronic Equipment (WEEE). Please follow the local practices of member states for the collection of electronic waste.

The proper collection and recycling of batteries and electronic devices helps conserve resources and minimizes their impact on the environment.

5. Reference

5.1. Technical specifications

Dimensions and weight:

Max. diameter: 40 mm / 1.57 in
Length: 80 mm / 3.15 in
Weight: 95 g / 3.4 oz
Threading: 7/16″ – 20UNF

Operating conditions

Maximum depth of operation: 150 m / 492 ft (complying with EN 13319)
Operating temperature: 0 °C to 40 °C / 32 °F to 104 °F
Storage temperature: -20 °C to +50 °C / -4 °F to +122 °F
Maintenance cycle: after 200 dives or two years, whichever comes first

NOTE: Store in a dry place at room temperature.

Depth/pressure measurements

Resolution: 1 bar / 1 psi
Rated working pressure: 300 bar / 4000 psi
Max. allowed pressure: 400 bar / 5800 psi

Battery

Type: 1/2 AA Primary lithium-thionyl chloride (Li-SOCl2)
Battery life: 1-3 years depending on dive activity/usage

The following conditions have an effect on the expected battery lifetime:

The conditions in which the unit is operated and stored (for example, temperature/cold conditions). Below 10°C/50°F the expected battery lifetime is about 50- 75% of that at 20°C/68°F.

NOTE: The battery should be replaced by authorized Suunto Service Centers only.

NOTE: Low temperature may activate the battery warning even though the battery has enough capacity for diving in water with higher temperatures (40 °C or less).

Radio transceiver

Frequency band: single channel 123 kHz
Maximum output power: 360 mW

NOTE: See the appropriate product user guides for information on range.

ManufacturerSuunto OyTammiston kauppatie 7 AFI-01510 Vantaa FINLAND

5.2. Compliance

For compliance related information, see “Product Safety and Regulatory Information” delivered together with your Suunto Tank POD or available at [PDF]

5.3. Trademark

Suunto Tank POD, its logos, and other Suunto brand trademarks and made names are registered or unregistered trademarks of Suunto Oy. All rights are reserved.

5.4. Patent notice

This product is protected by pending patent applications and their corresponding national rights: US 13/803,795, US 13/832,081, US 13/833,054, US 14/040,808, US 7,349,805, and US 86608266. Additional patent applications may be filed.

5.5. International Limited Warranty

Suunto warrants that during the Warranty Period Suunto or a Suunto Authorized Service Center (hereinafter Service Center) will, at its sole discretion, remedy defects in materials or workmanship free of charge either by a) repairing, or b) replacing, or c) refunding, subject to the terms and conditions of this International Limited Warranty. This International Limited Warranty is valid and enforceable regardless of the country of purchase. The International Limited Warranty does not affect your legal rights, granted under mandatory national law applicable to the sale of consumer goods.

Warranty Period

The International Limited Warranty Period starts at the date of original retail purchase.

The Warranty Period is two (2) years for Watches, Smart Watches, Dive Computers, Heart Rate Transmitters, Dive Transmitters, Dive Mechanical Instruments, and Mechanical Precision Instruments unless otherwise specified.

The Warranty Period is one (1) year for accessories including but not limited to Suunto chest straps, watch straps, chargers, cables, rechargeable batteries, bracelets and hoses.

The Warranty Period is five (5) years for failures attributable to the depth measurement (pressure) sensor on Suunto Dive Computers.

Exclusions and LimitationsThis International Limited Warranty does not cover:

a) normal wear and tear such as scratches, abrasions, or alteration of the color and/or material of non-metallic straps, b) defects caused by rough handling, or c) defects or damage resulting from use contrary to intended or recommended use, improper care, negligence, and accidents such as dropping or crushing;
printed materials and packaging;
defects or alleged defects caused by use with any product, accessory, software and/or service not manufactured or supplied by Suunto;
non-rechargeable batteries.

Suunto does not warrant that the operation of the Product or accessory will be uninterrupted or error free, or that the Product or accessory will work with any hardware or software provided by a third party.

This International Limited Warranty is not enforceable if the Product or accessory:

has been opened beyond intended use;
has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center;
serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Suunto; or
has been exposed to chemicals including but not limited to sunscreen and mosquito repellents.

Access to Suunto warranty service

You must provide proof of purchase to access Suunto warranty service. You must also register your product online at www.suunto.com/register to receive international warranty services globally. For instructions how to obtain warranty service, visit www.suunto.com/warranty, contact your local authorized Suunto retailer, or call Suunto Contact Center.

Limitation of Liability

To the maximum extent permitted by applicable mandatory laws, this International Limited Warranty is your sole and exclusive remedy and is in lieu of all other warranties, expressed or implied. Suunto shall not be liable for special, incidental, punitive or consequential damages, including but not limited to loss of anticipated benefits, loss of data, loss of use, cost of capital, cost of any substitute equipment or facilities, claims of third parties, damage to property resulting from the purchase or use of the item or arising from breach of the warranty, breach of contract, negligence, strict tort, or any legal or equitable theory, even if Suunto knew of the likelihood of such damages. Suunto shall not be liable for delay in rendering warranty service.

5.6. Copyright

Copyright © Suunto Oy. All rights reserved. Suunto, Suunto product names, their logos and other Suunto brand trademarks and names are registered or unregistered trademarks of Suunto Oy. This document and its contents are proprietary to Suunto Oy and are intended solely for the use of clients to obtain knowledge and information regarding the operation of Suunto products. Its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed or reproduced without the prior written consent of Suunto Oy. While we have taken great care to ensure that information contained in this documentation is both comprehensive and accurate, no warranty of accuracy is expressed or implied. This document content is subject to change at any time without notice. The latest version of this documentation can be downloaded at www.suunto.com.

SUUNTO CUSTOMER SUPPORT

www.suunto.com/support www.suunto.com/register
AUSTRALIA +61 1800 240 498AUSTRIA +43 72 088 3104BELGIUM +32(0)78 483 936CANADA +1 855 624 9080中国 (CHINA) +86 400 8427507中国香港 (CHINA – Hong Kong) +852 58060687DENMARK +45 89872945FINLAND +358 94 245 0127FRANCE +33 48 168 0926GERMANY +49 893 803 8778ITALY +39 029 475 1965JAPAN +81 34 520 9417NETHERLANDS +31 10 713 7269NEW ZEALAND +64 988 75 223POLAND +48 1288 10196PORTUGAL (EN, ES) +35 1308806903SPAIN +34 911 143 175SWEDEN +46 85 250 0730SWITZERLAND +41 44 580 9988UK +44 20 360 805 34USA +1 855 258 0900

Manufacturer:Suunto OyTammiston kauppatie 7 A,FI-01510 VantaaFINLAND
