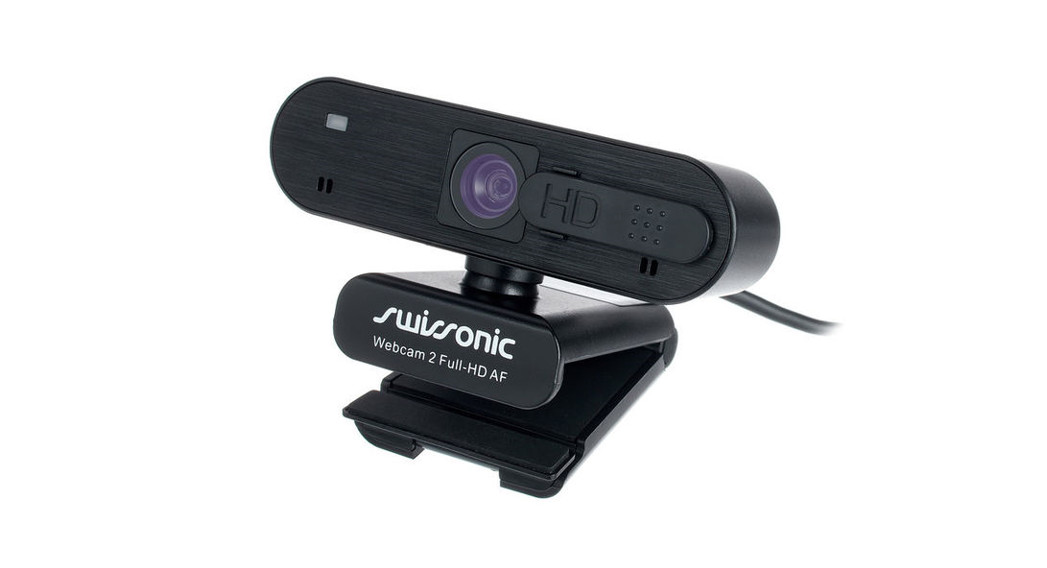

Webcam 2 Full-HD AF
User manualThis manual contains important information on the safe operation of the product.Read and follow the safety advice and instructions given. Retain the manual for future reference. If you pass the product on to others please include this manual.
Safety instructions
Intended useThis device is used to digitize audio and video content and to make it available for further processing via USB. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.Danger for children
Where to use the productNever use the product
- in conditions of extreme temperature or humidity
- in extremely dusty or dirty areas
- at locations where the unit can become wet
General handling
- To prevent damage, never use force when handling the product.
- Never immerse the product in water. Just wipe it with a clean dry cloth. Do not use liquid cleaners such as benzene, thinners, or flammable cleaning agents.
Features
|
|
Operating elements
- Pilot light
- Camera lens
- Lens cover
- Microphone
- Camera cable with USB plug
- Camera base
- Tripod screw hole
Using the product
- Mount the camera either on a tripod or on the screen. You can also simply place it on the desk.
- Connect the USB plug of the camera cable to the USB port of a computer with a Windows or macOS operating system. If necessary, use the supplied adapter to the USB-C format.
- The required driver is provided by the operating system and installed automatically. Then the pilot light lights up and the camera is ready for use.
- Start the desired chat or video conference software.
- If you want to interrupt the transmission of the camera image, slide the lens cover to the left so that it covers the lens.
NoteIf you use the camera on a laptop that has a built-in camera, you must first deactivate it or set the external camera as the standard device for audio/video recording.
Technical specifications
Resolutions | 1080p Full-HD | |
Frame rate | 30 fps | |
Capture angle | 60° | |
Autofocus | yes | |
Audio | built-in stereo microphone | |
Computer connection | USB 2 | |
Mounting options | Multi-functional bracket for standing operation or monitor screen mounting 1/4″ thread for tripod mounting | |
Memory card slot | no | |
Protection class | IP44 | |
Dimensions (W x D x H) | 10 x5 x 5 cm | |
Weight | 1 212 g | |
Environmental conditions | I Temperature rangerelative humidity | 0 °C…40 °C50 %, non-condensing |
Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 500015_04.09.2020
