Synology RackStation RS1619xs+Hardware Installation Guide
Before You Start
Thank you for purchasing this Synology product! Before setting up your new RackStation, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your RackStation.Note: All images below are for illustrative purposes only, and may differ from the actual product.
Package Contents

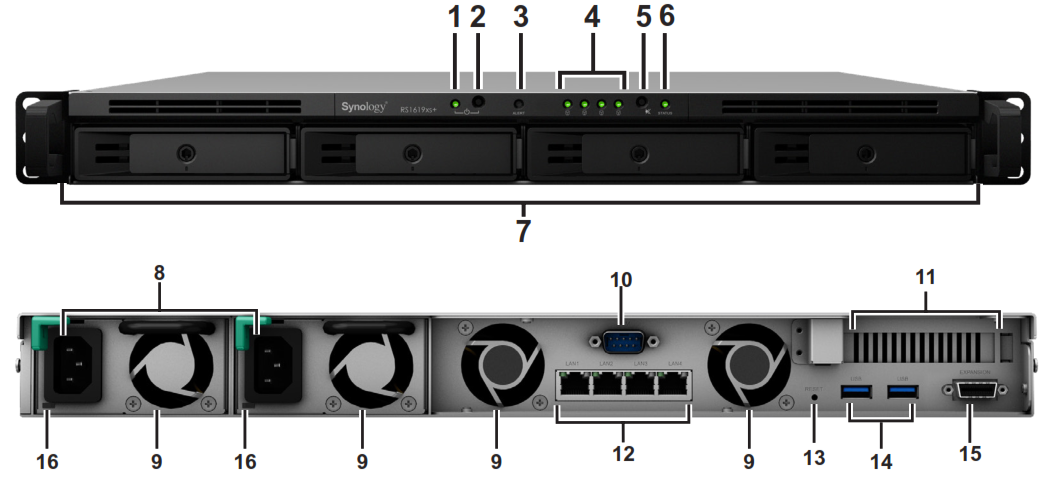

Synology RackStation at a Glance
| No. | Article Name | Location | Description |
| 1 | Power Indicator | Front | Displays power status of the RackStation. For more information, see “Appendix B: LED Indicator Table”. |
| 2 | Power Button | 1.Press to power on the RackStation.2.To power off the RackStation, press and hold until you hear a beep sound and the Power LED starts blinking. | |
| 3 | Alert Indicator | Displays warnings regarding fan or temperature. For more information, see “Appendix B: LED Indicator Table”. | |
| 4 | Drive Status Indicator | Displays the status of drives. For more information, see “Appendix B: LED Indicator Table”. | |
| 5 | Beep Off Button | Press to deactivate the beeping sound that is emitted when a malfunction Occurs. | |
| 6 | Status Indicator | Displays the status of the system. For more information, see “Appendix B: LED Indicator Table”. | |
| 7 | Drive Tray | Install drives here. | |
| 8 | Power Port | Back | Connect power cords here to supply power to your RackStation. |
| 9 | Fan | Disposes of excess heat and cools the system. | |
| 10 | Console Port | For manufacturing use only. | |
| 11 | PCI ExpressExpansion Slot | Supports one PCIe x8 slot (x4 link) add-on card. | |
| 12 | LAN Port | Connect network cables here. | |
| 13 | RESET Button | 1.Press and hold until you hear a beep sound to restore the default IP address, DNS server, and password for the admin account.’2.Press and hold until you hear a beep sound, then press and hold again until you hear three beep sounds to return the RackStation to “Not Installed” status so that DiskStation Manager (DSM) can be reinstalled. | |
| 14 | USB 3.0 Port | Connect external drives or other USB devices to the RackStation here. | |
| 15 | Expansion Port | Connect Synology Expansion Unit2 to the RackStation here. | |
| 16 | Redundant Power LED | Displays the status of redundant powers supplies. |
1 You can keep the current admin password unchanged by ticking the “Keep current admin password unchanged” checkbox in DSM Control Panel > Update & Restore > Reset.2 For more information about Synology Expansion Unit supported by your RackStation, please visit www.synology.com.
System Fans
If any fan failure occurs, please refer to the images below to locate the failed fan(s) indicated in DSM. The fans are numbered as below:
To replace the failed fan(s), please contact Synology Technical Support at www.synology.com/support for technical assistance.
Safety Instructions
 |
Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. |
 |
Place the product right side up at all times. |
 |
Do not place near any liquids. |
 |
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. |
 |
To prevent the unit from falling over, do not place on carts or any unstable surfaces. |
 |
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is correct and stable. |
 |
To remove all electrical current from the device, ensure that all power cords are disconnected from the power source. |
 |
Risk of explosion if battery is replaced with an incorrect one. Dispose used batteries appropriately. |
Hardware Setup
Tools and Parts for Drive Installation
• A screwdriver.• At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models.)
Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please back up important data before installation.
Install Rackmounts
Fix the two rack-mount kits on both sides with the screws provided.
Install Drives
1. Pull the drive tray handle outwards to remove the tray.

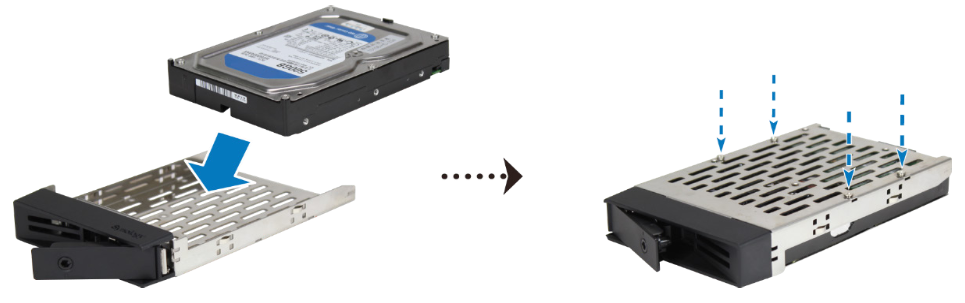

2 Load drives into the drive trays.• For 3.5” drives: Place the drive in the drive tray. Turn the tray upside down and tighten the screws into the four spots indicated below to secure the drive.
• For 2.5” drives: Place the drive in the drive tray. Turn the tray upside down and tighten the screws into the four spots indicated below to secure the drive.
3 Insert the loaded drive tray into the empt y drive bay.
Important: Make sure the drive tray is pushed all the way in or the drive may not function properly.4 Push the handle inward to secure the drive tray.5 Insert the drive tray key into the drive tray lock, turn the key clockwise to lock the handle of the drive tray, and remove the key.
6 Repeat the steps above to install all prepared drives.7 Drives are numbered as shown below.
Note: If you want to create a RAID volume, we recommend installing drives of the same size. This would optimize drive capacity usage.

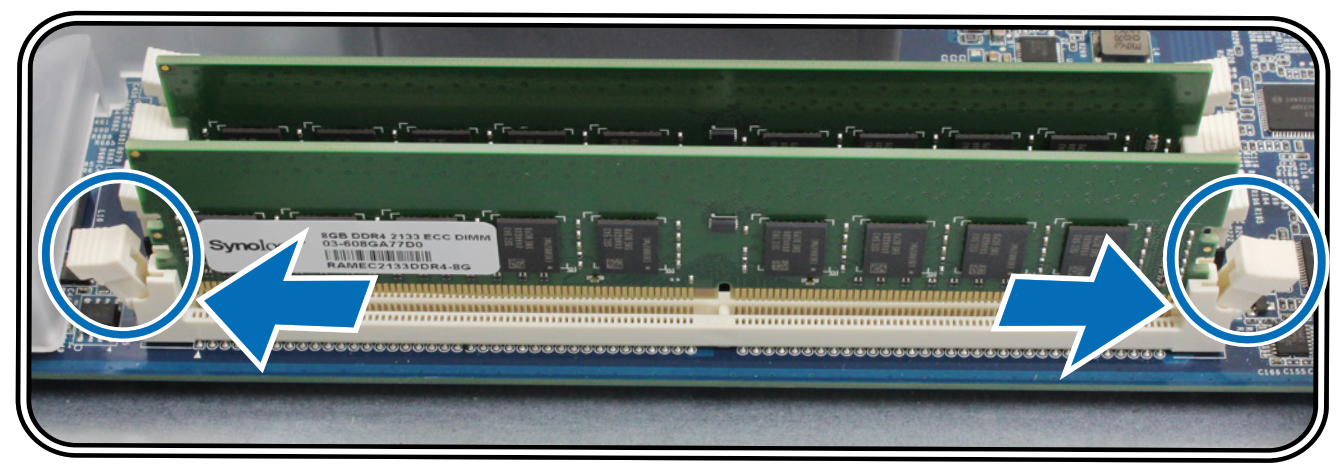

Add RAM Modules to RackStation
The optional Synology RAM module is designed for RackStation memory expansion. Follow the steps below to install, check, or remove a RAM module on your RackStation.To install a RAM module:1 Shut down your RackStation and disconnect all cables to prevent any possible damage.2 Remove the top cover:a. Loosen the four screws of the top cover of your RackStation with a screwdriver. The respective screw position is indicated above.b Push the top cover towards the front of your RackStation and lift it.
Note: When you remove the top cover, you expose sensitive internal components. Avoid touching anything other than the memory assembly when you remove or add memory.

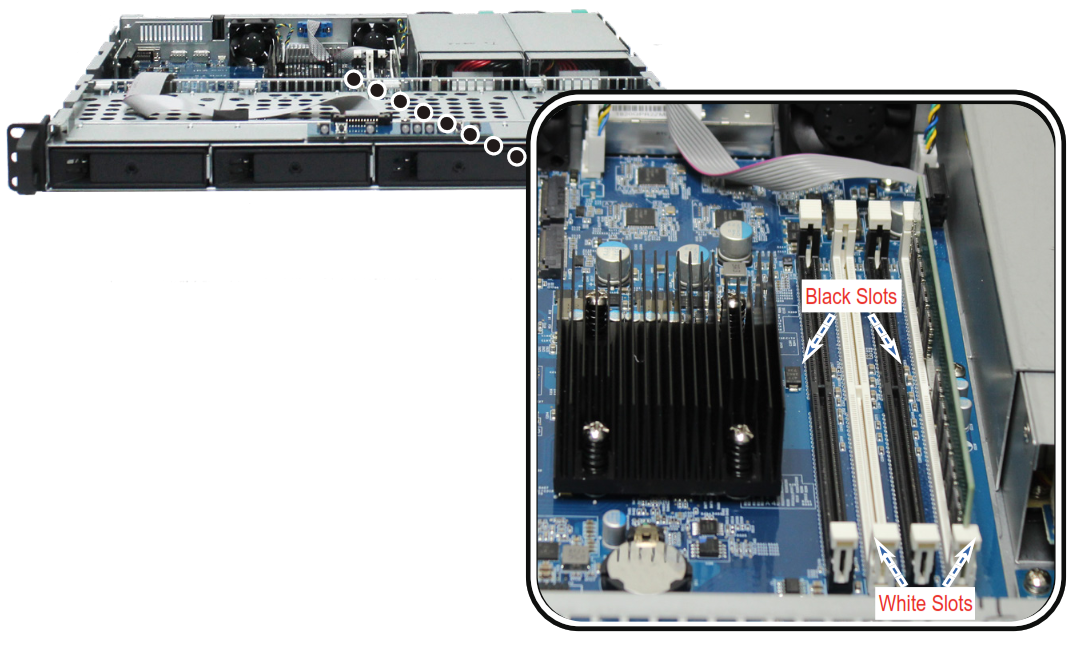

Note:1. For normal operations, you must insert your RAM modules into the white slots first.2. Synology will not provide complete product warranty or technical support if non-Synology RAM modules are used for memory upgrades.3 Insert the new memory module:a Push the retaining clips on the slot outwards.b Align the gold edge of the module with the memory slot.c Firmly push the memory module down. The retaining clips will snap into position if the module is correctly inserted.
Important: Hold the memory module by its edges. Do not touch the golden connectors.
To make sure RackStation recognizes the new memory capacity:1 Install DiskStation Manager (DSM). (See Install DSM with Web Assistant for more information.)2 Log in to DSM as admin or a user in the administrator’s group.3 Check Total Physical Memory in Control Panel > Info Center.If your RackStation does not recognize the memory or does not start up successfully, confirm that the memory is installed correctly.To remove a RAM Module:1 Follow step 1 and 2 of Add RAM Modules to RackStation to shut down your RackStation. Disconnect all cables and remove the top cover.2 Disengage the memory retaining clips by pushing them outwards. The module will pop out of the slot.3 Follow To return the top cover to put back the top cover.
Attach SSDs to RackStation
Your RackStation supports optional M.2 2280 NVMe / SATA SSDs. Follow the steps below to add them to your RackStation.1 Follow step 1 and 2 of Add RAM Modules to RackStation to shut down your RackStation. Disconnect all cables and remove the top cover.2 Insert a M.2 SATA SSD into SLOT1 (as shown below). Insert a second SSD in SLOT 2 if needed.3 Tighten the SSD(s) with a screw.
Important: Hold the SSD module by its edges and do not touch the golden connectors.
Attach A Network Interface Card to RackStation
Your RackStation supports one PCIe x8 add-on network interface card.
To install a network interface card:1 Follow step 1 and 2 of Add RAM Modules to RackStation to shut down your RackStation. Disconnect all cables and remove the top cover.2 Insert your network interface card.a Lift the black latch from the expansion slot cover. Remove the cover from the expansion slot.b Align the gold connectors of the network interface card to the expansion slot and firmly insert the card.c Put the black latch back to the expansion slot to fasten the network interface card.
Note: Make sure the connector is fully inserted or the network interface card may not function properly.To return the top cover:1 Align the round dots on the side of the top cover with the slots on the chassis’ edge, then push the top cover back into position.
2 Fasten the four removed screws in step 2 of To install a RAM module.1 For more information about supported 10GbE or Gigabit network interface cards, please visit www.synology.com.

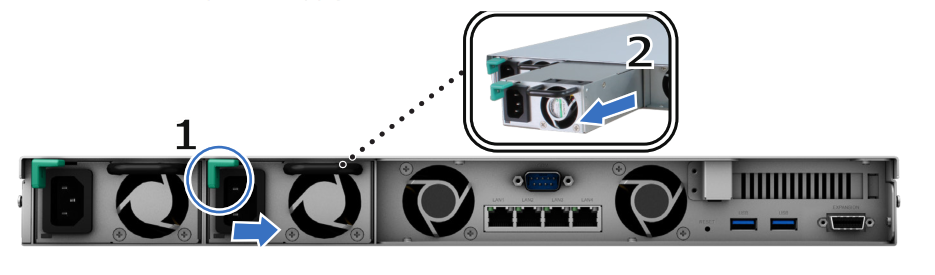

Replace Redundant Power Supplies on RackStation
1 Turn to the back of your RackStation and push the lever of the redundant power supply.2 Pull the redundant power supply out.
3 Prepare a new power supply and push it into the slot until you hear a click.
Start-Up RackStation
1 Turn to the back of your RackStation. Connect one end of each power cord to the power ports and the other end to a power outlet.2 Connect at least one LAN cable to one of the LAN ports and the other end to your switch, router, or hub.

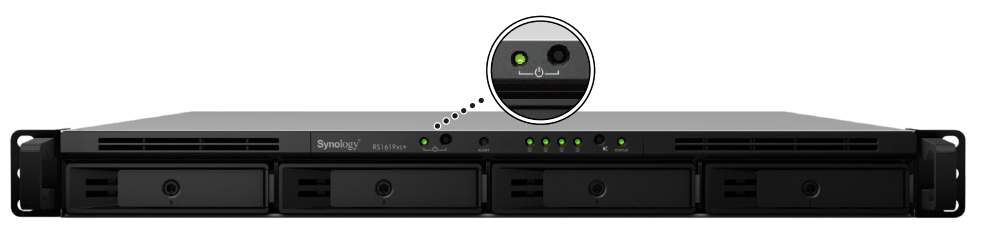

3 Press the power button to turn on the RackStation.
Congratulations! Your RackStation is now online and detectable from a network computer.
Install DSM on RackStation
After hard ware setup is finished, please install DiskStation Manager (DSM) – Synology’s browser-based operating system – on your RackStation.

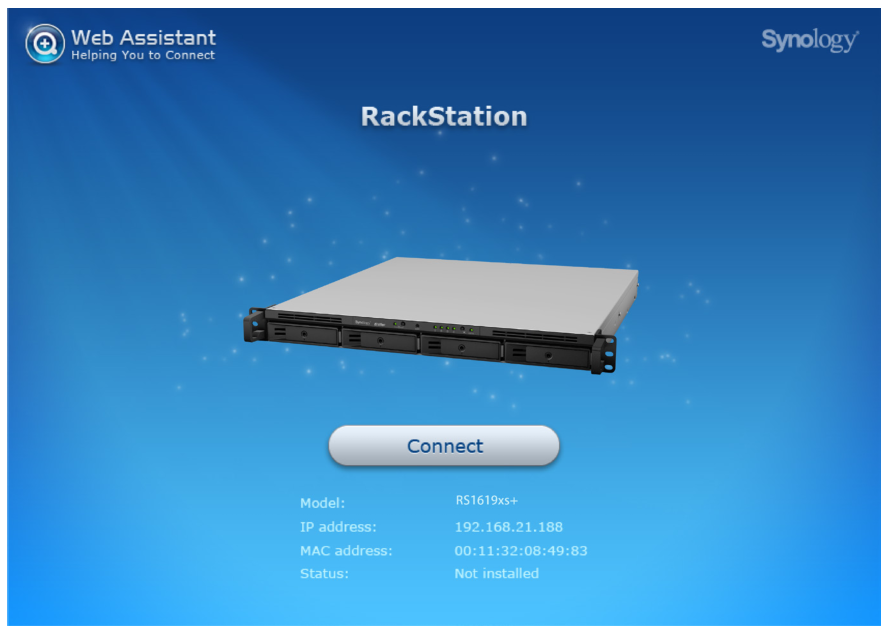

Install DSM with Web Assistant
Your RackStation comes with a built-in tool called Web Assistant that helps you download the latest version of DSM from the Internet and install it on your RackStation. To use Web Assistant, please follow the steps below.1 Power on your RackStation.2 Open a web browser on a computer connected to the same network as the RackStation.3 Enter either of the following into the address bar of your browser:a find.synology.comb rackstation:50004 Web Assistant will be launched in your web browser. It will search for and find the RackStation within the local network. The status of the RackStation should be Not Installed.
5 Click Connect to start the setup process and follow the onscreen instructions.Note:1. The RackStation must be connected to the Internet to install DSM with Web Assistant.2. Suggested browsers: Chrome, Firefox.3. Your RackStation and computer must be in the same local network.6 If you accidentally leave the installation process before it is finished, login to the DSM as admin (default administrative account name) with the password left blank.
Learn More
Congratulations! Your RackStation is now ready for action. For more information or online resources about your RackStation, please visit www.synology.com.
Specifications
| Item | •3.5″12.5″ SATA x 4•M2 2280 NVMe/SATA SSD x 2 |
| Compatible Drive Type | |
| Maximum Internal Raw Capacity | •48 TB (4 x 12 TB HDD)•192 TB with RX1217 / FtX1217FtP (expansion unit) x 1 |
| External Device Port | •USB 3.0 x 2•Expansion port x 1 |
| LAN Port | Gigabit x 4 |
| PCIe Slot | PCIe Gen3 x8 slot for add-on card (optional) |
| Size (H x W x13) (mm) | 44 x 430.5 x 483.6 (Not including rack mount kits) /44 x 480 x 518.6 (Including rack mount kits) |
| Weight (kg) | 8.16 KG |
| System Fan | 2 x (40 x 40 x 28mm) |
| Supported Client | •Windows 7 and 10•Mac OS x 10.11 onward |
| File System | •Internal: Btrfs, ext4•External: Btrfs, ext4, ext3. FAT, NTFS, HFS+, exFAT’ |
| Supported RAID Type | •Basic • JBOD • RAID 0 • RAID 1•RAID 5 • RAID 6 • RAID 10• RAID F1•Synology Hybrid RAID (Up to 2-Disk Fault Tolerance) |
| Agency Certification | •FCC Class A • CE Class B • BSMI Class A•EAC • VCCI • RCM• RoHS Compliant |
| HOD Hibernation | Yes |
| Scheduled Power On/Off | Yes |
| Wake on LAN | Yes |
| Language Localization | •Engligh |
| Environment Requirement | •Line voltage: 100V to 240V AC•Frequency: 50/60Hz•Operating Temperature: 40 to 95T (5 to 35t)•Storage Temperature: -5 to 140°F (-20 to 60°C)•Relative Humidity: 5% to 95% RH |
Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1 Support for exFAT can be enabled by purchasing and downloading exFAT Access in Package Center.
LED Indicator Table
| LED Indicator | Color | Status | DescrIptialIMME |
| Power | Green | Static | Powered on |
| Blinking | Booting up / Shutting down | ||
| Off | Powered off | ||
| STATUS | Green | Static | Volume normal |
| Orange | Blinking | Volume degraded / Volume crashed | |
| Volume not created | |||
| DSM not installed | |||
| Off | HDD hibernation | ||
| ALERT | Orange | Blinking | Fan failure / Over temperature |
| Off | System normal | ||
| Redundant Power | Green | Static | Power supply Is ready |
| Off | No power supply | ||
| Drive Status 1-4 | Green | Static | Drive ready and idle |
| Blinking | Accessing drive | ||
| Orange | Static | Drive error’ | |
| Off | No internal drive | ||
| Rear LAN(on right side of jack) | Green | Static | 1 Gbps connected |
| Orange | Static | 100 Mbps connected | |
| Off | 10 Mbps connected / No network | ||
| Rear LAN(on left side of jack) | Green | Static | Network connected |
| Blinking | Network active | ||
| Off | No network |
Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1 Please try to restart your RackStation or re-insert the drive(s), and then run the HDD/SSD manufacturer’s diagnostic tool to check the health status of the drive(s). If you can log into DSM, please run the built-in S.M.A.R.T. test to scan the drive(s). If the problem remains unresolved, please contact Synology Technical Support for help.
