Use And Care GuideUSB RGB LED TV Strip Backlights
Model No.: JJ-TV-RGB-5V-2M (6.56FT for TV sizes 14″-34″)JJ-TV-RGB-5V-3M (9.84FT for TV sizes 32″-60″)JJ-TV-RGB-5V-4M (13FT for TV sizes 60″-75″)

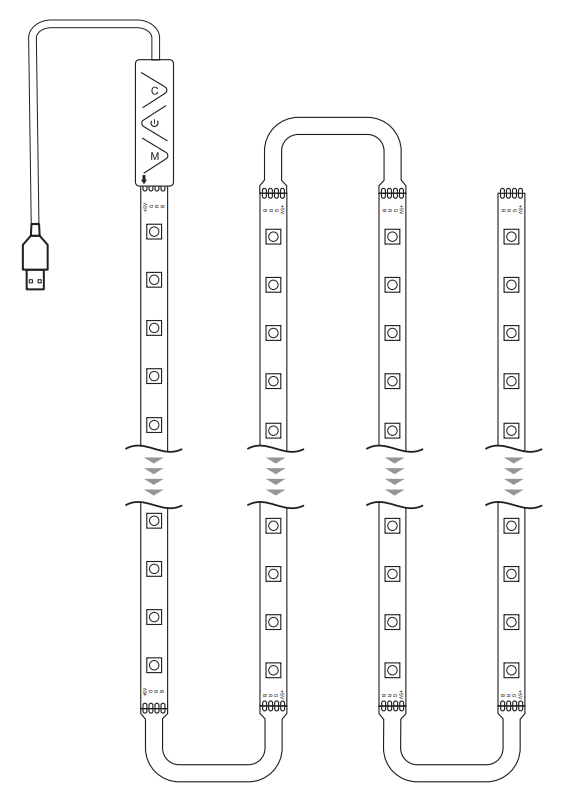

PACKAGE INDUCES COMBINATION OF
| Part | Description | Quantity |
| A | USB/controller Connector(adhesive backs) | 1 |
| B | LED Light Strips (adhesive backs) | 1 |
WARNING
- To avoid electrical shock or product failure, this lamp must be used in dry locations and in open fixtures only.
- This product is not a toy and should not be stored or left in locations accessible to young children.
- To avoid possible fire, product damage, or early lamp failure, this lamp should not be used in heat-producing appliances.
- To avoid possible fire hazards, only connect a maximum of 16.4ft strip to a single AC/DC adaptor and controller.
- To prevent early lamp failure, the lamp should only be installed in operating environments ranging between -14F to +104F (-10C to +40C).
- To prevent early lamp failure, the lamp should not be bent roughly in the position of LED chips. It is suggested that the bent angle should be greater or equal to 90 degrees.
SETTING UP
- Find a USB port on your TV backside. And select the location where the controller is placed. Assure that all mounting areas are smooth free from debris and dust. Before placing strips, measure the lengths of TV sides. Make sure the strips you want to stick are shorter than the TV sides.
NOTE: If any of your TV sides is longer than the strip your want to stick, shorten some strip sections along the vertical lines on strips. Then use Short Connector to join the remaining strips.CAUTION: Never cut off the sections with pins. Only cut the sections from the middle of strips. - Peel off the strip adhesive backs and stick the strips along the TV sides.Stick the 4 strips along the TV. One strip is for one side. Make sure to press the strips firmly into place and press for at least 10 seconds.

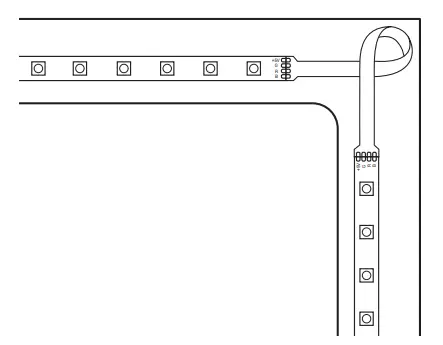

- Fix the strips that stand in the corner via black tapes so that the strips are more stable.
- Plug in the controller to the USB port.
- On the remote, press the ON button aiming directly at the eye at the end of the cord. For the lights to change or move, remote must be aimed at the eye – a black tip at the end of the cord on the controller.
NOTE: If any of your TV sides is longer than the strip your want to stick, shorten some strip sections along the vertical lines on strips. Then use Short Connector to join the remaining strips.CAUTION: Never cut off the sections with pins. Only cut the sections from the middle of strips.

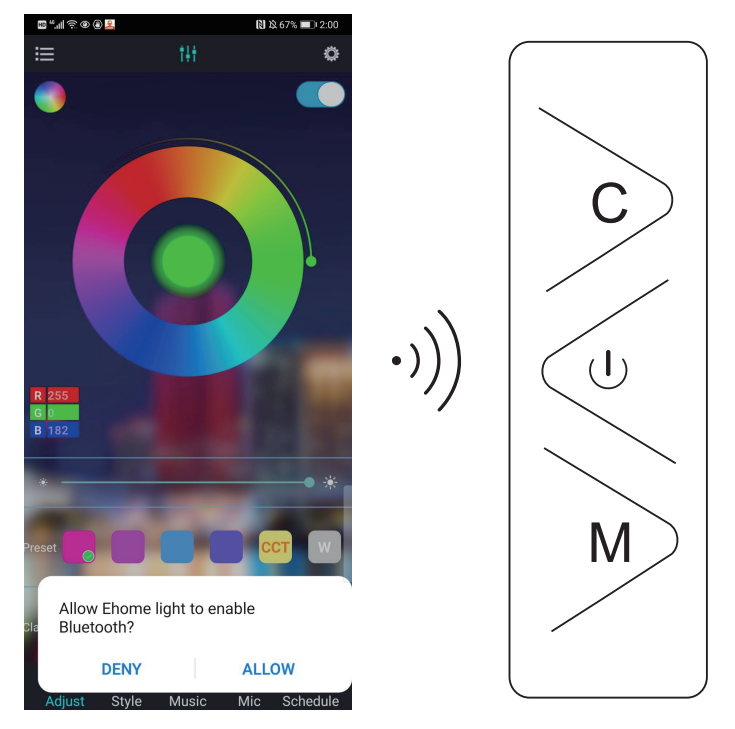

THE PRODUCT CAN BE CONTROLLED IN 2 WAYS.
- Manual Control
C: Static/dynamic mode On/Off power key M: Music mode - Mobile APP ControlDownload Apphttp://www.easytrack.net.cn/download/149FENGTU
This APP works with Bluetooth protocols. Before using the APP to control lights,
- If you use an Apple cell phone, please activate Bluetooth on your cell phone settings, and select the device name “ELK-BLEDOM”. Make sure the device is connected.
- If you use an Android cell phone, please activate Bluetooth on your cell phone settings, then open APP which will automatically match the device. Press ALLOW enabling Bluetooth function.
LIMITED WARRANTY
Capetronix warrants this Product to be free from defects in material and workmanship for 2 years from the purchase date when used as directed. Failure to comply with Product warnings shall void the warranty. This warranty does not cover accidents, abuse, acts of God, use in violation of law, or electrical standards. Capetronix may examine the Product to determine if the Product is defective. If the Product is defective, Capetronix will replace it with the same or similar Product at no charge.LABOR IS NOT INCLUDED. The productshould be returned with proof of purchase date to the location where purchased. This is the exclusive remedy available. Liability for incidental or consequential damages is expressly excluded. Some states and jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Email: [email protected]Web: www.capetronix.comWhatsApp: +86 181 2642 9748MADE IN CHINA
