OWNER’S MANUAL

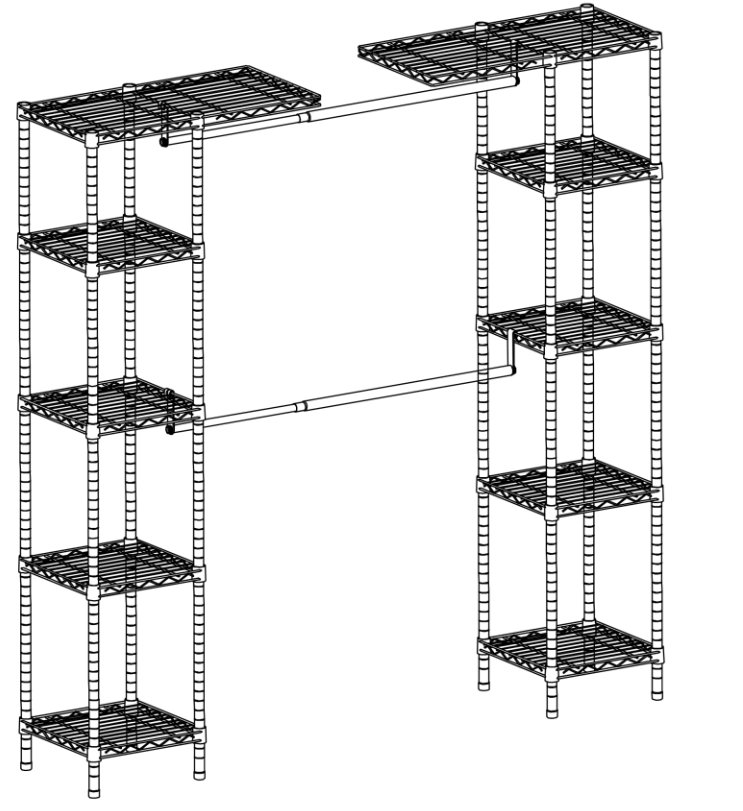

TRINITY EXPANDABLE CLOSET ORGANIZER Model # TBFZ-2701 / TBFPBR-2701
Important / Important / ImportanteFOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Intelligent InstractionDirectives intelligentesInstrucciones Inteligentes
PARTS LIST
Your TRINITY Expandable Closet Organizer should include the following parts. Please inspect box contents to ensure you have received all components.If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online via “Contact Us” section at www.trinityii.com. You will NOT need additional tools for assembly.
ASSEMBLY INSTRUCTIONS
STEP 1
Screw each LEVELER (K) into the bottom of each BOTTOM POLE (F). Turn clockwise to screw in place.Starting from the bottom of the BOTTOM POLE (F), attach two pieces of black plastic SLIP SLEEVES (J) on either side of the pole in the desired groove. Slide the plastic SLIP SLEEVES (J) down until they click into position. Repeat for the other three poles.Tip: Use the grooves on the pole as a guide to ensure a level shelf height.

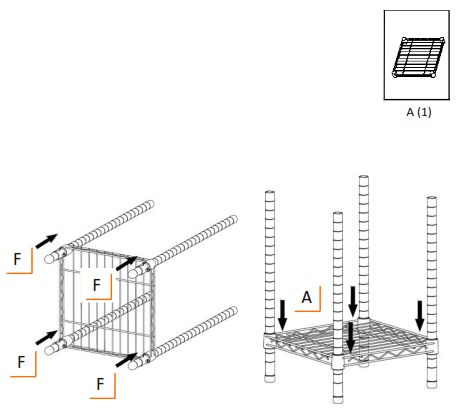

STEP 2With the SMALL SHELF (A) on its side, slide each of the BOTTOM POLES (F) through the shelf collars.Stand the unit upright and push down on the SMALL SHELF (A). Using a rubber mallet to lightly hammer the SMALL SHELF (A) down over the collars is helpful but not necessary.Note: For stability, the lowest SMALL SHELF (A) should be installed no higher than the 3rd indentation from the bottom of the BOTTOM POLES (F).
STEP 3Attaching black plastic SLIP SLEEVES (J) onto the poles in the desired grooves, slide the 2nd SMALL SHELF (A) from the top of the BOTTOM POLES (F) onto the pairs of black plastic SLIP SLEEVES (J).
STEP 4Screw the CONNECTORS (L) into the top of the BOTTOM POLES (F), connect the four MIDDLE POLES (E) and the four BOTTOM POLES (F) with the CONNECTORS (L).
STEP 5Repeat STEP 3 for assembly of the 3rd SMALL SHELF (A)Screw the CONNECTORS (L) into the top of the MIDDLE POLES (E), connect the four TOP POLES (D) and the four MIDDLE POLES (E) with the CONNECTORS (L). Repeat STEP 3 for assembly of the 4th SMALL SHELF (A)
STEP 6Repeat STEP 3 for assembly of the TOP SHELF (B)The first tower is ready. Repeat STEP 1 through STEP 6 to assemble the second tower.Note: For stability, the TOP SHELF (B) should be installed no lower than the 3 rd indentation from the top.

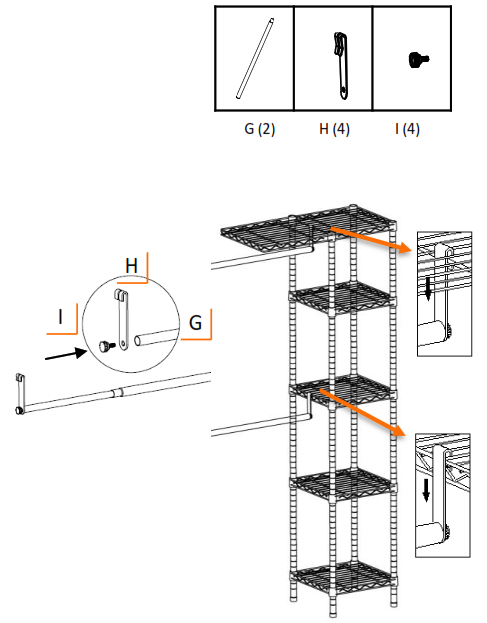

STEP 7Top: Hang the HANGING BRACKET (H) over the wire strand in the middle of the TOP SHELF (B). Do the same for the other side.Bottom: Hang the HANGING BRACKET (H) over the lip of SMALL SHELF (A). Do the same for the other side. Fasten HANGING SCREW (I) through HANGING BRACKET (H) to HANGING ROD (G). Do this for both HANGING RODS (G).Note: The organizer is able to fit closet widths ranging from 56” to 78”. Please place towers in position before expanding the HANGING ROD (G) and attach to HANGING BRACKET (H) with HANGING SCREW (I).
STEP 8
Place CLOSET ORGANIZER by the wall, drill 1 hole on each side of the wall at the same level of TOP SHELF (B) where ANTI-TIPPING KIT (M) is desired to be placed.Fasten ANTI-TIPPING KIT (M) to the wall and cable loop through TOP SHELF (B) as the image shows, and close up the cable loop, connecting CLOSET ORGANIZER to the wall via ANTITIPPING KIT (M).Place each BAMBOO BOARD (C) onto each SMALL SHELF (A) as shown.

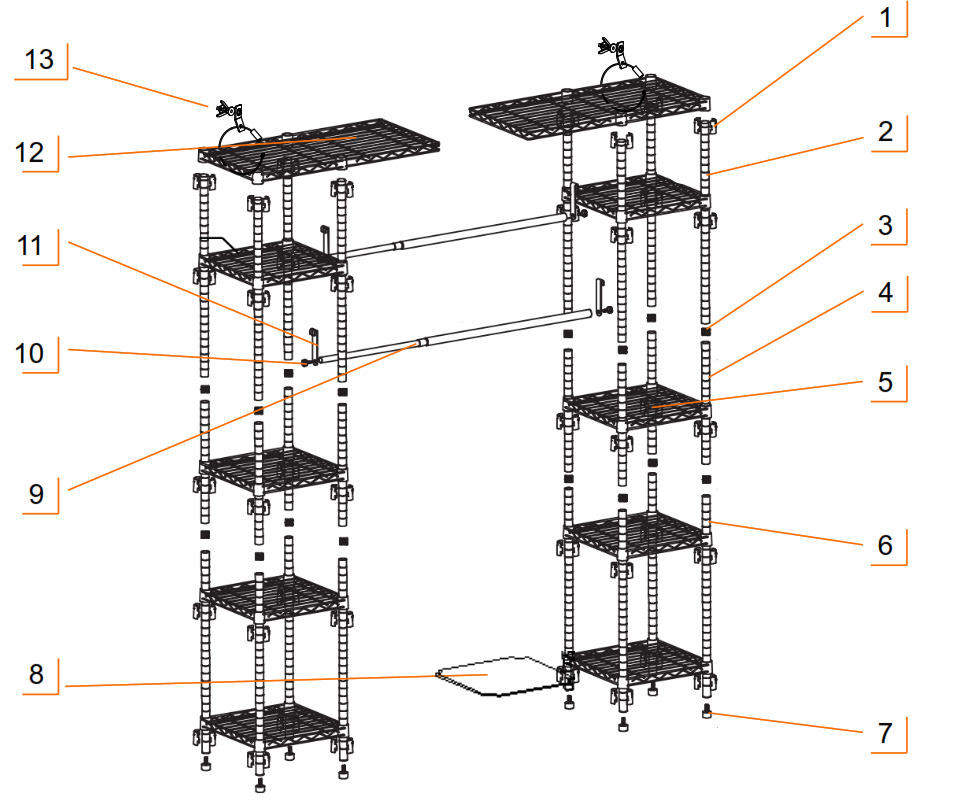

SERVICE PARTS LIST – TBFPBR-2701 Bronze Color
TRINITY Customer Service provides the following replacement parts:
|
Part Numbe |
Description |
| 1. XBK-01-012-2543 | Slip Sleeve |
| 2. PBR-04-006-2750 | Top Pole |
| 3. ZSV-01-013-2523 | Pole Connector |
| 4. PBR-04-007-2800 | Middle Pole |
| 5. PBR-03-007-1414 | Small Shelf |
| 6. PBR-04-008-2700 | Bottom Pole |
| 7. XBK-98-003-2538 | Feet Leveler |
| 8. ONA-20-003-1313 | Bamboo Board |
| 9. PBR-13-008-2700 | Hanging Rod |
| 10. XBK-01-024-0627 | Hanging Screw |
| 11. PBR-02-010-0001 | Hanging Bracket |
| 12. PBR-03-024-1428 | Top Shelf |
| 13. XSV-02-011-0007 | Anti-tipping kit |
SERVICE PARTS LIST – TBFZ-2701 Chrome Color
TRINITY Customer Service provides the following replacement parts:
Part Number Description1) XBK-01-011-2543 Slip Sleeve2) ZSV-04-006-2750 Top Pole3) ZSV-01-013-2523 Pole Connector4) ZSV-04-007-2800 Middle Pole5) ZSV-03-007-1414 Small Shelf6) ZSV-04-008-2700 Bottom Pole7) XBK-98-003-2538 Feet Leveler8) ONA-20-003-1313 Bamboo Board9) ZSV-13-008-2700 Hanging Rod10) XBK-01-024-0627 Hanging Screw11) ZSV-02-010-0001 Hanging Bracket12) ZSV-03-024-1428 Top Shelf13) XSV-02-011-0007 Anti-tipping kit
