QUICKSTART GUIDE

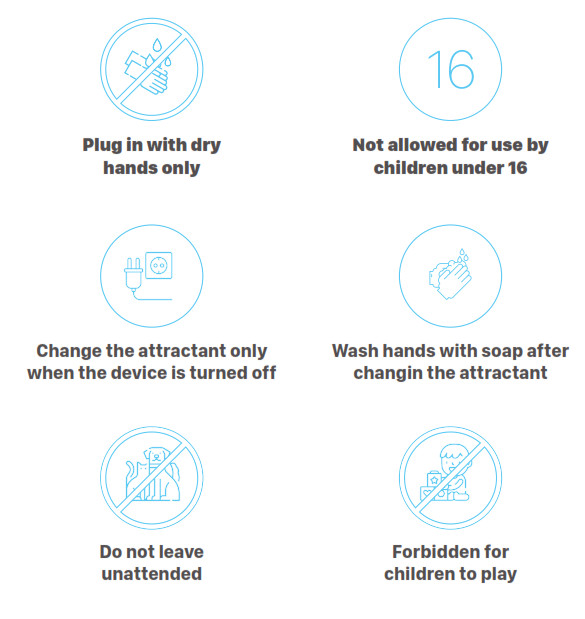

SAFETY NOTICES
If you will have any questions, feel free to contact us by phone number:(800) 674-92-29 (Free)or via email:[email protected]
INSTALLING
Suggested suspension height:keep the product hanged at a height of 4 ft (1.2 m) at a distance of 1 ft (0.3m) from the wall. The device can be mounted on the ceiling using a hanging chain. For installation, drill holes with a 9 mm drill. Depth 80-90 mm., Insert into the dowel holes.Into dowel are screwed hooks, on which an insecticidal lamp is subsequently suspended using a chain.
HOW TO REPLACE THE LIGHT TUBES
STEP 1Unplug the power cord.
STEP 2ENSURE screwdriver and hands are dry! Discharge the internal electrified grid by using a dielectric screwdriver: Insert the metal tip of the screwdriver onto the internal electrified grid. You may hear and see a zap. insert the metal tip of the screwdriver onto the internal electrified grid until there are no zaps.
STEP 3Flip the device 180 degrees to the back of the device. Press the black protective grid down to the bottom. The protective grid is spring-loaded, then lower it down.
STEP 4Rotate gently the tubes until you see the golden tube plug from the tube socket gap. When you see the golden tube plug connector in the tube socket gap, then you have scrolled everything correctly. After that, carefully remove the lamp from the connector.
ATTENTION: When replacing the lamp tube, you should hold the lamp head part. Do not grab the transparent glass tube to avoid leaving fingerprints, sweat, and dirt, which will affect the ultraviolet transmission effect.
STEP 5Insert the replacement tubes with new extra free 2 tubes. Insert the replacement tubes with gold connectors into the tube socket gap, and gently scroll clockwise.
STEP 6Close the protective grid. Press on it so that it closes. Insert the electrical plug into an outlet turn on the bug zapper to check the light of the tubes.
HOW TO CHANGE ATTRACTANT
STEP 1Unplug the power cord.

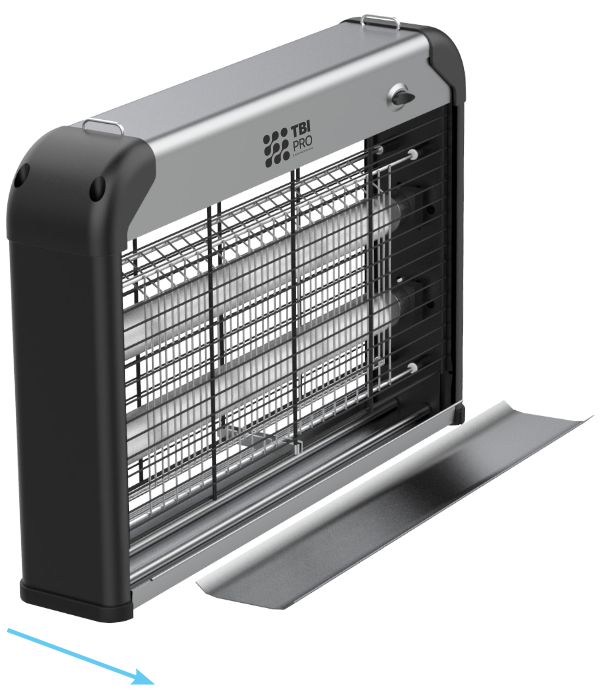

STEP 2Remove the Bug Tray.
STEP 3Remove the attractant cartridge from the sealed pouch and remove the protective cover from the face of the cartridge.Avoid touching the openings in the cartridge and always wash your hands thoroughly after contact.
STEP 4Place the attractant at the spot marked in the bug tray on the picture. Wash hands thoroughly after handling.Back the Bug tray in the Bug Zapper bottom.
