CBF100A10″ COMPACT ACTIVE SUBWOOFERALL-IN-ONE DUAL VOICE COIL SUBWOOFER & AMPLIFIER
180W
Subwoofer placement
Controls & connections
Wiring configurations

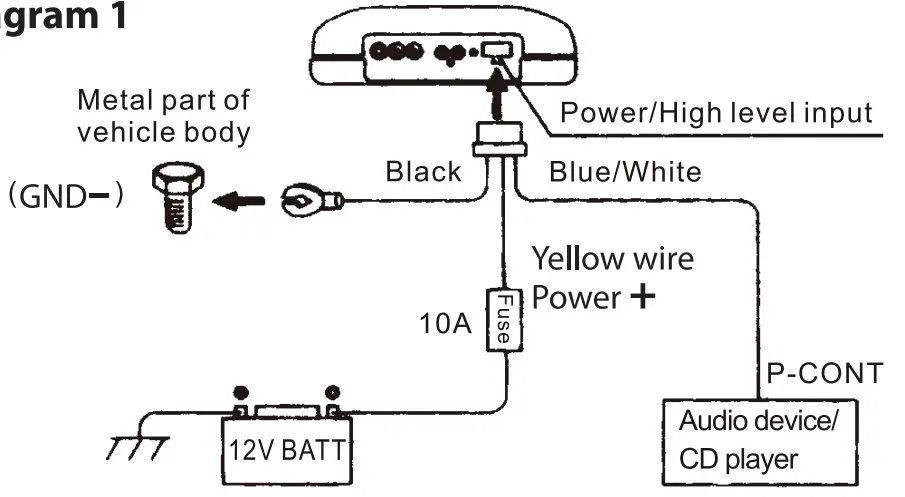

Wiring Diagram 1
Wiring Diagram 2 (High level input)
Wiring Diagram 3 (Low level RCA input)
Features & specifications
| • Dual 2 ohm Voice Coil• Slim woofer: 10 inch• Maximum output power: 180W• Frequency: 20-160Hz• S/N(A): 95d8• Maximum current consumption: 10A• RCA input: 80mV• Speaker input: 0.8V• Voltage: 14.4V (11-15V)• Die-Cast Aluminium | • Includes wiring harness for high-level input installation• For low-level RCA installation, RCA leads required (not included)• Remote control for subwoofer level• Phase switch: 0° or 180°• Gain control• Auto turn on/off for OEM systems• Circuit protection: Thermal, Short & Overload• Size: 360(L) x 279(W) x 90(H) mm |
Technical assistance
If you need assistance setting-up or using your CRYSTAL M product now or in the future, call CRYSTAL M Support.AustraliaTEL: 03 – 8587 8898Mon-Fri 9am — 5pm AEST
This manual is considered correct at the time of printing but is subject to change. For a downloadable manual go to the web address https://tdj.com.au/firmware/CRYSTAL M/ and search for your model.Copyright© 2021 by TDJ AustraliaAll rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, copying or other electronic or mechanical methods, without the prior written permission of the author.
