Technaxx Transmitter with wireless charging function User Manual

Technaxx® * User ManualFMT1200BT Transmitter with wirelesscharging functionWireless charging max. 10W wired charging max. 2.4A and FM transmission to your car radio

The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this device, to which this user manual belongs, complies with the essential requirements of the standards referred to the Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully.Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks). Free Email: [email protected]Keep this user manual for future reference or product sharing carefully. Do the same with the original accessories for this product. In case of warranty, please contact the dealer or the store where you bought this product. Warranty 2 years

Features

• FM Transmitter for Audio Streaming with BT technology V4.2
• Handsfree function
• Flexible goose-neck & suction cup
• Advanced 10W induction charging technology with optimized charging speed, compared to conventional 10W induction chargers
• Supports iPhone X/8/8 Plus, Samsung Galaxy S9/S8/S8 Plus/Note 8/S7/S7 Edge/ Note 7/S6/S6 Edge/Note 5 (07-2018)
• Patented clamp construction for variously Smartphone fitment
• Eliminate safety concerns with over-voltage protection & temperature control
• One-hand operation to attach or extract your phone

Technical specification

Bluetooth	V4.2 / ~10m distance
BT transmitting frequency	2.4GHz (2.402GHz–2.480GHz)
BT radiated output power max.	1mW
FM frequency range	87.6–107.9MHz
FM radiated output power max.	50mW
Indicator	2 LED lights for charging indication
Input power adapter	DC 12–24V (cigarette lighter socket)
Output power adapter	DC 5V (USB & MicroUSB)
Output power	Max. 10W (induction charging) 2.4A (USB port)
Smartphone	(W) 8.8cm maximum
Power adaptor cable	Length 70cm
Material	PC + ABS
Weight	209g (without power adapter)
Dimensions	(L) 17.0 x (W) 10.5 x (H) 9.0cm
Package contents	FMT1200BT Transmitter with wireless charging function, Cigarette power adapter to Micro USB with 2.4A USB power adapter, Spare fuse, User Manual

Introduction

This device provides you a wireless charging solution for any Smartphone that supports wireless charging. It lets you stream music and calls directly from your  Bluetooth devices to the FM stereo system of your vehicle. With advanced wireless charging technology, this device delivers up to 10W standard charging capability. The chucking type structure with a maximum of 8.8cm width enables a one-hand operation to attach or extract your phone. Note: Attachment or extraction should only be done before or after driving the car. Do not attach or extract the phone while driving!

Compatible Smartphone (July 2018)

This 10W induction charger is only compatible with Samsung Galaxy S9/S8/S8 Plus/Note 8/S7/S7 Edge/ Note 7/S6/S6 Edge/Note 5 and other 10W  induction charge enabled devices. iPhone X/8/8 Plus are Qi-5W induction charging and charging at its normal standard charging rate. 10W induction charging is  10% faster than 5W induction charging. For Bluetooth pairing compatibility, it supports devices up to Bluetooth version 4.2.

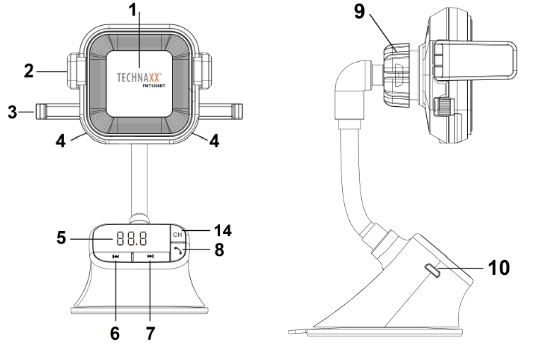

Product overview

1	Induction charging area
2	First Arm
3	Second Arm
4	LED Indicator
5	LED Display & Microphone
6	Up
7	Down
8	Answer/Hang off/Play/Pause
9	Ball joint angle adjustment
10	Micro USB charging port
11	USB Output: DC 5V/2.4A  (power adapter)
12	Suction cup
13	Suction cup trigger

Installation Instruction

A: Remove the film from the bottom of the suction cup. Use a clean cloth to clean your dashboard where you want do place the holder.Do not use soap or chemicals.Open the suction cup trigger (13), place the holder with a little pressure on your dashboard and close the suction cup trigger (13).

Note: If the suction cup is dirty or dusty clean it with a little bit of water by applying it with your finger. When the surface is try and sticky again try again to attach the holder to your dashboard. Do not use soap or chemicals.

I want it is also possible to attach the holder to the windshield, then notice that the buttons and the display will be upside down.

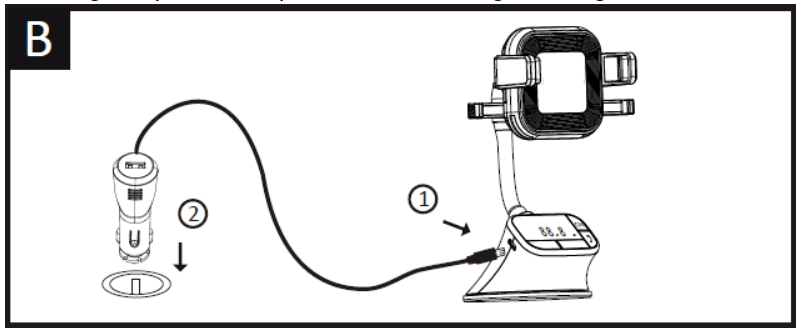

B1: Connect the FM transmitter with the Micro USB cable.B2: Plug the power adapter into the car cigarette lighter.

C: Push the second arms (3) towards

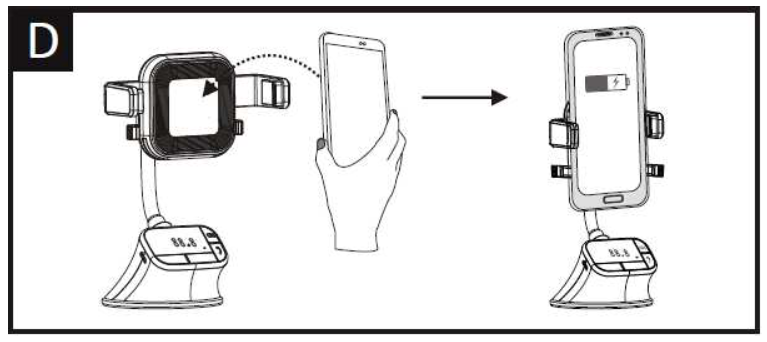

D: Place your Smartphone into the bracket with a slight push

Operating Instruction

Wireless Charging

• The two indicator LEDs will flash in RED ~3 seconds once the device is powered on.
• Before placing your Smartphone into the bracket, make the first arms (2) are separated and the second arms (3) are closed.
• If a Smartphone is being placed which does not support wireless charging, the two indicator LEDs are flashing in BLUE.
• Charging starts as soon as an effective induction field has been generated. The two indicator LEDs will blink slowly in RED and the current charging status appears on your Smartphone.
• If no connection can be established through induction, you may have to change the position of your Smartphone.
• Charging stops automatically once the battery of your device is fully charged. The two indicator LEDs will stay in BLUE.

Car charger function

• The FMT1200BT comes with an extra USB port on the power adaptor for charging. The output is DC 5V/2.4A. Connect the FMT1200BT to your  Smartphone for wired charging (use your Smartphone’s USB cable).

FM transmitter function

• Tune your car radio to an unused FM frequency, then match the same frequency with the FM transmitter.
• Press the “CH” button to enter FM frequency mode, press (up) to increase and press (down) to decrease.
• Long press (up) to increase volume and long press (down) to decrease volume.

Bluetooth function

• Using Bluetooth for the first time, you need to pair your Smartphone with the FM transmitter. Activate the Bluetooth function on your Smartphone and then search for a new device. When the Smartphone detects this FM transmitter named “FMT1200BT” click on it to pair. If needed use the original  password “0000” to pair the device.
• In the music playing mode, when there is an incoming call, this FM transmitter will automatically switch to the telephone mode.

Handsfree function

• Press the phone button to answer the incoming call.
• Press the phone button to hang off a current call.
• Double press the phone button to call the last caller in your call history.

Button Control

Operation	FM transmitter
Answer a call/ Hang up a call	Press  button: answer the callPress  button: hang off the call
Play / Pause music	Press  button: play musicPress  button again: pause playing
Adjust Volume (min = 0; max = 30)	Long press  button: increase volume / Longpress  button: decrease volume
Set frequency	Press CH button first, thenPress  button: increase frequencyPress  button: decrease frequency
Choose music	Press  button: play next songPress  button: play the previous song

Warnings:

• Improper use of this product may result in damage to this or attached products.
• Never use this product in the following conditions: Moist, underwater, near a heater or high-temperature service, indirect strong sunshine, conditions with apt falling
• Never dismantle the product.
• For charging a Smartphone with the inductive charger make sure that your Smartphone is compatible with the induction charging technology. Read the operating instructions of your Smartphone first!
• Note that mobile phone sleeves, covers, etc., and other materials between the inductive charger and the backside of your Smartphone may disturb or prevent actually the charging process.

Hints for Environment Protection: Packages materials are raw materials and can be recycled. Do not disposal of old devices or batteries into domestic waste.  Cleaning: Protect the device from contamination and pollution (use a clean drapery). Avoid using rough, coarse-grained materials or solvents or aggressive  cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany
