Test InstrumentBattery Quality Analyzer
5 Commonwealth Ave Depot Woburn, MA 01801 Phone 781-665-1400 Toll-Free 1-800-517-8431
Visit Us at www.Testequipmentdepot.com
To prevent faults or quality issues in critical battery backup applications caused by defects in stationary batteries, the TEKON960 battery quality analyzer enables the user to diagnose and evaluate the performance and the degree of aging by testing the conditions of individual batteries (1000V max) in the type of cell, module or pack. TEKON960 can handle virtually all battery testing (e.g. aged status of battery under test and the condition of a power system) in systems that use high-voltage battery packs, such as ESS, EV, HEV and PV as well as UPS.
Features
- Measures internal resistance of 1000V max of batteries
- Measures voltages at the battery (DC1500V1
- Measures voltage of UPS (AC1000V)
- Measures ripple voltage, current, and temperature
- Diagnoses aging of battery and predict its useful life (to determine the timing for replacement)
- Can conduct history management of battery using 8MB memory
- Auto Hold and Data Storage
- Prints out measurement data in reports
- Transmits measurement data to remote locations (e-mail, served using Mobile App
General specifications
| Power (battery) | 7.2V/5.2Ah Li-ion. 12V/2.5A DC adaptor |
| Data storage | Micro SD Card (8GBI |
| Communication | Bluetooth Ver2.1 I, EDR Class2 |
| LCD display | 1024×600 pixels, T TFT with TSP |
| Operating temp/ humidity | 0°C – 45°C. RH 85% max |
| Storage temp/ humidity | -20°C – 60°C. RH 85% max |
| Compliant standards | IEC 61010-1 CAT IV 600V. CAT III 1000V Pollution Degree 2, IEC 61010-2-030. IEC 61010-031. IEC 61326. EN 50160. IEC 61000-4-30 Class S. IEC 61000-4-15, IEC 61000-4-7 |
| Dimension | 240(L1x160(W1x651H1 mm |
| Weight | 900g |
Electrical specifications
| Measurement of resistance (Auto/manual) | |||
| Range | Resolution | Measurable current | Accuracy |
| 3m0 | lull | 100mA | ±0.8%rdg±10dgts |
| 30m0 | 10u0 | 100mA | ±0.5%rdg±10dgts |
| 300m0 | 100u0 | 10mA | |
| 30 | 1m0 | 1 mA | |
| 300 | 10m0 | 0.1mA | |
| 3000 | 100m0 | 0.1mA | |
| 31M | 10 | 0.1mA |
| DCV (Auto/Manual) | |
| Range | 5, 50, 500V, 1500V |
| Resolution | I mV |
| Accuracy | ±0.5%rdgt5dgts |
| ACV | |
| Range | 0-1000V |
| Resolution | 100mV |
| Frequency | 40Hz-100Hz |
| Accuracy | ±0.757ordg:100gts |
| Ripple voltage | |
| Range | 0-5V |
| Resolution | I mV |
| Frequency | 40Hz-10Hz |
| Accuracy: | 5 0%rdg: 1 (Ups |
| Measurement of temperature | |
| Range | -10°C – 100°C |
| Resolution | 0.1°C |
| Accuracy: | ±1°C+2dgts |
| DC | |
| Range | 4, 40, 400A |
| Resolution | 1 mA |
| Accuracy: | ±0.5%rdg±5dgts (+CT Tolerance) |
| AC | |
| Range | 4, 40, 400A |
| Resolution | 1 mA |
| Accuracy: | ±0.75%rdg±10dgts (+CT Tolerance) |

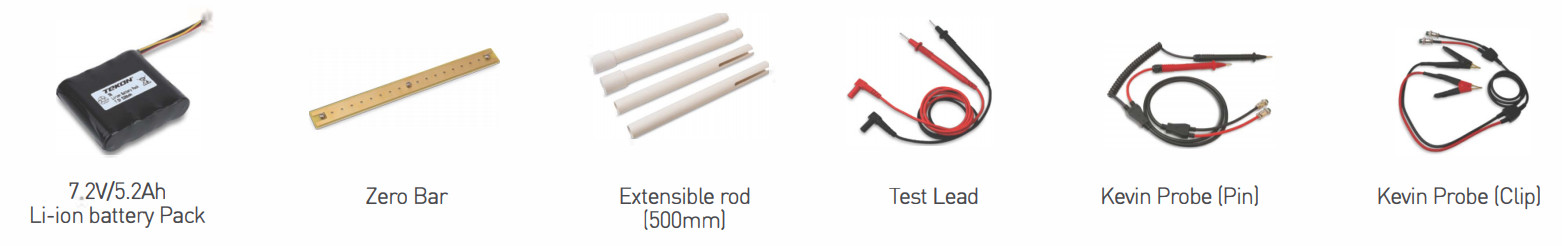

Accessories
| Standard | Pin-type KeMn Probe. Test Lead. Li-ion battery (7.2V/5.2Ah). 12V/2 5A adaptor. Zero-Bar. Portable bag. PC Program. User’s Manual. clamp-on/950B |
| Optional | Extensible rod (500mm1. clamp. Clip-type Kelvin probe |
Comparison of functions in TEKON950 Series
| Impedance | Scale | 3m0-3K0 | 3m0-3K0 |
| Accuracy | 10.8% | 10.8% | |
| Max Test Voltage | 5COV | 1000V | |
| DCN | 0-1500V | 0-1500V | |
| ACN | 0-1000V | 0-1COOV | |
| Ripple Voltage | 0-5V | 0-5V | |
| DC/A(Floating Current! | 4A/40A/400A | 4AI40/4/400A | |
| AcNIRipple Current! | 4A/40A/400A | 44/40N400A | |
| Temperature | NTC | NTC | |
| Analyzer | Trend Change time | 0 | 0 |
| 0 | 0 | ||
| Data record | 8MB | 8MB | |
| PC Interlace | Bluetooth | Bluetooth | |
| External Interlace | Mobile App | Mobile App | |
| Auto Hold | 0 | 0 | |
| Auto Record | 0 | 0 |
