teleadapt TA-7541U PowerHub Mini Installation Guide

teleadapt TA-7541U PowerHub Mini

Products Covered By This Installation Guide

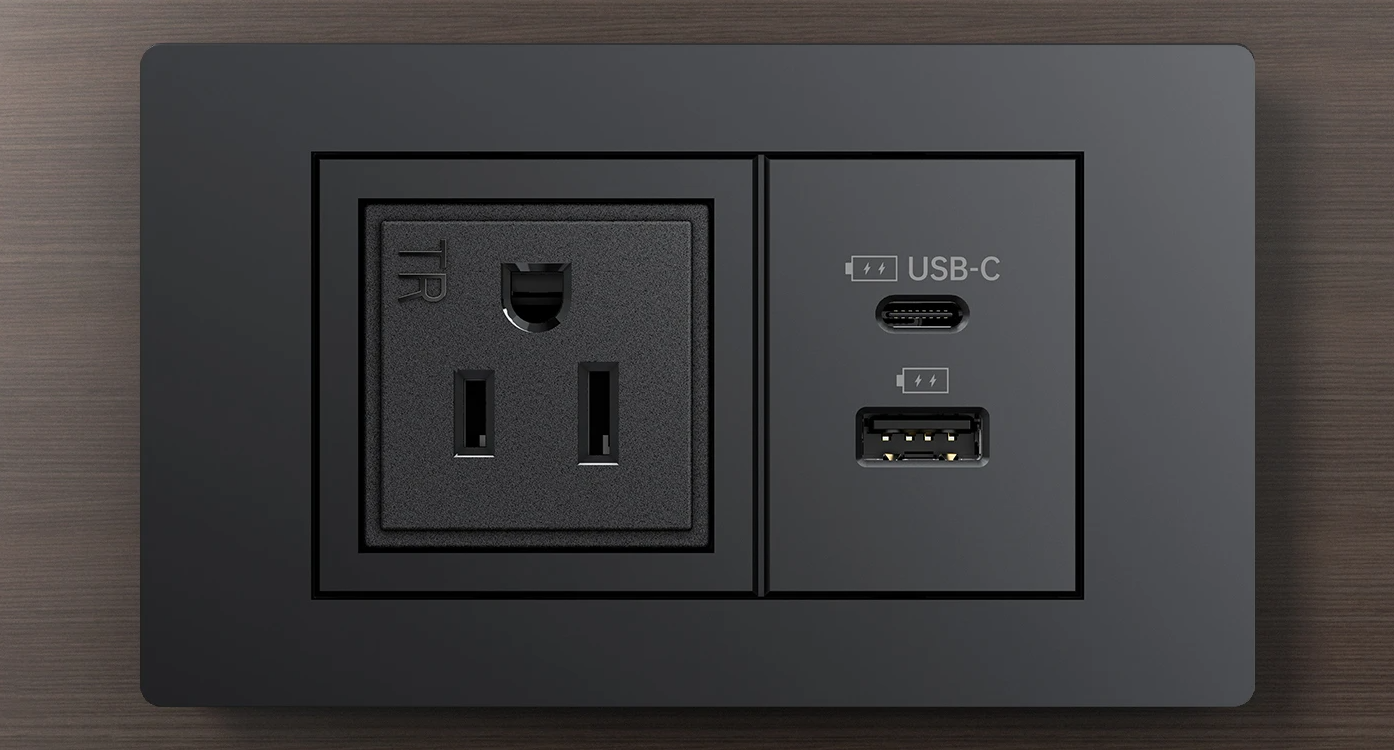

The TeleAdapt PowerHub Mini (TA-7541U) is a furniture power distribution unit which provides a universal power socket and 2 USB charging sockets (1 x USB Type-CTM that can charge up to 5V/3A and 1 x USB Type A that can charge up to 5V/2.4A).The TA-7541U is provided with 2 trims (Slimline black and Slimline metallic) and a detachable country specific power cord.Installation is simple as the TA-7541U only requires a single connection to a power outlet (120V-240V), so fitting can be undertaken by anybody who has a screwdriver and does not require a qualified electrician.

IMPORTANT NOTE: The TA-7541 does NOT convert the mains voltage.

PowerHub Mini Part Numbers

  • TA-7541U-UKN3 – Slimline trim, soft-touch black, 3.5M UK cord
  • TA-7541U-UKWN3 – Slimline trim, soft-touch white, 3.5M UK cord
  • TA-7541U-EUN3 – Slimline trim, soft-touch black, 3.5M EU cord
  • TA-7541U-EUWN3 – Slimline trim, soft-touch white, 3.5M EU cord
  • TA-7541U-JPN3 – Slimline trim, soft-touch black, 3.5M Japan cord
  • TA-7541U-JPWN3 – Slimline trim, soft-touch white, 3.5M Japan cord

Important Safety Instructions

  • Read these instructions carefully before attempting any installation. Follow all instructions and heed all warnings. These instructions should be kept for future reference.
  • This equipment must be securely attached to furniture in strict accordance with these installation instructions.
  • This equipment is designed for indoor use only.
  • Only use with attachments and accessories as specified by the manufacturer.
  • The mains plug used to disconnect this equipment from its power source must be readily accessible at all times.
  • Ensure the power cord is uncoiled before installation.
  • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the equipment.
  • The power cord must be plugged into a mains socket outlet with protective earthing.
  • Clean only with a dry cloth.
  • Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, for example if the power supply plug or cord is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been exposed to rain or moisture, does not operate normally or has been dropped or damaged.
  • Unplug this equipment during lightning storms or when unused for long periods of time.
  • Do NOT defeat the safety purpose of the grounded plug. If the provided plug does not fit into your outlet consult a qualified electrician to replace the obsolete outlet.
  • Do NOT install or use this equipment near water.
  • Do NOT expose this apparatus to rain or moisture.
  • Do NOT expose to dripping or splashing. No objects filled with liquid such as vases shall be placed on the equipment.
  • Do NOT install near any heat sources such as radiators, convection heaters or other apparatus such as amplifiers that produce heat.
  • Do NOT exceed the maximum load of 10 amps.

Approval Information

The internal PSU is ETL listed for the USA and Canada and conforms to UL1310. It also confirms to FCC Part 15b.

What Is Included In The Box

  • 1 x PowerHub Mini
  • 1 x Black or White trim
  • 1 x Black or White Metallic trim
  • 4 x Fixing screws
  • 1 x Installation Guide
  • 1 x Power Cord (UK, EU or Japan depending upon variant)

Preparation For Installation

The PowerHub Mini is designed to be installed in furniture.Ensure the location chosen for the equipment complies with the requirements of the “Important Safety Instructions”.A cutout will need to be made in the furniture, cutout dimensions are given shown below (Note: the cutout height of 64mm must NOT be exceeded as the trim overlap is small). After the cutout is prepared the only tools you will need are a medium sized cross head screwdriver.The PowerHub Mini requires power from a 120V or 240V mains outlet.

Installation

Before starting installation make sure you have read and understood the “Important Safety instructions”.

  • Step 1Confirm the furniture cutout dimension to accommodate the PowerHub Mini is within the limits shown below. Note that in addition to the minimum depth requirement of 60mm (2.36in) there should also be at least 50mm (1.97in) clearance below the unit to allow cabling to exit cleanly.
  • Step 2Remove the PowerHub Mini, trims and screws from the box.
  • Step 3Attach the supplied power cord to the PowerHub Mini flying lead and then thread the power cord through the cutout in the furniture.
  • Step 4Lean the PowerHub Mini on the bottom of the cutout in the furniture and push it into the cutout by rotating it slightly
  • Step 5Fasten the 4 cross head screws to fix the PowerHub in the furniture.
  • Step 6Align the selected trim (black or metallic) with the PowerHub Mini ensuring that the 2 small cutouts on the trim are on the bottom. Press firmly and evenly to clip the trim into place.
  • Step 7Finally insert the plug on the end of the rear power cable into an appropriate 120V-240V mains outlet.
  • Installation is now complete.

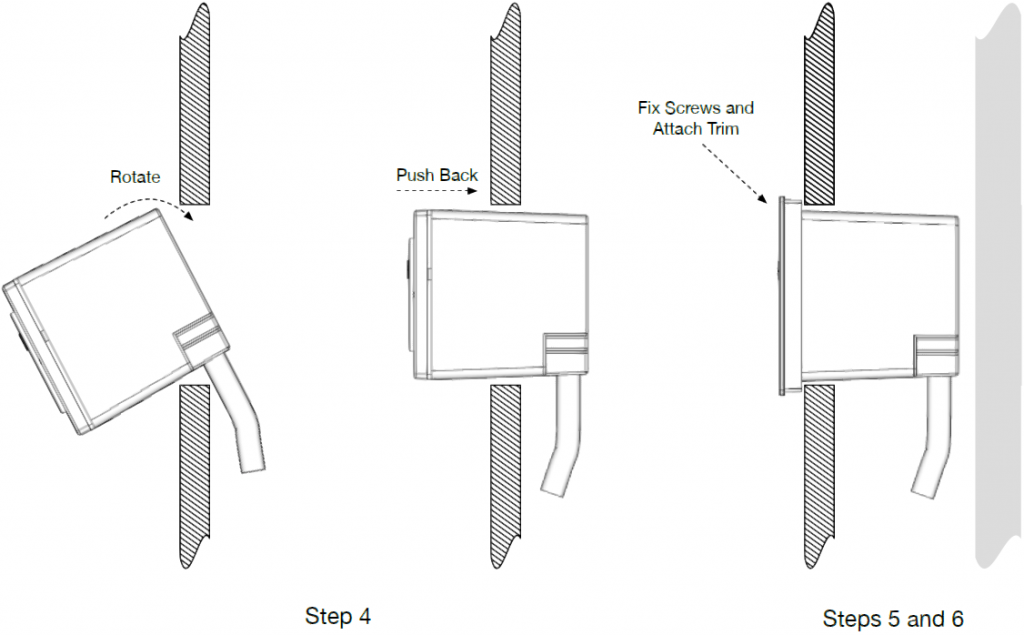

Fitting PowerHub Mini through the cutout

Additional Information

USB Charging

The PowerHub Mini provides 1 x USB Type-CTM socket that can charge up to 5V/3A and 1 x USB Type A socket that can charge up to 5V/2.4A. The USB sockets can be used simultaneously. Overload protection is provided in the case that the device being charged or the cable being used is faulty.

Removing the PowerHub Mini from FurnitureIf you need to remove the equipment for any reason, first ensure the equipment is disconnected from the mains power source.

  1. Unplug the PowerHub Mini from the mains supply.
  2. Use a medium flat blade screwdriver to release the 2 clips on the bottom of the trim.
  3. The trim can now be gently removed by hand. Be careful not to bend the trim excessively or it may deform or break.
  4. Unscrew the 4 cross head screws and carefully withdraw the unit from the furniture being careful not to damage any cables.

Warranty

Please see TeleAdapt “Sales Terms & Conditions” which are available at http://www.teleadapt.com/teleadapt/sales-terms-conditions.html

Contact Details

AmericasTeleAdapt Inc 1315 Greg Street Suite 110SparksNV 89431USATel: +1 775 355 8585

AsiaTeleAdapt (Hong Kong) Limited Hong KongKowloonTel: +852 2155 1383Email: [email protected]

Visit our website at: www.teleadapt.comPowerHub Mini Universal Installation Guide_05/2021_REV-1.1
