thesleepstore Frank Change Table
Parts Checklist
| Front End Plate |
Rear End Plate |
 Shelf Plate |
 Change Pad |
 Bottom Shelf Side Rails |
Top Shelf Side Rails |

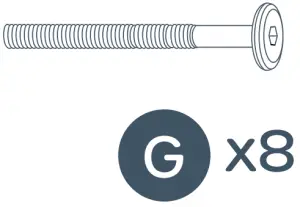

 50mm Bolt |
Wood Pins |

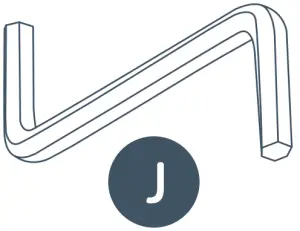

 Allen Key |
Assembly Diagram
|
|
| FALL HAZARD: Children have suffered serious injuries after falling from change tables. Falls can happen quickly.• STAY in arm’s reach of your child. |
The recommended weight of the occupant placed on this change table should not exceed 13.6kg.

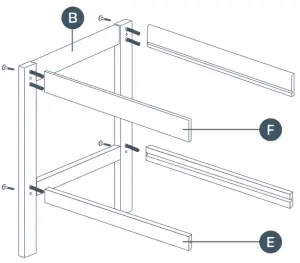

Step 1Assemble top shelf side rails (F) and bottom shelf side rails (E) with the rear end plate (B) using 6x wood pins (H) and 4x of the metal bolts (G).
Step 2Carefully insert the shelf plates (C) by sliding them gently down the grooves in the shelf side rails.Insert the 6x wooden pins as shown in to the shelf side rails, remembering to leave the hole for the bolt in each of the rails.
Step 3Assemble the front end panel, aligning it carefully with the shelf plates and wooden pins. Do not fully tighten bolts at this stage.
Step 4Move your change table in to position and tighten the bolts. Place the change pad (D) on the top shelf. Your Frank Change Table is now complete!
Change Table Safety tips
NEVER LEAVE YOUR BABY UNATTENDED ON THE CHANGE TABLE.
- Have everything ready before you place your baby on a change table.
- Place anything that could harm your baby out of reach.
- Always keep one hand on your baby when using a change table.
- Ignore interruptions, or take your baby with you, if you have to leave the change table.
- Use the change pad supplied with the change table or one that is no thicker than the one supplied.
- Never hang bags or clothes from the change table as this can make it unstable.
- Position the change table away from curtains, blinds, heaters & power points.
Maintenance & Care
All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.
Your change table can be cleaned by wiping with a damp cloth and drying with a soft clean cloth. Do not use the abrasives, bleach, alcohol or ammonia based household polishes.
If part of the change table becomes damaged please contact us for the correct replacement part.
Customer Care
If you have a problem with this product or require replacement parts, please contact The Sleep Store on the details below.
New ZealandPhone: (09) 816-8706Email: [email protected]
AustraliaPhone: 1800 – 630216Email: [email protected]
The Sleep Store Limited, 31 Portage Road, New Lynn, Auckland, 0600, New Zealand.
www.thesleepstore.co.nz | www.thesleepstore.com.au
