TIMEX 56482 Reef Gear Temperature Sensor Sports Watch User Manual

TIMEX 56482 Reef Gear Temperature Sensor Sports Watch

EXTENDED WARRANTY

Available in U.S. only. Extend your warranty for an additional 4 years from date of purchase for $5. You can pay with AMEX, Discover, Visa or MasterCard by calling 1 800-448-4639 during normal business hours. Payment must be made within 30 days of purchase. Name, address, telephone number, purchase date, and 5-digit model number required. You can also mail a check for $5 to: Timex Extended Warranty, P.O. Box 1676, Dept. EF, Little Rock, AR 72203.Please read instructions carefully to understand how to operate your Timex watch.

FEATURES

  • Temperature display
  • 12/24 hour time display
  • Two time zones
  • Alarm
  • 24-hour count-down timer
  • 99-lap chronograph
  • Hourly chime

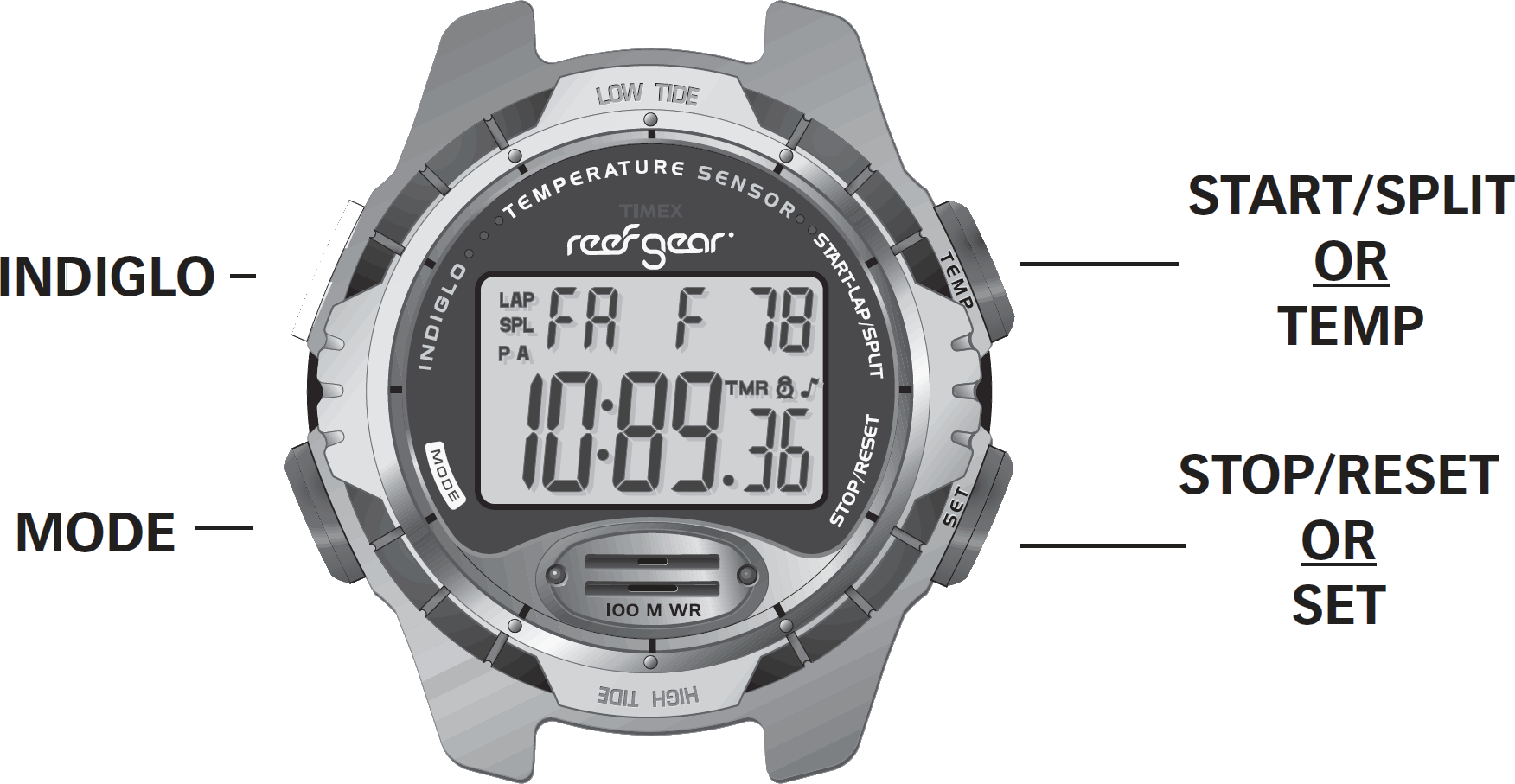

BASIC OPERATIONS

  1. Press MODE to cycle through CHRONO, TIMER, ALARM, and TIME ZONE modes.
  2. Press INDIGLO to illuminate watch face.
  3. When setting functions, press and hold START/SPLIT to advance digits rapidly. In any mode, press MODE to view time display.
  4. Press any button to stop alarm or timer beeps.

TIME AND DATE

  1. Press and hold SET. SECONDS digits will flash.
  2. Press START/SPLIT to set SECONDS to 0.
  3. Press MODE to select HOURS.
  4. Press START/SPLIT to advance. Go through 12 hours for AM or PM
  5. Press MODE to select TENS of MINUTES, then START/SPLIT to advance.
  6. Repeat to set MINUTES, MONTH, DATE, DAY, 12- or 24-hour TIME display.
  7. Press SET when done.

CHRONOGRAPH

  1. Press MODE to select CHRONO
  2. Press SET to select Lap or Split display
  3. Press START/SPLIT to start.
  4. Press START/SPLIT to record lap time.
  5. Press MODE to display lap or split time (automatic after 15 seconds).
  6. Press STOP/RESET to pause.
  7. Press START/SPLIT to resume
  8. Press STOP/RESET to stop.
  9. Press STOP/RESET again to reset.NOTE: When CHRONO is running LAP or SPLIT appears in time display.

COUNTDOWN TIMER

  1. Press MODE to select TIMER
  2. Press SET to select HOURS. Digits will flash.
  3. Press START/SPLIT to advance.
  4. Press MODE to select TENS of MINUTES, then START/SPLIT to advance.
  5. Repeat to set MINUTES, TENS of SECONDS, and SECONDS
  6. Press SET when done.
  7. Press START/SPLIT to start timer.
  8. Press STOP/RESET to pause, START/SPLIT to resume.
  9. Press STOP/RESET again to reset.
  10. Press and hold SET to set new time.

Watch will beep when countdown ends.

ALARM AND CHIME

  1. Press MODE to select ALARM
  2. Press SET to set alarm time.
  3. Press MODE to set HOURS. Digits will flash.
  4. Press START/SPLIT to advance. Go through 12 hours for AM or PM
  5. Press MODE to select TENS of MINUTES, then START/SPLIT to advance.
  6. Repeat for MINUTES, Time Zone 1 or 2.
  7. Press SET when done.
  8. In ALARM Mode, press START/SPLIT repeatedly to turn ALARM and CHIME modes on or off.

When alarm time is indicated in appropriate time zone, watch will beep for 20 seconds, or until any button is pushed. Alarm mode will be displayed. Alarm repeats every 24 hours until deacti-vated. Alarm can be set for only one time zone.

TIME ZONE

  1. Press MODE to select TIME ZONE 2.
  2. Press and hold SET to set time. HOURS digits will flash.
  3. Press START/SPLIT to advance. Go through 12 hours for AM or PM.
  4. Press MODE to select TENS of MINUTES, then START/SPLIT to advance.
  5. Repeat to set MINUTES, MONTH, DATE, 12- or 24-hour TIME display. Press SET when done

TIDE TIME

  1. Get time of high tide.
  2. Move HIGH TIDE pointer to time on dial
  3. Read time of low tide on opposite pointer.

INDIGLO® NIGHT-LIGHT WITH NIGHT-MODE®

  1. Press INDIGLO to illuminate watch face. Patented (U.S. pat. 4,527,096 and 4,775,964) elec-troluminescent technology used in the INDIGLO® night-light illuminates entire watch face at night and in low light conditions.
  2. Press and hold INDIGLO for three seconds (beep will sound) to activate or de-activate NIGHT-MODE®
  3. While in NIGHT-MODE®, press any button to illuminate watch face for 3 seconds

WATER RESISTANCE

If your watch is water-resistant, meter marking is indicated.

Water-Resistance Depth p.s.i.a.* Water Pressure Below Surface
30m/98ft 60
50m/164ft 86
100m/328ft 160

*pounds per square inch absolute

WARNING: TO MAINTAIN WATER-RESISTANCE, DO NOT PRESS ANY BUTTONS OR PULL OUT THE CROWN UNDER WATER UNLESS YOUR WATCH IS INDICATED AS 200 METER WATER-RESISTANT.

  1. Watch is water-resistant only as long as crystal, crown and case remain intact.
  2. Watch is not a diver watch and should not be used for diving.
  3. Rinse watch with fresh water after exposure to salt water.

BATTERY

Timex strongly recommends that a retailer or jeweler replace battery. If applicable, push reset button when replacing battery. Battery type is indicated on caseback. Battery life estimates are based on certain assumptions regarding usage; battery life may vary depending on actual usage.DO NOT DISPOSE OF BATTERY IN FIRE. DO NOT RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHILDREN.

TIMEX INTERNATIONAL WARRANTY(U.S. – LIMITED WARRANTY – PLEASE SEE FRONT OF INSTRUCTION BOOKLET FOR TERMS OF EXTENDED WARRANTY OFFER)

Your TIMEX watch is warranted against manufacturing defects by Timex Corporation for a period of ONE YEAR from the original purchase date. Timex and its worldwide affiliates will honor this International Warranty.Please note that Timex may, at its option, repair your watch by installing new or thoroughly reconditioned and inspected components or replace it with an identical or similar model. IMPORTANT — PLEASE NOTE THAT THIS WARRANTY DOES NOT COVER DEFECTS OR DAMAGES TO YOUR WATCH:

  1. after the warranty period expires;
  2. if the watch was not originally purchased from an authorized Timex retailer;
  3. from repair services not performed by Timex;
  4. from accidents, tampering or abuse; and
  5. lens or crystal, strap or band, watch case, attachments or battery. Timex may charge you for replacing any of these parts.

THIS WARRANTY AND THE REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WAR-RANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PAR-TICULAR PURPOSE. TIMEX IS NOT LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some countries and states do not allow limitations on implied warranties and do not allow exclusions or limitations on damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from country to country and state to state.To obtain warranty service, please return your watch to Timex, one of its affiliates or the Timex retailer where the watch was purchased, together with a completed original Watch Repair Coupon or, in the U.S. and Canada only, the completed original Watch Repair Coupon or a written statement identifying your name, address, telephone number and date and place of purchase. Please include the following with your watch to cover postage and han-dling (this is not a repair charge): a US$ 7.00 check or money order in the U.S.; a CAN$6.00 cheque or money order in Canada; and a UK£2.50 cheque or money order in the U.K. In other countries, Timex will charge you for postage and handling. NEVER INCLUDE A SPECIAL WATCHBAND OR ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR SHIPMENT.For the U.S., please call 1-800-448-4639 for additional warranty information. For Canada, call 1-800-263-0981. For Brazil, call 0800-168787. For Mexico, call 01-800-01-060-00. For Central America, the Caribbean, Bermuda and the Bahamas, call (501) 370-5775 (U.S.). For Asia, call 852-2815-0091. For the U.K., call 44 208 687 9620. For Portugal, call 351 212 946 017. For France, call 33 3 81 63 42 00. For Germany, call +43 662 88 92130. For the Middle East and Africa, call 971-4-310850. For other areas, please contact your local Timex retailer or Timex distributor for warranty information. In Canada, the U.S. and in certain other locations, participating Timex retailers can provide you with a postage-paid, pre-addressed Watch Repair Mailer for your convenience in obtaining factory service.

www.timex.com573-095002
