Tiny TX Series X8 User Manual

TINY TX SERIES X8

8-CHANNEL 2.4GHZ DIGITAL RADIOUSER MANUAL71025E

Thanks for purchasing TINY TX serirs 2.4GHz digital system, RF solution of this product use Texas Instruments CC2500 and CC2592, wireless protocol is compatible with SFHSS. X8 is a 8- channel easy to use radio for multirotor, X8 radio will help you simplifies the setup , make you focus on fly.

<WHAT IN THE PACKET>

• X8 Radio x1
• 3.7V Lipo battery x1
• RX800-PRO micro receiver x1

<SCHEMATIC>

<SCHEMATIC DESCRIPTION>

<A>: 5 channel downshifting key.

<B>: 5 channel upshifting key.

<C>: 6 channel downshifting key.

<D>: 6 channel upshifting key.

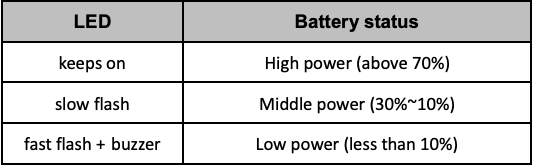

<E>: power indicator: suggest charged battery when middle power

<F>: 5 channel position switch indicator.

<G>: Throttle / Rudder stick.

<H>: Throttle / Rudder trim.

<I>: Power Switch.

<J>: RF indicator.

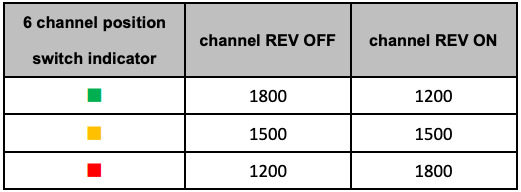

<K>: 6 channel position switch indicator.

<L>: Elevator / Aileron stick.

<M>: Elevator / Aileron trim.

<N>: Charing indicator, the indicator on mean charing.

<O>: Micro USB, can charging the battery or update firmware.

<P>: Battery compartment.

<Q>: Channel REV switch.

SW1（T）：Throttle channel REV switch.

SW2（A）：Aileron channel REV switch.

SW3（E）：Elevator channel REV switch.

SW4（R）：Rudder channel REV switch.

SW5（5）：5 channel REV switch.

SW6（6）：6 channel REV switch.

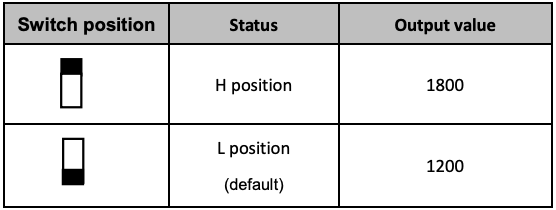

<R>: 7 & 8 channel switch :

SW7（7）：7 channel switch.

SW8（8）：8 channel switch.

<CHANNEL DATA>

X8 radio support 8 channel output, channel sequence and rang as blow

<STICK RE-CALIBRATION>

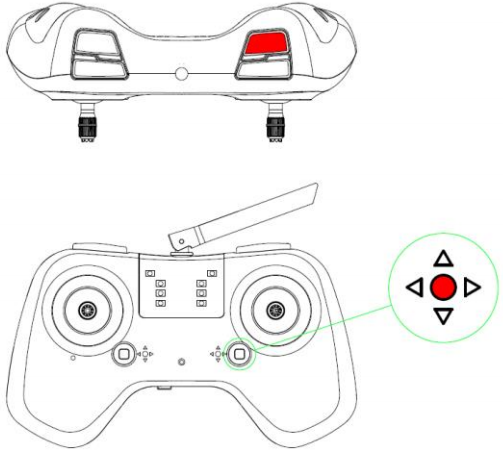

The stick of radio alreay calibration before leave factory, but after long time use maybe result bias, user can re-calibration the stick as follows: make sure the radio power OFF, keep throttle / rudder and elevator / aileron stick all in neutral position, press the red keys as shown below then power on, the radio will into < stick re-calibration > mode.

< stick re-calibration > will first run < neutral CAL.>, the LED indicator and the sound of buzzer will announce the calibration result. You can refer to the table below.

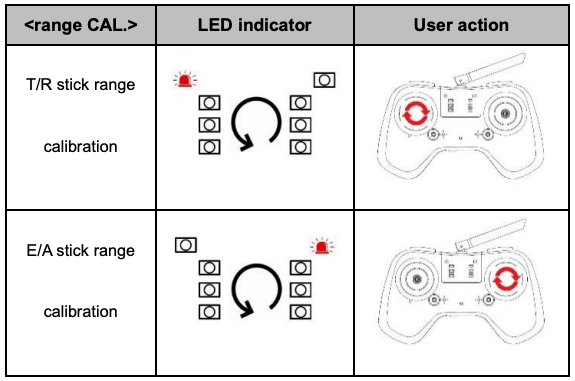

After < neutral CAL.> success, radio will run <range CAL>, please shake stick to maximum rang.

<FIRMWARE UPDATE>

X8 radio support firmware update in WINDOWS 7/8/10, please download PC software (KINGKONG UPDATE TOOLS.EXE), firmware use LDAFWX or LDAFW file extension, all the update flies can download from website： KINGKONG-RC.COM/TX/X8. User MUST defer the following order :

1. DO NOT connect the radio to USB port, open the PC software.

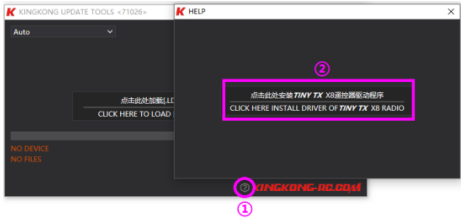

2. Connect the radio to USB port, if this is first time you connect the radui to PC, install the driver of radio as follow.
3. Load the LDAFWX or LDAFW firmware.
4. Make sure radio is power off, press and hold the red key as follow, then power on, the radio will beep 321 and start update firmware.

<SUPPORT OPENSOURCE FIRMWARE>

TINY TX X8 is opensource in Github, we hope more and more people make good FW for us.

WEBSITE：GITHUB.COM/KINGKONG-RC/TINY-TX-X8

SPECIAL REMARKS: ● Please use opensource FW with great caution, untested FW may cause rx unstable or make drone lost of control ● Official FW use .LDAFWX extension, opensource FW use .LDAFW, the PC software will remind you when load the FW
