Tolga 2drw Bedside Instructions

Tolga 2drw Bedside

Safety and Care Advice

Important: Please read these instructions fully before starting assembly.

  • Check you have all the components and tools listed on the following pages.
  • Remove all fittings from the plastic bags and separate them into their groups.
  • Keep children and animals away from the work area, small parts could choke if swallowed.
  • Make sure you have enough space to layout the parts before starting.
  • During assembly do not stand or put weight on the product, this could cause damage.
  • Assemble the item as close to its final position (in the same room) as possible.
  • Assemble on a soft level surface to avoid damaging the unit or your floor.
  • Parts of the assembly will be easier with 2 people
  • To reduce the likelihood of damaging your product please ensure that your power drill is set on a low torque setting.
  • Assembly should be carried out by a competent adult only.
  • Do not use this item if any components are missing or damaged.
  • this item is suitable for children from the age of 6.

Glue safety – Take care when using glue, please follow the advice below

Skin contact: Remove contamination by washing with soap and water. This procedure should also be followed prior to eating and drinking.Eye contact: Rinse immediately with clean water for 15 minutes and seek medical advice.If swallowed: Seek medical advice immediately.

Care and maintenance

  • Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
  • From time to time check that there are no loose screws on this unit.
  • This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Handy Hints

  • Assemble all parts and bolts  loosely during assembly, only once the product is complete should you fully tighten the bolts
  • Regularly check and ensure that all bolts and fittings are tight end properly

Components  Panels

Please check you have all the panels listed below

Components – Fittings

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Tools required

Assembly Instructions

Step-1

Insert large locking nuts C into plinth 6. Make sure the ‘arrow’ on locking nuts C points towards the hole in the edge of 6. Put drop of glue K into the 2 holes of plinth 6. Put dowels G into the holes of plinth 6. Do this step twiceStep-2

Attaching runners a: Fix runner right part A N on right right side 7 as shown usesing 10mm fixing screw drawer E into right side 7Note: look carreful for the right postion. Screw 24mm locking screw A into right side 7.Note: Insert 24mm locking screw A as far as shown.Do not over tighten. b: Insert screw D as shown into right side 7 to fix runner right part A

Step-3

Attaching runners a: Fix runner left part A L on left side 5 as shown use sing 10mm fixing screw drawer E into left side 5.Note: look carreful for the right postion. Screw 24mm locking screw A into left side 5.Note: Insert 24mm locking screw A as far as shown. Do not over tighten. b: Insert screw D as shown into left side 5 to fix runner left part A

Step-4

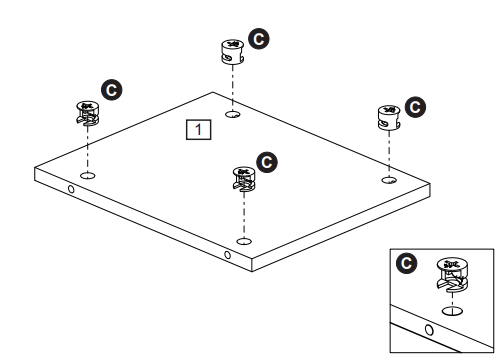

Insert large locking nuts C into top 1. Make sure the ‘arrow’ on locking nuts C points towards the hole in the edge of top.

Step-5

Attaching panelsPut drop of glue K into the 2 holes of left side 5 and right side 7 on the bottom of the sides. Position left side 5 and right side 7 onto plinth 6 and top 1. Use a screwdriver to turn locking nuts clockwise to lock

Step-6

Fitting back panelAttach back 3 to the back with the coloured surface facing the inside using nails F. Use nail holder J to hold the nails F vertical and at correct distance as you secure the back 3. Nails F should be spaced about 150mm apart.Important: Furniture MUST be ‘square’ when back is attached.

Step-7

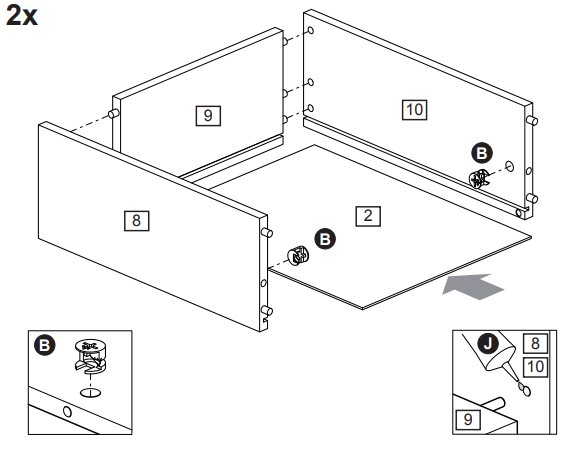

Preparing drawerInsert locking nuts B into left drawer side 8 and right drawer side 0. Make sure the ‘arrow’ on locking nuts B points towards the hole in the edge of 8 and 0. Put drop of glue K into the 3 holes of left drawer side 8 and right drawer side 0. Attach left drawer side 8 and right drawer side 0 onto drawer back 9. Insert drawer backStep-8

Screw 24mm locking screw A into drawer front 4.Note: Insert 24mm locking screw A as far as shown. Do not over tighten.

Step-9

Screw 24mm locking screw A into drawer front @.Note: Insert 24mm locking screw A as far as shown. Do not over tighten.Step-10

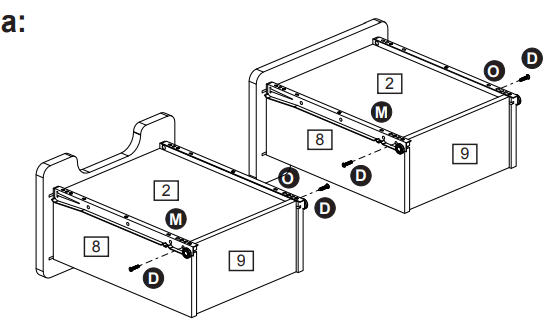

a: Turn over drawer. Fix runner left part B M on left drawer side 8 as shown using 12,5mm pozi screw D. Fix runner right part B O on right drawer side 0 as shown using screw.

b: Fix runner left part B M and runner right part B O using screw D. Slide drawer base support I in corner as shown and fix them, using the attached nail.

Step-11

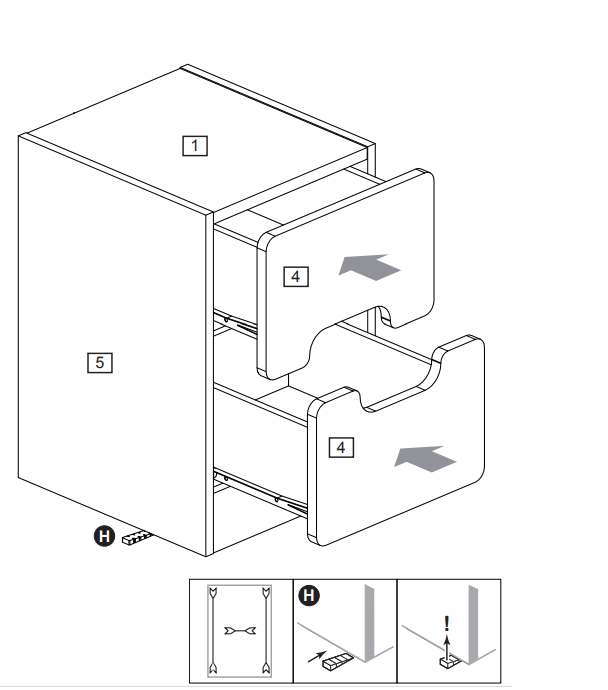

Inserting drawers as shown. For adjusting the drawers see ‘adjustment’ on page ‘drawer adjustment’. Use peg H to square your furniture. Knock peg H in, as far as you require, under the end of the side of the forniture. Then snap off flush with the side.
