Toogel Cordless Hand Blender User Manual

Toogel

Cordless Hand BlenderUser Manual

Model: HS-3350A

Read this manual thoroughly for important safety and operating instructions before using this appliance.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
To protect against risk of electrical shock, do not put motor body of Cordless Hand Blender or cord, or electrical plug or charger in water or other liquid.
This appliance should not be used by children and care should be taken when used near children.
Avoid contact with moving parts.
Do not operate any appliance or charger with a damaged cord, or plug, or after the appliance or charger malfunctions, or is dropped, or damaged in any manner. Return appliance or charger to the nearest Authorized Service Facility for examination, repair, or electrical or mechanical adjustment.
The use of attachments not recommended or sold by us may cause fire,electric shock, or injury.
Do not let power cord on charger hang over edge of table or counter. Excess cord may be wrapped on the underside of the charger.
Do not let power cord on charger contact hot surfaces, including the stove.
When mixing liquids, especially hot liquids, use a tall container, or make small quantities at a time to reduce spillage.
Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons, or damage to the unit.
A scraper may be used, but must be used only when the unit is not running.
Blades are sharp. Handle carefully.
Always remove the battery from the Cordless Hand Blender if it is left unattended and before assembling, disassembling or cleaning.
This product is designed for household use only.
Do not use an extension cord. Plug charger directly into an electrical outlet.
Use only with the suggested charger.
Do not incinerate this appliance even if it is severely damaged.
The batteries can explode in fire.
CAUTION – Do not disassembly parts or accessories from the machine until the machine stop working and the blades stop running.
CAUTION – Read instructions before using.
CAUTION – Handle carefully with sharp blades. Power off the machine before inserting or removing parts from the machine.
Do not put the machine in water.

Save these instructions

Electrical requirements & parameters

Battery: Li-ion 7.4V, 2000mAh
Power : 180W
Charging Input: DC 5V, 1A~2A

Note: This product is not equipped with a charger.

Disposing of Li-Ion battery packs

Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a fire or explosion.

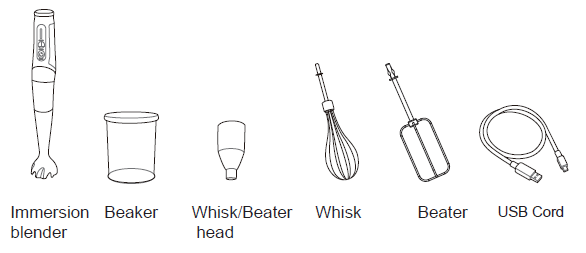

Parts and Features

Version A, package includes

Version B, package includes

Version E, package includes

Operating the cordless hand blender

Check the battery remaining capacity: Press the power on/off button for 2 seconds, the battery indicator will indicates the remaining capacity.

If only one grid light on and blinking, that means the battery needs to be charged.

Insert the attachments and accessories into the main body and twist the unit until it clicks.

Press the power on/off button for 2 seconds then the machine is ready to use.

Check the battery remaining capacity: Press the power on/off button for 2 seconds, the battery indicator will indicates the remaining capacity.

If only one grid light on and blinking, that means the battery needs to be charged.

Remark:

After press the power on/off button for 2 seconds, if no operation on the machine over 10 seconds, the machine will be powered off automatically. If need to use, press the power on/off button for 2 seconds and then press START button.
If the machine is overloaded, it will stop working as the overload protection program is automatically activated.
The battery indicator will be blinking for 10seconds. After it stops blinking, the machine can be used again.
If the machine is seriously overloaded, the machine will stop working but the battery indicator will not blink.
In this situation the battery protection device is activated. To recovery the battery you need to charge the product for a few seconds until the battery indicator is lighted. Then the machine can be used again.

Disassemble the accessories

Make sure the machine is powered off and the blades or accessories are not running, then you can disassemble the accessories.

Speed control

When using the machine, twist the speed controller to adjust the RPM speed. Clockwise to speed up and anticlockwise to slow down.

Adjust the using angle

There are 3 positions for the Twistable Head, Press the Twist Button to adjust the angle to the desired position.

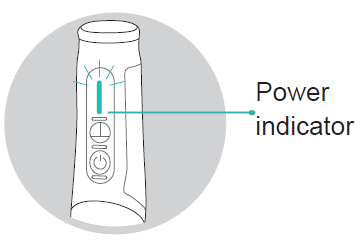

Recharge

There is a USB charging cord equipped with this product. It takes about 4 hours to fully charge the battery from empty capacity.

During the charging process, the battery indicator will be displayed in ” Marquee ” Normally the machine can work for about 1 hour under non-heavy load. status. When the battery is fully charged, the power indicator will be lighted on.

If the battery power is very low during use, the power indicator flashes and it need recharge.Suggest to charge the machine with a mobile phone charger or a USB device with output parameters of DC 5V, 1A~2A.

How to use the blending rod

First, adjust the working Angle of the machine (180 ° or 90 °), pour the food and water into the stirring rod, extend the stirring blades into the beaker, press the power button for 3 seconds, and press the start button to start the operation.

When the machine is working, the mixing speed can be adjusted as needed.

WARNING:

Not allowed to continuously run the machine more than 60 seconds. After each running you need to cool down the motor for around 5-10 minutes before next operation.Continuous long time running could result in short life time to the machine.

How to use the chopper

Insert the chopper blades into the chopper bowl. Add small food items to be chopped to the bowl. Attach the chopper adapter to the chopper bowl. Place the adapter straight down. Do not try to twist the adapter into place.

Align the chopper bowl with the main body and press together then the machine is ready to use.

Keep pressing the START button, the machine will start working. (Stop press, the machine will stop working.)

WARNING:

Not allowed to continuously run the machine more than 30 seconds. After each running you need to cool down the motor for around 5-10 minutes before next operation.
Continuous long time running could result in short life time to the machine.

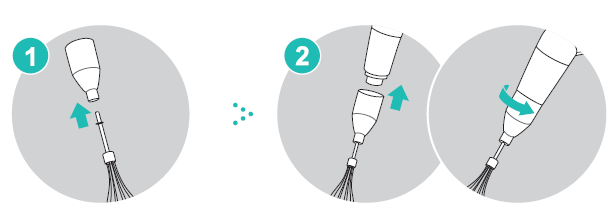

How to use the whisk & beater

Insert the whisk/beater to whisk/beater head.
Insert the whisk/beater head into the motor body and twist to lock until it clicks.

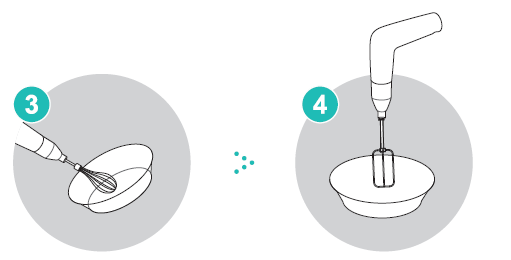

The best working Angle of the whisk/beater is 135 degrees.
While whipping the eggs, hold the bowl up slightly with one hand, The machine works best when it is slant.

WARNING

Not allowed to continuously run the machine more than 15 minutes. After each running you need to cool down the motor for around 5-10 minutes before next operation.
Continuous long time running could result in short life time to the machine.
