TP-solar 30W solar Charger Instruction Manual
Overview
- Thank you for choosing TP-Solar portable solar charger. Please read this instruction manual carefully before use and keep the instruction manual properly for your referring on necessary time.
- Two USB 5V/9V/12V output, support QC 2.0 and 3.0 charging technology, powered by monocrystalline silicon solar panel, TP-Solar portable solar charger is designed to provide emergency power for users to power digital devices like mobile phone, Pad etc. With DC 5V output, the solar charger is easy to use with fashionable appearance and compact structure.
- With another DC 14.5V output, comes with DC cable with cigarette lighter plug and alligator clip. It is suitable for charging 2 Volt batteries such as RV boat car truck trailers or any other vehicles.

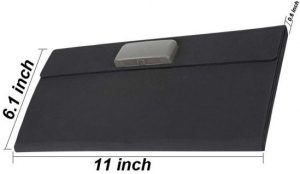

Product Image
Use Direction
The pictures are only for reference, please make the object as the standard.
- Solar panel placement state when charged
Above are just typical operations. With appropriate fittings, it can be stuck on the glass hanged on the tent or similar situation; - When connected by USB output, it can offer emergency power for digital devices like mobile phone PAD etc;
Above are just typical operations. With appropriate fittings, it can be stuck on the glass hanged on the tent or similar situation;
Note: This product can power most mobile phone models on the market. Whereas, certain phone models may not be charged properly due to mobile phone charging circuit design.
Product Parameter
|
Item |
Product Model |
|
|
30W Solar charger |
||
|
Solar panel module |
Solar panel type | Flexible Monocrystalline |
| Pmax | 30W watt | |
|
DC output |
Vmp | 14.5V |
| Imp | 1.8A | |
|
USB output |
Output voltage | DC 5V/9V/12V |
| Max output current | 2A | |
|
Indicator illustration |
light on | Normal solar radiation, charging |
| Light off | No sunshine/insufficient sunshine | |
|
Dimension |
Expanded | L692mm×W280 mm×H3 mm |
| Folded | L155mm×W280 mm×H40 mm | |
| Weight | 0.7 KG | |
| Working temperature | -30 ℃～+50 ℃ | |
| Working moisture | ≤90%（Condensation） |
Notice
- When charging, please ensure solar panel surface facing the sun to get the Vertical sunlight incidence angle, and make sure no other objects block the sunshine;
- Solar panels with thin-film encapsulation should be avoided from the rocks, metal objects striking, and other sharp objects;
- Do not bend the solar panel too much in case it will break off;
- Must keep the panel surface clean while charging, and the panel need to clean up from time to time in order to keep the high efficiency of the solar power;
- Keep solar panels away from fire and the heat;
- Try to prevent it from rain if wet, please make it dry then continue to use;
- When products is not working, should be folded and storage.The product specifications and information mentioned in this manual are for reference only.
The product specifications and information mentioned in this manual are for reference only.[xyz-ips snippet=”download-snippet”]
