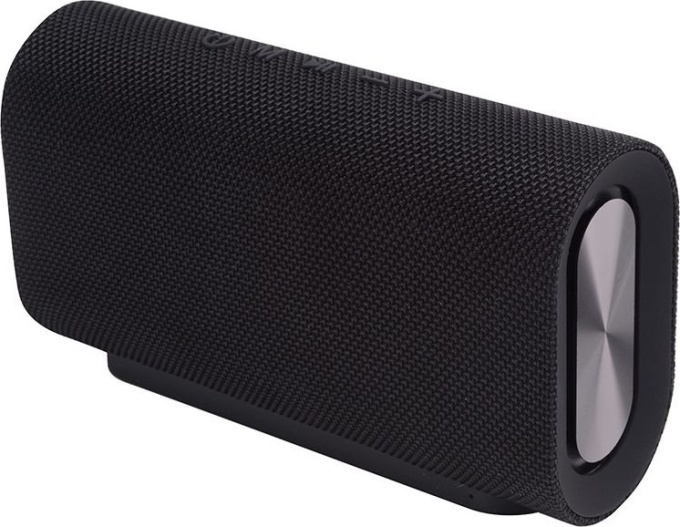

Tracer Rave Mini TWS BT User Manual

Tracer Rave Mini TWS BT User Manual

Introduction

Thank you for using our company’s products , in order to enable you to operate the speaker as easy as possible. Please read this manual carefully before you begin to use it.The Speaker is a fashion portable wireless bluetooth speaker , Support bluetooth 5.0 protocol, support for smartphones, tablets, notebooks that with bluetooth audio equipment , allowing you to completely get rid of a wire harness restraint, freely enjoy music , also supports TF card and U-dsik, and without bluetooth mobile phones, notebook computers, MP3, MP4 and other audio input equipment.

Points for attention

  • Do not hit or crush it seriously.
  • Do not contact benzene, diluent and other chemicals.
  • Do not use near by strong magnetic field or electric field.
  • Avoid direct rays or heating appliances.
  • Do not disassemble, repair or modify.
  • Do not listen at large volume for long periods of time, so as not to injure the hearing.
  • Do not clean the speaker with water and don’t immerse the speaker in the water. when using at low voltage, it may cause distortion of sound and please charge it in time.
  • Bluetooth is compatible with common smart phones and tablets, but depending on the device or application you use, may not be able to support a particular feature.

Buttons information with Interface:

  1. Long press Off/on, short press switch modes to BT/TF card/U-disk and Aux/FM
  2. Short press to pause/ tell ,pause/ play; Long press to cancel or set-up TWS function; Double click last No to redial, short press pause/ play; When incoming call, short press answer/hang up, long press reject
  3. Previous song /volume down; Short press to previous song, long press to down volume
  4. Next song/volume up; Short press to next song, long press to up volume
  5. TF card interface
  6. Dc 5V Charger interface
  7. U-disk interface
  8. Aux

Bluetooth mode

  1. Bluetooth version: Bluetooth 5.0, supports HSP,HFP,A2DP protocol, with English prompt voice, and bluetooth device name TRACER Rave Mini
  2. Press switch button (2 seconds),on or off. After the opening, speaker makes a prompt voice, the blue light flashes quickly, and the speaker goes into bluetooth mode.
  3. The blue light flashes by quick into the matching state and the phone searches for the name of the TRACER Rave Mini device to connect. If you need the password, enter it(0000), when the connection is successful the blue light is always bright and speaker indicate a successful sound. The blue light flashes slowly during the music playing . Once the paired phone turns on bluetooth and then automatically reconnects the speakers.

AUX In mode

  1. Insert AUX In automatically into AUX In mode and the blue light flashing by slow

TF card & U-disk mode

  1. Once speaker has inserted the TF card or U-disk and automatically switched to music mode.

FM mode

FM mode is selected with the Power button (short presses). In FM mode, you can scan stations with the Start / Pause button (short press). To stop scanning, press the Start / Pause button again. The searched stations are stored in memory. After scanning, the selection of a specific station is made with the +/- buttons.

Charging

  1. Plug the USB cable into the speaker connect to the 5V charger or computer to charge the speaker
  2. When charging, the „charging” the blue light flashes quickly, on when it is full the blue light is out.

How to set-up TWS function:

Power on two same speakers at same time. And make sure the two same speakers are in bluetooth mode. Two same speakers will pair bluetooth each other automatically. You will hear indication voice „Dong” around 3 seconds later. It means TWS function set-up successfully. If want to cancel or set-up TWS function again, just keep pressing the Play/Pause button 3 seconds.

Other

  1. The default volume of the speaker is 2/3 of the total volume .To protect battery life and speakers work, so the software Settings when the battery voltage is lower than 3.3 V speakers will automatically detect the concurrent give out sound prompt alarm, when battery voltage is lower than 3.3 V the speaker makes a voice prompt and set up automatic shutdown meantime.
  2. When the speaker standstill, the speaker will power off automatically if not use the speaker 10 minutes. If need play again, needs to power on the speaker again.

Specification parameters:

  1. Bluetooth Version:V5.0
  2. Bluetooth Range: 10 meters
  3. Output power: RMS 5W*1 PCS
  4. Driver Size: 57 mm
  5. Frequency response:100 Hz-20 KHZ
  6. Built-inbattery: 1200mAh/3.7V
  7. Distortion: 1%
  8. Charge time: 2.5-3.5H
  9. Playing time: up to 6 Hours (60% volume Level)
  10. Product size:150*60*100 mm
  11. Function: Hands-free call / U-disk / TF Card / AUX / BLUETOOTH / TWS / radio FM

Package Includes

  • Speaker x 1 pcs
  • 3.5mm Audio Cable x 1pcs
  • Micro USB Charging Cable x1 pcs
  • User Manual x 1 pcs

List of key functions

ButtonsMode: : ON/OFF: – :  +Bluetooth mode:

  1. Short press to pause/ play;
  2. Long press to cancel or set-up TWS function 3.Double click last No to redial, short press pause/ play; When incoming call, short press answer/hang up , long press reject:

Long press to on/ off , short press switch modes (whenswitching mode, needs to be inserted into the audio line or TF/U-disk otherwise it will not be valid).:Short press to previous song, long press to down volume:Short press to next song, long press to up volume.AUX IN: Short press to pause/ play: Short press to switch mode: Long press to down volume: Long press to up volume.TF card: Short press to pause/ play: Short press to switch mode: Short press to previous song, long press to down volume: Short press to next song, long press to up volume.U-disk: Short press to pause/ play: Short press to switch mode: Short press to previous song, long press to down volume: Short press to next song, long press to up volumeFM: Press briefly to scan stations.: Press briefly again to stop scanning: Short press to switch mode: Press briefly to switch stations.: Press briefly to switch stations.

Symbol of electronic and electrical equipment waste (WEEE – Waste Electronic and Electrical Equipment).Using the WEEE symbol means that this product cannot be treated as household waste. By providing appropriate recycling you help to save the natural environment.In order to get more detailed information about the recycling of this product, contact the local authority representative, waste treatment service provider or the store in which the product has been purchased.
