Trackers TBT100 Livestock GNSS Tracker User Manual
Introduction
Overview
TBT100 is an loT terminal to track and monitor livestock. It is small, light, and easy to attach to the neck of your livestock via the collar. This cattle tracking collar is supported by GPS & BDS. By combining with a built—in motion sensor, it can satisfy the monitoring and management needs of farmers.

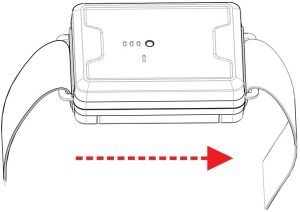

Appearance
Functions
| Communication | GSM: 850/900/1800/1900MHz |
| Positioning | GPS and BDS |
| Stationary alert | The device will send out alerts if animals do not move for too long. |
| Left-the-herd alert | The device will send out alerts if individual animals stray away from the herd. |
| Activity monitoring | The device will upload the activity data of the livestock to the platform in preset intervals. |
| Install notification | A notification will be sent to the platform the first time the device is installed. |
| Query and setting | The device allows users to query and configure its status and parameters via the platform or SMS. |
| Low battery alert | The device will send an alert to the platform if it detects that the battery of the device is lower than a preset threshold. |
| Firmware upgrade | When a firmware update is detected, the device will download the update package and perform the upgrade accordingly (OTA). |
Specifications
| BDS/GPS | Tracking sensitivity | —l65dBm |
| Acquisition sensitivity | —148dBm | |
| Number of channels | 66 | |
| TIFF | c 32s (cold) / 2s (hot) | |
| Positioning accuracy | <10m (2DRMS) | |
| GSM | Sensitivity | < —106dBm |
| Phase error | RMSPE: <5° PPE: < 20° | |
| Max. output power | GSM850/GSM900: 33 t 2dBm; DCS1800/PCS1900: 30 t 3dBm | |
| Max. frequency error | ±0.1ppm | |
| Standbytime | Up to 5 years in power—saving mode (8100mAh/3.7V Indust ial—grade Li—polymer battery) | |
| Collarlength | 70-130cm (adjustable) | |
| Devicedimensions | 88 mm x 64mm x 26mm | |
| Weight | 190g (excluding collar) | |
| Operatingenvironment | Temperature | —30°C to 70°C |
| Humidity | 5%-95% (non—condensing) | |
| IP rating | IP67 |
Connotations of Indicators
| Status | Connotation |
| Red (Power) | |
| 0.1s-3s (On-Off) | The battery is low. |
| Off | The device is faulty. |
| Green (GSM) | |
| 0.3s-0.3s (On-Off) | GSM initializing |
| 1s-3s (On-Off) | GSM working correctly |
| 0.1s-3s (On-Off) | Device online |
| Off | No GSM signal or SIM card/ Device in low power mode |
| Blue (GNSS) | |
| 0.3s-0.3s (On-Off) | Searching for GPS+BDS signals |
| 0.1s-3s (On-Off) | Position fixed |
| Off | Device in low power mode or not operating |
| Searching for specific devices | |
| The red, green, and blue lights blink (on for 0.5s and off for 0.5s) in turn to remind the user. |
Activation and Binding
- Use a tool to press the activation key for 2 times in 2s to activate the device. The device will beep once during activation to signal that it is ready to work.
- Log in to the service platform designated by your dealer to control the device and track your livestock. Download the mobile app from the URL provided by your dealer, APP Store (i0S), or Google Play and install the app. Use the app to scan the QR code on your device to bind it. After the binding, you can view data uploaded by the device via the app.
Installation
- Adjust the cattle collar for the device to a length that is suitable for your livestock and thread one end of the collar through the mounting holes at both sides of the device.
- Attach the tracking collar to the neck of your livestock and thread the one end through the adjuster. Adjust the tracking collar to a proper length and lock it dead.
Warranty Instructions and Services
Disclaimer:
- No prior notice will be given if the product is upgraded due to technological reasons.
- The appearance or color of the product is subject to the actual.
- The warranty card applies to the services of repair, replacement, and refund of the product with the IMEI No. specified in the warranty card.
- Please keep this warranty card and the original purchase receipt together in a safe place, as these will be needed at time of services.
Warranty Terms:For damages not caused by human factors, this warranty lasts for one year starting from the date of purchase. You can choose to pay for the repair services in any of the following cases:
- The warranty card expires;
- No warranty card or valid purchase receipt is provided;
- The product, including its accessories, is not in warranty period;
- Quality issues arise from unauthorized repairs, crash, liquid spillage, accidents, modifications, or incorrect voltage input; or the label, IM El, or counterfeit mark of the product is broken or scribbled;
- Damages caused by installation or use not in accordance with the user manual;
- Damages resulted from soaking in liquid are not in the warranty scope;
- The model in the warranty document is inconsistent with that of the actual product or the warranty document is scribbled;
- Damages caused by force majeure such as fire, flood, and lightning strikes.
Maintenance Record
| Date | Serviced by |
| Product Model | |
| IEMI Number | |
| Fault Description | |
| Comments |
