TRAILER VALET Blackout Series Drop Hitch
Operating Instructions
STEP 1: Place the Drop Hitch at the desired drop on the drawbar in order to ensure that your vehicle and trailer are properly positioned.

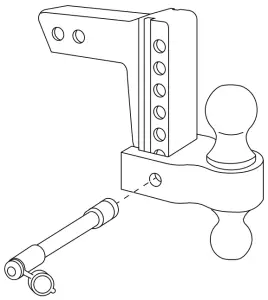

STEP 2: Insert the keylock pin into the Drop Hitch when you have achieved the desired position along the drawbar.
STEP 3: To lock the keylock pin in place, turn key counter clockwise. To unlock, turn key clockwise.

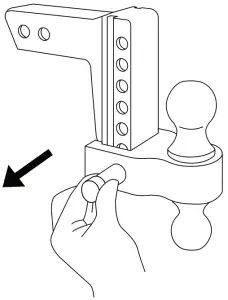

STEP 4: Pull keylock pin to ensure that it has been engaged. Do not operate without making sure keylock assemble is securely locked in place.
Important safety information
Ensure safety chains are attached between vehicle and trailer. DO NOT attach chains directly to hitch. Do not exceed either the Tow vehicle’s rated load or your Trailer Valet Drop Hitch capacity rating. Secure your Trailer Valet Drop Hitch to receiver with keylock or hitch pin.
Ball Mounts & Drop Hitches
SKU | BSDH00 10 | BSDH00 11 | BSDH00 20 | BSDH00 40 |
Ball Size | 2” | 2” | 2” and 2-5/16” | |
Drop | 2” | 4” | 2” | 0-6” |
Rise | N/A | N/A | 2” | 5-1/4” |
Type | Standard | Standard | Reversible | Adjustable |
Capacity | 5,000 LBS | 6,000 LBS | 6,000/7,500 LBS | 14,000 LBS |
Material | Steel | Steel | Steel | Steel |
Class | Class III | Class III | Class III | Class V |
SKU | BSDH00 30 | BSDH00 31 | BSDH00 32 | BSDH00 33 |
Ball Size | 2” and 2-5/16” | 2” and 2-5/16” | 2” and 2-5/16” | 2” and 2-5/16” |
Drop | 0-4” | 0-6” | 0-8” | 0-10” |
Rise | 0-4” | 0-6” | 0-8” | 0-10” |
Type | Adjustable | Adjustable | Adjustable | Adjustable |
Capacity | 8,000/10,000 LBS | 8,000/10,000 LBS | 8,000/10,000 LBS | 8,000/10,000 LBS |
Material | aluminum | aluminum | aluminum | aluminum |
Class | Class IV | Class IV | Class IV | Class IV |
