TrickleStar TS1814 4 Outlet AV Advanced PowerTap+ User Manual

MODEL TS1814

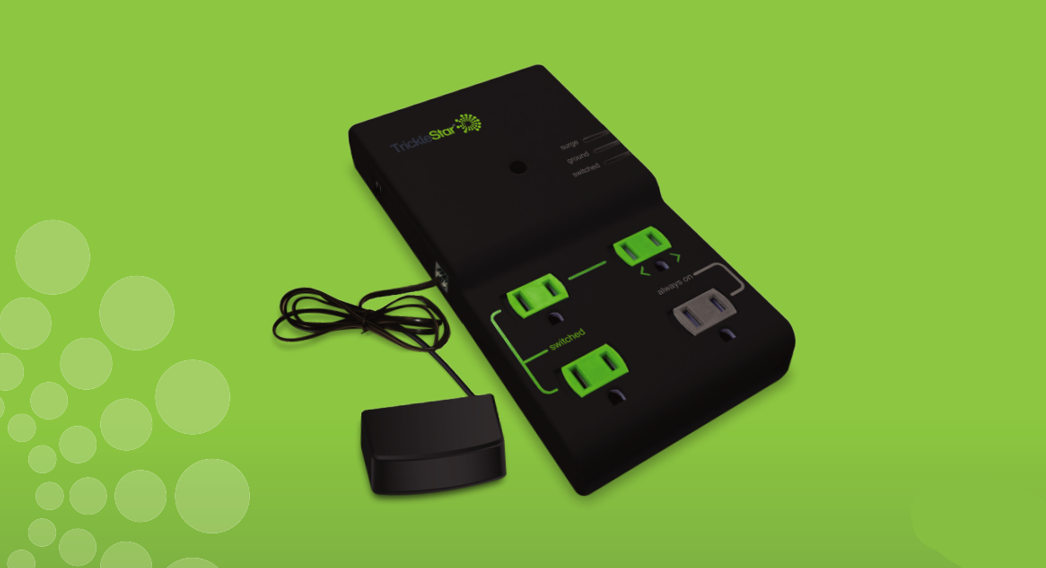

AV ADVANCED POWERTAP +Premium-quality surge protection that reduces active and standby energy wasted by home entertainment center electronics

OVERVIEW

The AV Advanced PowerTap+ reduces active and standby power loss in audiovisual (AV) home entertainment centers by detecting when the TV and AV peripheral electronics are not being used and turning them off. The AV Advanced PowerTap+ features a highly-accurate sensor that detects infrared (IR) remote control activity and motion to determine whether the TV is being used. If no IR remote control activity or motion is detected within the countdown timer period, the power tap automatically powers down the TV and peripheral AV electronics plugged into the switched outlets.

KEY FEATURES

4 outlets:

  • 1 always-on outlet (1 transformer-spaced outlet)
  • 3 switched outlets (1 transformer-spaced outlet)
  • 2 in 1 power & circuit breaker
  • 1,080 Joules of  urge protection at 500 VPR
  • Ceramic-encased, fireproof surge protection
  • Consumes <1 Watt at  all times
  • Power switching electromechanical relays rated for 100,000 switching cycles at a full 15  amp load
  • Software and hardware filtering technology filters out IR  interference from non-AV equipment
  • LED status indication (ground, surge status, switched)
  • <40 dB noise filtering
  • Low-profile, wall-mount design
  • Includes a receptacle wall-mounting screw for more permanent  applications
  • Supports high-level Consumer Electronic Control (CEC)  commands via optional  TAV-Link™ cable (sold separately) that connects from the Multi-sensor to an HDMI port on  the TV

FIREPROOF SURGE PROTECTION

Traditional surge suppression products use standard Metal Oxide Varistor (MOV) components.  rickleStar’s AV Advanced PowerTap+ incorporates advanced surge protection technology with ceramic-encased MOVs capable of suppressing more energy and dissipating heat faster than traditional MOVs.

Ceramic-encased MOVs have better thermal properties and have a lifespan up to three times longer than standard MOVs. The ceramic casing is fireproof and therefore capable of preventing fire during abnormal surge conditions.

TAV-LINK™ MULTI-SENSOR

The TAV-Link Multi-sensor detects IR remote control signals and motion. It features an intelligent algorithm that first considers IR remote signals and then looks for both IR remote signals and motion if no IR commands are detected. Additional features include:

  • LED notification that flashes when IR activity or motion is detected
  • Continuous dual-color (red/blue) flashing LED alert notification that activates ten minutes  prior to shutdown
  • Optional soft-chirping piezo buzzer that alerts the user of a pending shutdown ten minutes and  three minutes prior to shutdown
  • Manual on/off button
  • Supports high-level CEC commands via optional TAV-Link cable that allow “smart” TVs to  safely store their data and settings prior to powering down
  • TAV-Link functionality that allows gaming consoles to enter an energy-saving mode earlier and  without any corruption of data

AV ADVANCED POWERTAP+

FOR INDOOR USE

VoltagePower RatingSurge ProtectionNoise FilteringStandby Power ConsumptionVoltage Protection Rating 120 VAC +/- 10%, 60 Hz15 A72,000 Amps/1,080 Joules<40 dB<1 Watt500 Volts L-N500 Volts L-G500 Volts N-G

PHYSICAL SPECIFICATIONS

Operating TemperatureStorage TemperatureHumidityIP Rating 32° to 113° F14° to 140° F5 to 90% N/CIP20

SENSOR ELECTRICAL SPECIFICATIONS

VoltageIR Detection RangeIR Detection AngleCord LengthMovement Detection RangeMovement Detection Angle 3.3 VUp to 16.4 ft.60°8 ft.Up to 16.4 ft.90°

FEATURE DIAGRAMPRODUCT WARRANTY

This product is backed by TrickleStar’s Lifetime Product and Connected Equipment Warranties:

  • 10- year Lifetime Product Warranty
  • $20,000 Connected Equipment Warranty

APPROVALSRelocatable Power Taps, UL 1363The standard for Surge Protective Devices, UL 1449Cord Reels and Multi-Outlet Assemblies, CSA C22.2 No. 308-18Surge protection devices – type 3 – Cord connected, direct plug-in and receptacle type, CSA C22.2 No. 269.3-17

ORDER INFORMATION

TS18144-outlet AV Advanced PowerTap+TAV-Link Multi-Sensor

Patents Pending & Patents9,665,073 B27,193,335 B2

Copyright © TrickleStar. All rights reserved. TrickleStar ® is a registered trademark of TrickleStar, Ltd. All other trademarks are the property of their respective owners. The information in this document is subject to change without notice. TrickleStar assumes no responsibility for any errors that may appear in this document.

REV 6: 7 Dec 2017
