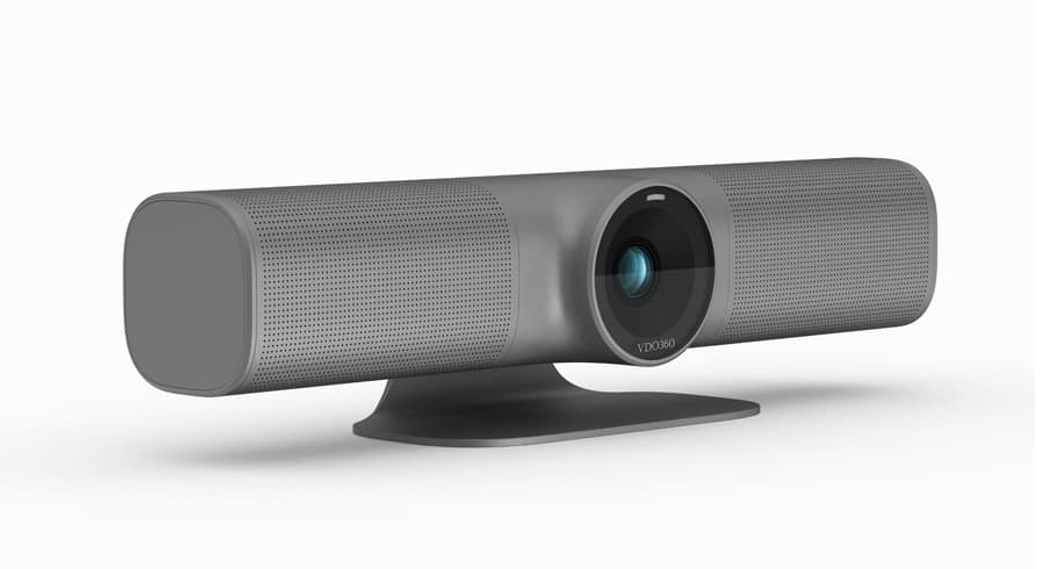

Trident AI (V2.0) User Manual

TrIdent AI(V2.0)J.BC.0205.0150

QUICK STARTTrident Features:

  • Advanced DSP, Sony 1/2.8 inch 8.42-megapixel sensor and high-quality 12-megapixel lens, Ultra high definition output,
  •  USB2.0 YUY2/NV12/MJPG/H.264/H.265 video format works with Windows, macOS, Android, Linux OS.
  • Type-C port output.
  • 120°FOV
  • Lens distortion rate less than 2%
  • Support WDR, 3DNR, Anti-flicker

Trident User Manual Reference• Standard UVC protocol, compatible with most UCC platforms• The low noise CMOS enables an ultra-high signal-to-noise ratio in the camera’s video output and allows for a clear and sharp image.• Autoframe participants dynamically as they enter or exit the camera frame or change positions; Autoframing is selectable via remote, or desktop control.• Backlight compensation to compensate for bright light sources, eliminating unnatural shadows and “light blooming”.• Preset camera positions available when using manual mode.• High Definition Audio with 16K pickup and 24K playback makes for a crystal clear connection. Utilizing the latest techniques in spatial audio mapping and sampling, the background noise is eliminated even in a noisy environment, it can make the voice sound clear. With 360° Omni-directional microphones, range is up to 5 meters.Full Duplex capability.384ms Acoustic Echo Cancelation (AEC)Automatic Noise Suppression (ANS)Automatic Gain Control (AGC)The peak-limiting algorithm eliminates even momentary distortion.

PRODUCT SPEC

Model Trident
Sensor 1/2.8 inch, high quality, 8.42-megapixel SONYCMOS sensor
VideoFormat USB2.0 YUY2, NV12:1280*;1024*;640*

Trident User Manual Reference

MJPG:3840’; 2560*; 1920–; 1280*; 1024`; 640*
11.264, H.265:3840’; 2560*; 1920`; 1280*; 1024`576©30; 640*
RJ45 Only for power (POE)
Digital Zoom 4X
Field of View 120°
Sensor Resolution 8.42 megapixel
Control Port USB2.0 (UVC/UAC)
Video Port Type-C (USB2.0)
SM Ratio >50dB
Focal Length f=2.20mm
Minimum Lux. 0.1 lux
White Balance Auto/Manual
Iris F 2.2
Anti-Flicker 50HZ/60HZ/OFF
WDR Supported
Edge Enhancement Supported
Digital Noise Reduction 2D&3D
Image Rip Supported
Electronic Pan/Tilt Supported
Auto frame Supported
Backlight Compensation Supported
Ideal Microphone range 3-5 meters
USB Audio Supported
Microphone Omnidirectional microphone(100-16KHz)
Sensitivity -26±2dB RL=2.2K0 Vs=2.0V
Input Voltage DC port
Speaker 40/8W 100-24KHz 2inch Anti-magnetic speaker

Trident User Manual Reference

POE  Supports IEEE802.3af
Dimension (L × W × H) 395mm×113mm×112mm/15.5”x4.5”x4.4”
Net Weight  1 kg/2.2 lbs.

1. Speaker2. Camera lens3. Status indicator light4. Multi-array microphone5. DC12V power interface6. RJ45 interface (POE) 7. Type-C (USB2.0) interface8. Dip switch for firmware upgrades9. Adjustable spindle10. Rotatable bracket11. Kensington® type slot

Trident User Manual Reference

INSTALLATION MODES:



Trident User Manual Reference

REMOTE CONTROL:LED indicator:The remote control is unique in that a single control can operate up to three cameras.Camera 1 operation is standard, and the LED will flash red when the commands are being sent to camera 1Camera 2 operation is indicated by a green LEDCamera 3 operation shows as a blue LED

CAM1/CAM2/CAM3: A quick press of the colored key is all that is needed to select the camera.

Zoom adjustment key: +/- Adjusts the electronic zoom, only available when manual control is selected over automatic framing.Power key: Standby/start camera.BLC: Set backlight compensation ON or OFF.Navigation key: up, down, left and right In manual control mode, use to adjust the position of electronic pan or tilt. Also used to navigate the on-screen menu.

Confirm/Home key:  In manual control mode, a quick press will return the image to the home position. When using the menu, it is used to confirm the menu options.
Menu key: In manual control mode, a quick press to enter/exit the menu.
Volume control key:
A quick press will incrementally increase or decrease the volume output of the
Trident. Note- volume control of the PC or device connected is not influenced by this selection.
Video Mute/Micro Mute:
  Video Mute and micro mute.
A/M: Auto frame/Manual frame.
PUSH Frame:
   In Auto frame off mode, you can manually trigger the Auto frame once.
Preset key:
Long press for 3 seconds to save the current position to the corresponding preset position, shortly press to call the preset position, only available when Auto frame is closed.
Trident User Manual Reference

Mirror/Flip: Used to change mage orientation.Reset: Press and hold for 3 seconds to reset the camera parameters to the factory settings.

Digital key mapping:As shown in the figure on the right, in non-menu mode, this part of the keypad is used for the function identified on the key; while in menu mode, this part of the keypad is used as numeric keys.

On-Screen Display (OSD) menu

  1. In normal mode, press the menu button on the RF remote, to enter the OSD menu; press the menu button again to exit and save modified parameters.
  2. Use the navigation button to select the main menu. As seen above, the main menu will change to a gray background, and the right column will show all parameters under the selected sub-menu.
  3. After entering the main menu, press the up/down navigation buttons to select the desired submenu, then use the left/right navigation button to set the parameter.
  4. To return to the upper-level menu, select the “return” and then press the left or right navigation button to return to the previous menu.
  5. Press the OSD button once again. to exit the menu.Trident User Manual Reference
  6. OSD Menu Layout:
SYSTEM LANGUAGE ENGLISH/CHINESE
PROTOCOL Optional item: VISCA Default: VISCA
ADDRESS VISCA:1-7 Default: 1
BAUDRATE 2400.4800.9600.115200 optional Default: 9600
RETURN Back to the main menu
EXPOSURE EXP.MODE AUTO/MANU Default: AUTO
SHUTTER Shutter speed:1/30-1/10000, only valid under MANU mode Default: 1/100
GAIN Gain setting:0-15, only valid under MANU mode Default: 0
FLICK OFF/50HZ/60HZ Default: 50HZ
BACKLIGHT ON/OFF Default: OFF
GAMMA 0-15 Default: 8
RETURN Back to the main menu
IMAGE WS MODE Al ITO/MANti Default. AUTO
B GAIN Blue again Ievel:0-256. only valid under Default: 100
R GAIN Red qain leve1:0-256. only valid under Default: 100
DEFOG Set the image Permeability: OFF/1-15 Default: OFF
RETURN Back to the main menu
QUALITY 2D NR Set 2D noise reduction level: ON/OFF Default: OFF
3D NR Set 3D noise reduction Default: AUTO
SHARPNESS Sharpness setting:0-15 Default: 8
CONTRAST Contrast setting:0-15 Default: 8
SATURATION Saturation setting:0-15 Default: 8
BRIGHT Bright setting:0-15 Default: B
RETURN Back to the main menu
CTRL MIRROR Turn the screen left and right ON/OFF Default: OFF
FLIP Picture up and down ON/OFF Default: OFF
AUTO FRAME AUTO/MANU Default: AUTO
RETURN Back to the main menu
RESET CAM RESET             Reset camera parameter to default
RETURN                   Back to the main menu
INFO CTRL VER Camera movement control program version
CTRL DATE Release date of camera movement control program
RETURN Back to the main menu

Trident User Manual Reference
