Trinity Pro Ecostorage Bamboo Top Kitchen Cart Owner’s Manual
Model # TBFZ-1412 / TBFPRA-1412
PARTS LIST
Your TRINITY Pro EcoStorage® Bamboo Top Kitchen Cart should include the following parts. Please inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online at www.trinityii.com (Help & More, Contact Us).
ASSEMBLY INSTRUCTIONS
STEP 1

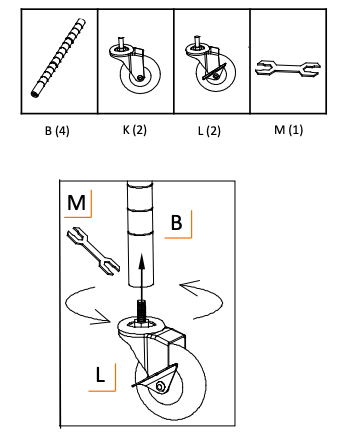

Screw each CASTER (K & L) into threaded insert of each BOTTOM POLE (B). Turn clockwise to screw in place. Make sure LOCKING CASTERS (L) are on same side of Kitchen Cart.
Use provided caster WRENCH (M) to tighten completely. Failure to do as instructed could result in caster stem breaking.
STEP 2
On BOTTOM POLE (B), place one pair of SLIP SLEEVES (N) at desired height no higher than 3rd indentation from bottom. Make sure arrow faces up and word “TOP” is right-side up. Do this for each BOTTOM POLE (B). Make sure SLIP SLEEVES (N) height is identical for each BOTTOM POLE (B).
Note that each POLE (A & B) has slight horizontal line indentations at 1” intervals. Each SLIP SLEEVE (N) has raised horizontal lines inside designed to lock in place on POLE (A & B).
Slide pair of SLIP SLEEVES (N) until you hear a click to confirm they are locked onto BOTTOM POLE (B). Do NOT place more than one pair on each POLE (A & B) at a time.
Note: There will be a very small gap in-between two locked SLIP SLEEVES (N)—this is normal.
STEP 3
Place SHELF (E) on its side and slide each BOTTOM POLE (B) through each corner cylinder of SHELF (E). Make sure corner cylinders are positioned over SLIP SLEEVES (N).
Slowly stand unit upright.
Note:
- Level side of SHELF (E) is TOP side (TRINITY logo on corner cylinders should be right-side up).
- Use a rubber mallet, if needed, to secure SHELF (E).
STEP 4
Screw TOP POLES (A) into BOTTOM POLES (B).
Note:
- Pole Connectors are pre-installed in bottom of TOP POLES (A).
- The top of TOP POLE (A) is indicated by a BLACK END CAP.
STEP 5
Repeat STEP 2 & 3 to attach BASKET (F).
Note:Use a rubber mallet, if needed, to secure BASKET (F).
STEP 6
Attach one pair of SLIP SLEEVES (N) to poles on shorter side of Kitchen Cart as below image shows. Make sure SLIP SLEEVES (N) position is at 6th indentation (or below) from pole top to leave enough pole length for other parts.
Slide SIDEBAR (H) unto poles, make sure corner cylinders are positioned over SLIP SLEEVES (N).
Note:Use a rubber mallet, if needed, to secure SIDEBAR (H).
STEP 7
Attach one pair of SLIP SLEEVES (N) to each pole at 2nd indentation below double line. Slide pair of SLIP SLEEVES (N) until you hear a click to confirm they are locked onto TOP POLE (A).
Facing side of Kitchen Cart with SIDEBAR (H) attached, slide LEFT ARM (I) unto pole on left side and RIGHT ARM (J) unto pole on right side. Properly positioned, support wires should be on INSIDE of poles facing each other. Make sure each collar cylinder is positioned over SLIP SLEEVES (N).
Move to other side of Kitchen Cart and repeat step to install other pair of LEFT ARM (I) and RIGHT ARM (J).
Note:
- LEFT ARM (I) has an “L” sticker on it and RIGHT ARM (J) has an “R” sticker on it.
- Make sure tops of each pair of support arms are level so BAMBOO SIDE BOARD (D) will lay flat when installed. Use a rubber mallet, if needed, to secure LEFT ARM (I) and RIGHT ARM (J) and make them level.
STEP 8
Attach one pair of SLIP SLEEVES (N) to each pole at 1st indentation from top. Slide pair of SLIP SLEEVES (N) until you hear a click to confirm they are locked onto TOP POLE (A).
Place LIP UP SHELF (G) onto poles with corner cylinders positioned over SLIP SLEEVES (N).
Note:Use a rubber mallet, if needed, to secure LIP UP SHELF (G).
STEP 9
Place BAMBOO CUTTING BOARD (C) on LIP UP SHELF (G), make sure SHELF corners are inside cutout area of BAMBOO CUTTING BOARD (C).
STEP 10

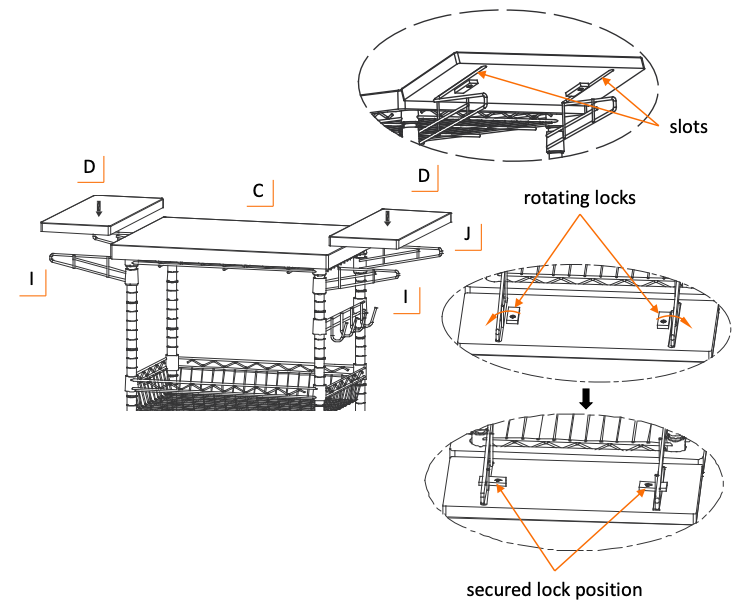

Take one BAMBOO SIDE BOARD (D), check to make sure rotating locks are parallel to slots on bottom of BAMBOO SIDE BOARD (D). Place BAMBOO SIDE BOARD (D) on a pair of LEFT ARM (I) and RIGHT ARM (J). Push BAMBOO SIDE BOARD (D) against BAMBOO CUTTING BOARD (C) to line them up. Move each support arm to make sure they are sitting inside slots.
Turn rotating locks 90 degrees across slots and wires of LEFT ARM (I) and RIGHT ARM (J) to secure BAMBOO SIDE BOARD (D).
Repeat step with other BAMBOO SIDE BOARD (D).
USAGE INSTRUCTIONS
Storing Bamboo Side Boards
- Remove BAMBOO CUTTING BOARD (C).
- Unlock BAMBOO SIDE BOARD (D) by turning rotating locks so they are parallel to slots.
- Remove BAMBOO SIDE BOARDS (D) and place them inside LIP UP SHELF (G) side by side.
- Rotate LEFT ARM (I) AND RIGHT ARM (J) toward long edge of LIP UP SHELF (G) until they rest against shelf.
- Put BAMBOO CUTTING BOARD (C) back onto LIP UP SHELF (G) over BAMBOO SIDE BOARDS (D), make sure SHELF corners are inside cutout area of BAMBOO CUTTING BOARD (C).

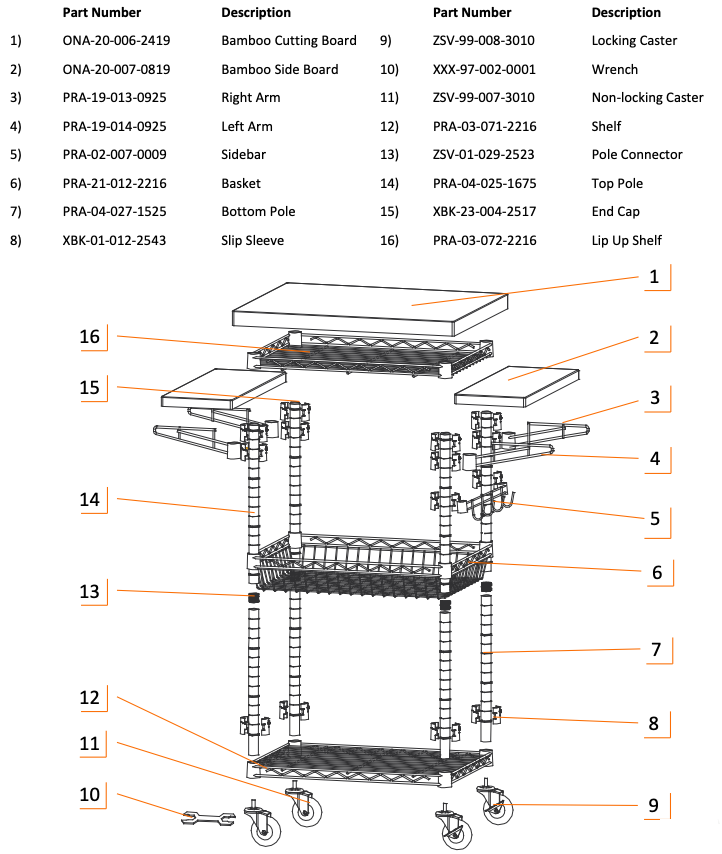

SERVICE PARTS LIST – TBFZ-1412 (Chrome Color)
TRINITY Customer Service provides the following replacement parts:
SERVICE PARTS LIST – TBFPRA-1412 (Bronze Anthracite Color)
TRINITY Customer Service provides the following replacement parts:

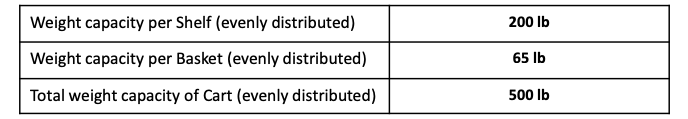

WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage.
2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed could result in the caster stem breaking thereby causing the cart to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the function and/or safety of the product, and may affect the life of the product. Any modifications will void product warranty.
5. Check for damaged parts. Before using this product, carefully check that all parts are in good condition, and that the product will operate properly and perform its intended function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.
6. Do NOT overload the product.
7. Do NOT allow children to climb or play around the product. Tipping may occur causing injury.
8. Do not stand or lean on the product or use any part of this product as a step ladder. Tipping may occur causing injury.
9. Always lock bamboo side boards when mounting them on support arms. Failure to do as instructed could result in bamboo side boards falling causing injury.
10. Do not use bamboo side boards as cutting surface.
11. Only use the product on an even and stable surface.
12. Make sure that the wheels are LOCKED when using the bamboo cutting board as a cutting or work surface.
13. Do not leave knifes or sharp objects on the bamboo boards unattended.
CARE AND MAINTENANCE
- Avoid harsh, abrasive cleaners, and other corrosive chemicals.
- Bamboo board should be hand washed only and periodically treated with food safe oil.
- Store away bamboo side boards and support arms when not in use.
- Keep casters locked when kitchen cart is stored.
- This product is designed for indoor use only.
CONTACT US
QUESTIONS? NEED PARTS?WE ARE HERE TO HELP!
Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service.
TRINITY Customer ServiceTEL: 800.985.5506FAX: 310.347.4134EMAIL: [email protected]
Monday through Friday5:00 AM – 5:00 PM (PST)
