Marquardt Comfort Setup Manual

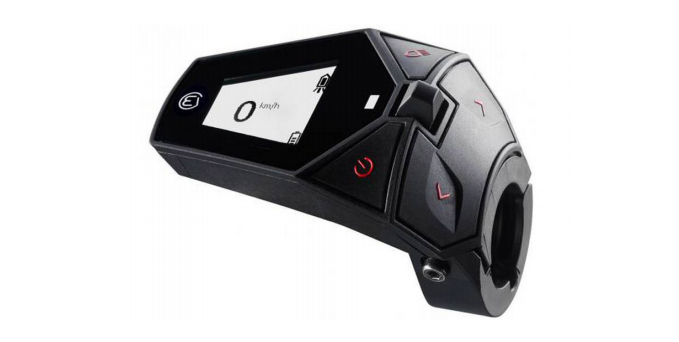

MID DRIVE SYSTEM

ENGLISH V 1.0

hello new user let’s ride

Congratulations on your new bicycle! Proper assembling and operation of your bicycle is important for your safety and enjoyment. Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike. Enjoy the ride!

our contacts

phone: +45 36 70 00 70email: [email protected]website: www.triobike.comsocial medias: youtube | facebook

SETTING THE POSITION

move the joystick to the right 5 times.
move the joystick to the bottom 3 times.
to select “mount position”, push the joystick.

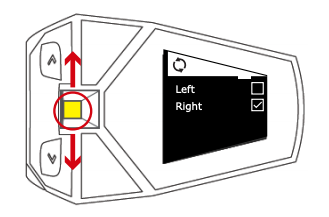

select the actual display position on the handlebar and push the joystick.

SETTING THE LANGUAGE

move the joystick to the right 5 times.
move the joystick to the bottom 2 times.
to select “Language” (in German, “Sprache”), press the joystick down.
select the language moving the joystick up/down and then pressing it.

AUTOMATIC LIGHTS

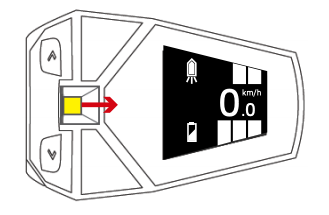

move the joystick to the right 5 times.

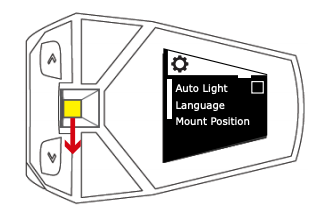

move the joystick to the bottom 1 time.
highlight “Auto Light”.
to activate “Auto Light”, press the joystick down. Now the lights will turn on automatically when the environmental brightness is low. Whenever the brightness goes up, the lights will turn off after 30 seconds.

PUSHING AID

The pushing aid is available for starting riding or for pushing the bicycle. The pushing aid can be activated up to a speed of 6 km/h. Use the pushing aid when pushing the bicycle, when starting riding, or for supported start-up on mountainous terrain. Push the bicycle, walking beside it. Use the pushing aid as a start-up aid when you are sitting on the bicycle. In both cases, the pushing aid will move the pedelec when activated.

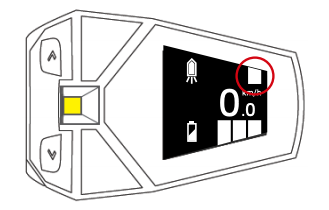

to work, the Push Aid function requires at least leve 1 of assistance. It doesn’t work when the assistance level is set to 0 or, obviously, when the system is off.

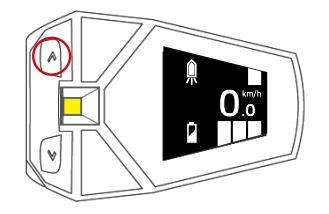

to activate the push aid, press the “^” button for 2 seconds. The bike will start moving autonomously. Keep your finger on the “^” button to keep the bike moving.IMPORTANT: The pushing aid will move the pedelec. Hold the handlebar grip and be ready to brake.Sit on the bicycle and do not press the pedals. Your pushing force, combined with the pushing aid, could accelerate the pedelec very quickly. The second pedal will also move, and can injure you when getting on the bike! Do not use the pushing aid for slow riding.
to deactivate the push aid, just release your finger from the “^” button.
