ULINE 66 X 72″ Steel L-Desk Instructions

Table of Contents

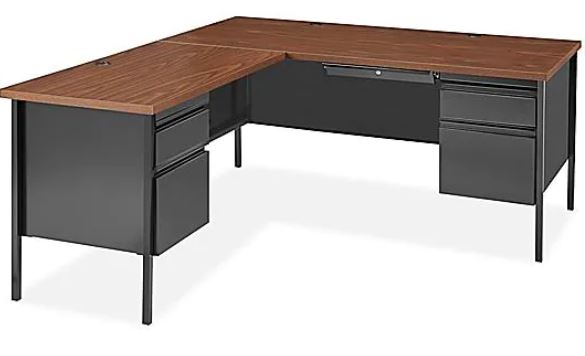

ULINE 66 X 72″ Steel L-Desk

PARTS

ASSEMBLY

NOTE: Use Phillips screwdriver to tighten screws.NOTE: Assemble on smooth, non-marring surface to avoid scratching.NOTE: Check that all parts are included.WARNING! Take care when handling metal parts. Sharp edges may cause injury.

Lock drawers. With two people, turn pedestal desk upside down.
Place open end of leg over alignment peg on bottom of desktop at corner. (See Figure 1)
Insert one leg bracket into corresponding slot in leg. (See Figure 2)NOTE: Bracket may flip up or down, depending on which leg user is installing.

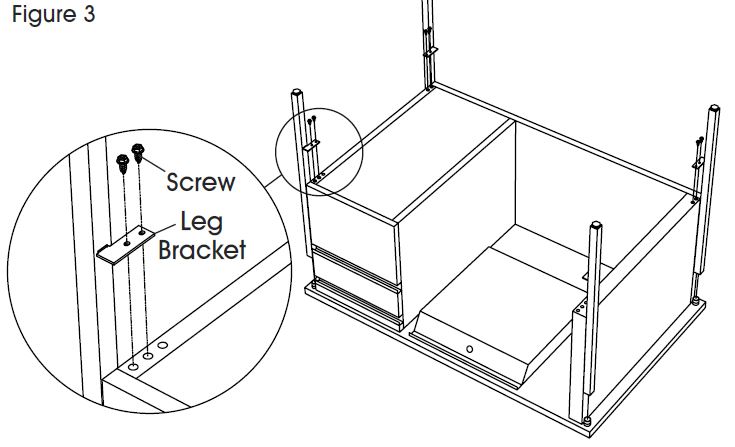

Align leg bracket with holes in pedestal file. Use two #8 x 1/2″ screws to secure. Repeat for remaining legs. (See Figure 3)
With two people, set desk upright and position in desired location.
With two people, turn return desk upside down.
Follow steps 2-4 to install remaining legs.
Remove filler block and discard. (See Figure 4)NOTE: Keep filler block screws for next step.

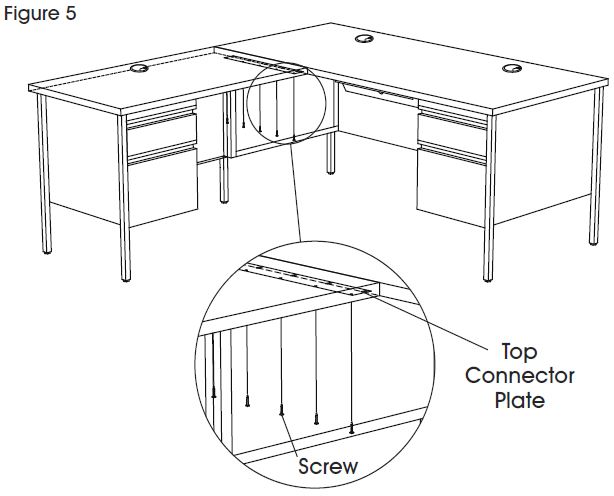

With two people, set return desk upright and position with top connector plate under assembled 30 x 66″ pedestal desk. Align holes and use five #8 x 3/4″ screws to secure. (See Figure 5).
Align bottom connector plate with holes in pedestal desk and return desk. Use two #8 x 1/2″ screws and one #8 x 1/4″ screw to secure. (See Figure 6)NOTE: Remove #8 x 1/4″ screw from bottom connector plate before you install it. Once bottom connector plate is aligned, use same #8 x 1/4″ screw to secure plate.
Adjust floor glides to compensate for uneven floors.
Place drawer dividers at desired locations in top drawers and insert grommets into desktop.
