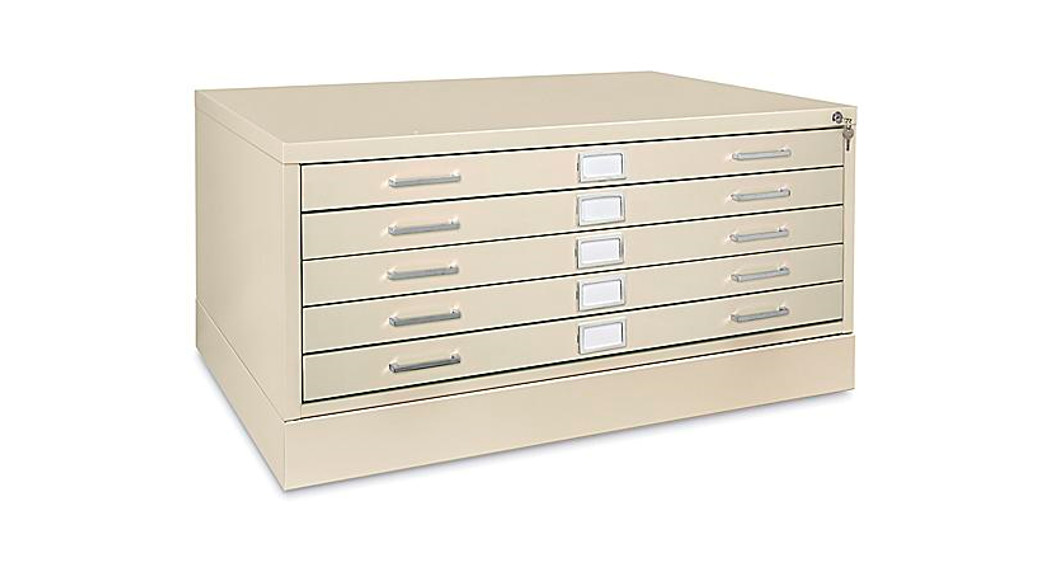

ULINE Flat File Cabinet Instructions

H-8796, H-8797FLAT FILE CABINET1-800 -295-5510uline.com

TOOLS NEEDED

PARTS

ASSEMBLY

HANDLES AND LABEL HOLDERS

1. Place the handle on the front of the drawer and insert two M4 x 6 mm handle screws with two M4 washers through the opposite side. Tighten using a Phillips screwdriver. Repeat for all drawers. (See Figure 1)
2. Attach label holders by pushing tabs through slots in front of the drawer and bending tabs on the back of the drawer toward the center to secure.

STACKING

1.  Remove bottom drawer (A) of the top unit and top drawer (B) of the bottom unit. (See Figure 2)NOTE: To remove drawers, pull drawers straight out and lift them up.
2. Remove knockout caps on top of the bottom unit.NOTE: Knockout caps can be removed using a flathead screwdriver and rubber mallet. Stand the flathead screwdriver on the knockout caps and tap the top of the screwdriver handle with the rubber mallet to knock the caps off.
3. Stack units and align holes at the front ledge of units.Insert M6 x 55 mm bolts into the top and bottom unit. Attach M6 nuts and tighten to secure.
